[project] Nothing To Do With 205's, But Behold!

[M3Evo 0]

He he, here's the bigun' with coke can comparison:







I want my other one now!

[tom_m 0]

Well, there's no going back now!



I've bought another turbo! This time it's a Holset HX27 which is good for around 230bhp on a petrol engine or so I gather.



Looks like that piccy up there isn't too far from being right too when you compare it to BMW's own effort:



I'm quite excited about this now, aiming for 450bhp and mountainous torque being available everywhere in the rev range.



Gonna order a forged crank, pistons and steel rods at some point too to make a 2.8 with a nice strong bottom end



you don't do things by halves do you!

[djinuk 2]

this project scares hell outa me dude

[M3Evo 0]

Should be fun, I drive like an old man anyway so it's really just bragging rights



Should really sort out the photos in the projects section soon shouldn't I?!

[M3Evo 0]

Well, I've gathered up the turbos and modelled them in a 3D CAD package (don't all laugh at the compressor housing of the H1C!)



And have spent countless hours trying to figure out a way to get them both in with the requisite divertor valve in place. Think I've cracked it from a packaging point of view (I made up some 1:1 paper mockups and they seem to fit in) although the pipework could still use some smoothing I'm sure.



Not shown (cos I've not drawn it yet) is the pipe that runs from the exducer of the HX27 to the far side of the divertor valve, although that's what the big target shaped thing is there to mount.



Your thoughts and comments appreciated





[Mandic 0]

Looks very good!



Can't see from the pic, but are both turbos twin scroll?



Or will You run first one with merge collector design and the other with split pulse?



This might be very thicky to pull off.



Cheers



Ziga

[tom_m 0]



can't wait to see you putting it into production!

[M3Evo 0]

Hey Ziga, how's it going?



Only the big one is a twin scroll. I'd thought in that design that it would be a good idea to keep the manifold as a split pulse type thing to help with spooling of the bigun.



However, it now occurs to me that I could make use of a simpler log style manifold as I'll have the low end boost taken care of by the little turbo.



I'm getting quite excited about it too now (although it's a lot of fabrication and an engine build away)

Edited February 21, 2007 by M3Evo

[Mandic 0]

Hehe, I know, that's why I asked, it would be great to see it have split pulse, I recon they are quite efficient but You are right, smaller one might just do the trick,



Cheers



Ziga

[M3Evo 0]

If it weren't for the fact that the turbos can't be located half way along the engine, split pulse would be relatively easy. As it is though, the suspension turret means that they need to be quite a lot further forward.



Such is life I guess, and BMW have managed to get away without split pulse so I'm hopeful

[sonofsam 5]

Dude! What more can one say



If you need any more bitty bobs spun, dont hesitate. Looks like you have it well under control though

[M3Evo 0]

Wouldn't be able to do some bits which translate from a rectangular shape to a round could ya Sam? Gonna fabricate a chargecooler to sit over the engine so I'd need six No. translators in total.



Anyway, here's the log style manifold:





It was just SO much easier to package like that!



The valve is more compact and the routing of the HX exhaust gas to the H1C inducer will be considerably easier now, as will adding in the external WG for the H1C.



I'm quite excited about this design, it seems the neatest and easiest to manufacture. I'm just a little worried about it's ability to flow for decent power.



What do people think?



Cheers!



Alex

[welshpug 1,622]

that looks a pretty funky setup, electronic wastegate control?

[M3Evo 0]

It needs three valves to control it all, one is shown in the piccy (that rectangular block) there will be a conventional external wastegate and finally there needs to be a valve in the inlet system.



I'm hoping to be able to get the Emerald to control them all so as to enable me to program out some of the mechanical errors I'm bound to have made

[M3Evo 0]

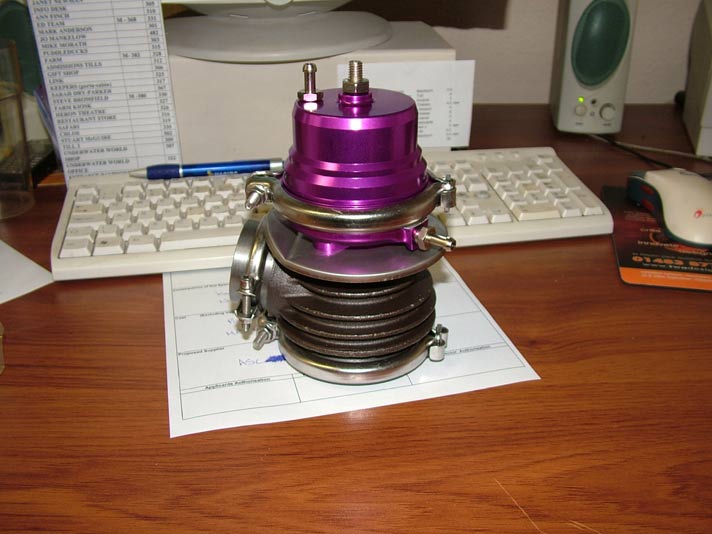

Yay! Wastegateage!



Mmmmmm, generic and non-branded



[Mandic 0]

They are ridiculously expensive, nice buy, must get my hands on one as well.



Cheers



Ziga

[M3Evo 0]

They can be expensive, but there seems to be a feeling amongst a lot of people that the expensive ones burn out just as quickly as the cheap knock-offs.



That one was £80, although I'm happy enough that I'll be able to make replacement parts for it should the need arise.

[M3Evo 0]

Finally! Some piccies



Here's the turbos and wastegate:



Here's some of the bits for the large turbo's collector:



Here's most of it tacked together:



And from another angle:



Here's the outlet to the little tubby, it's as streamlined as I could make it



And lastly the little HX27 mounted in the car:

[tom_m 0]

looking good

[mickie 3]

nice

[M3Evo 0]

Hooray! A little bit of progress over the weekend:



Made the other side of the large collector:







Made up the transition piece from the divertor assembly to the T3 flange:









And here's the whole lot assembled together.





The flap is to be housed within the middle two of the four plates half way up the assembly. I've done it this way so that it can be easily removed if (when) it goes wrong.



Next thing to do is to cut a hole in the top of the log so this tree type thing can be welded in place along with the internal channels.



Incidentally, for anyone wondering, you can get a 2 1/2" piece of tube to very neatly match the hole in a T3 flange if you crush the tube to match the long sides, tack them in place, then crush the tube to match the short sides and tack them in place. That leaves the corners a few mm out but now it's all rigidly tacked in place, you can just drift them into position, shrinking the metal as you go. Very neat and tidy

[tom_m 0]

modular! i like it



looks like you're progressing well

[Mandic 0]

Incidentally, for anyone wondering, you can get a 2 1/2" piece of tube to very neatly match the hole in a T3 flange if you crush the tube to match the long sides, tack them in place, then crush the tube to match the short sides and tack them in place. That leaves the corners a few mm out but now it's all rigidly tacked in place, you can just drift them into position, shrinking the metal as you go. Very neat and tidy



aha, very nice...was wondering myself how this is nicely done without purchasing a very expenives one.



Good work btw



Cheers



Ziga

[phatgti 0]

Is the plate for the collector thick enough to widthstand the heat?

[M3Evo 0]

Cheers chaps



The tube's 1.6mm thick 304 grade stainless and the flanges are all 304 10mm thick. Should be alright I reckon. Not had any probs with the current setup anyway
