[engine_work] Mi16 Engine Bay Tidy & New Head Fit !

[chris 417 mi 27 2 Cars]

Been wanting to sort my engine bay out for years but never had the time/tools/ courage to start taking thigs apart !



Last year i did my first mi conversion on another car so now its my blue pugs turn !

I didnt fit this engine it was done for me by a local garage about 5 years ago, the throttle bodies were also fitted for me and the current big valve head again fitted by a certain company whom i wont mention but am not very happy with, as it has never give the power it was supposed to .....but never mind cos i have a new standard head with cat cam on the way from QEP



made a start last sunday and here's the progress so far :

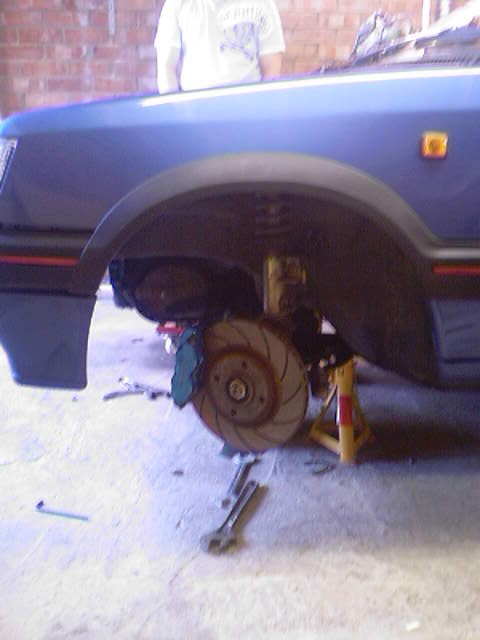

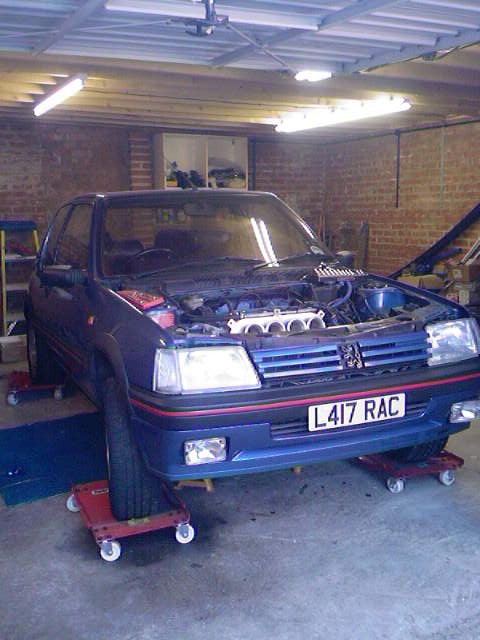

Bonnet off and on axle stands

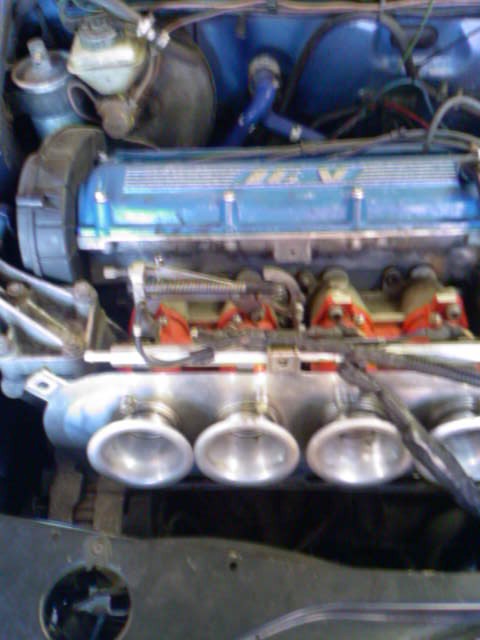

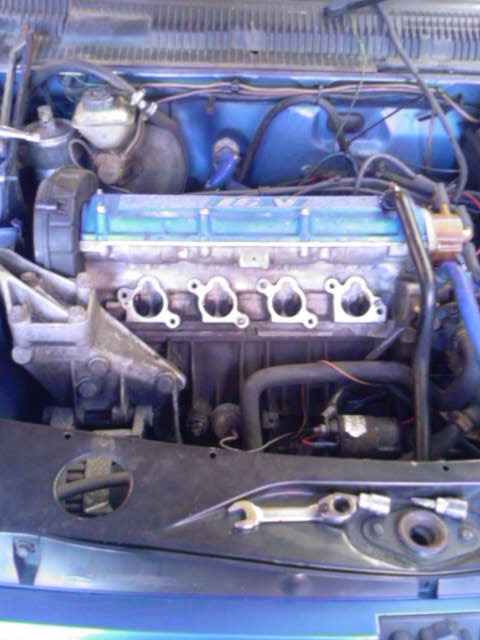

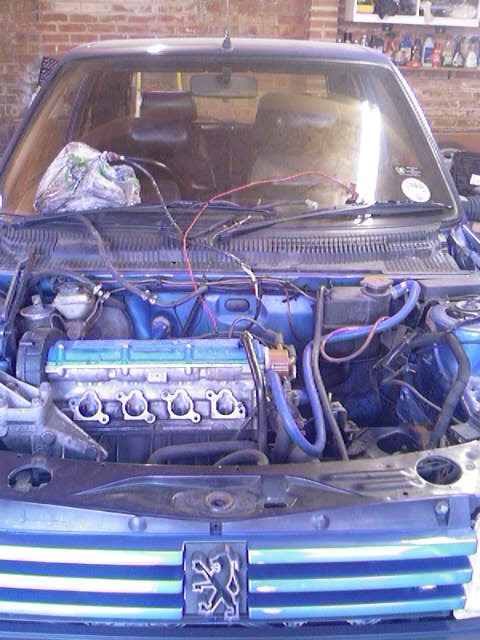

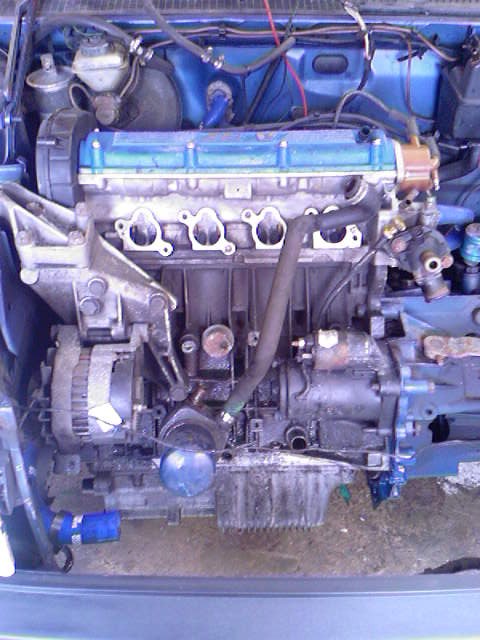

starting to strip throttle bodies out, lots of parts to keep together !!

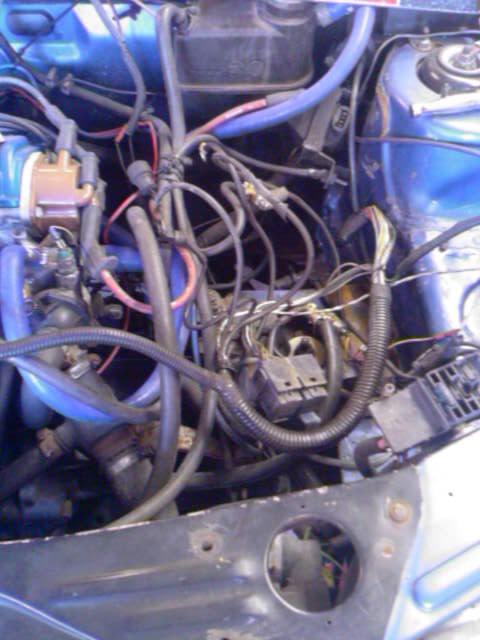

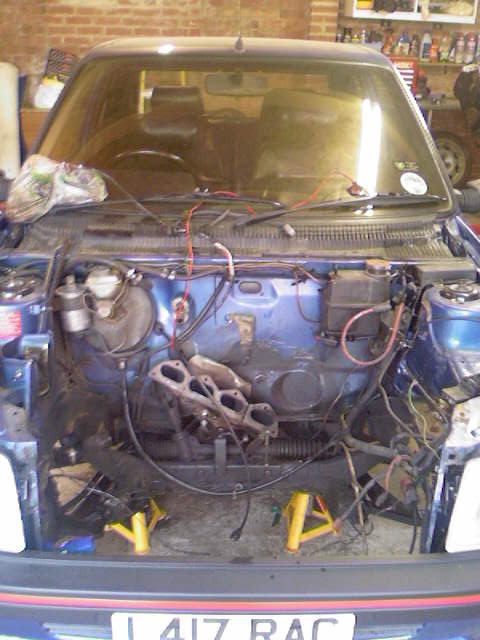

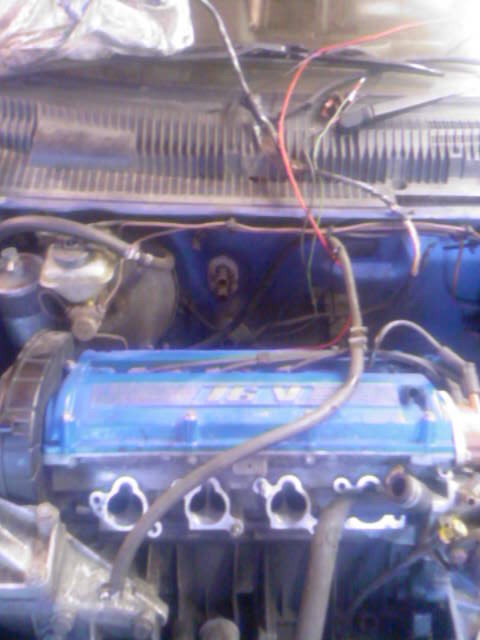

All the wiring

Edited April 12, 2007 by chris 417 mi

[chris 417 mi 27 2 Cars]

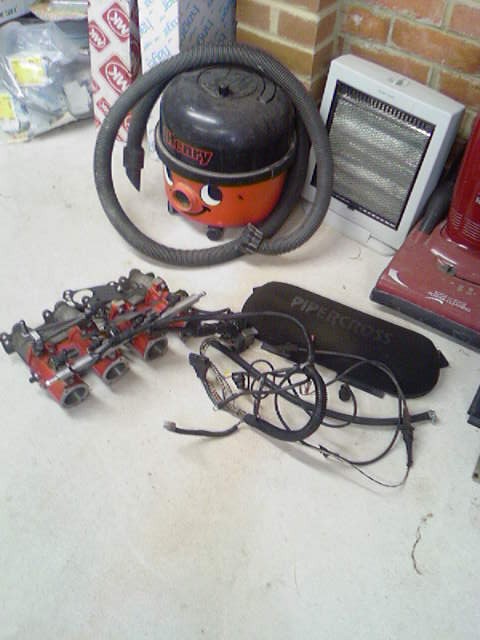

Bodies out with henry looking smug

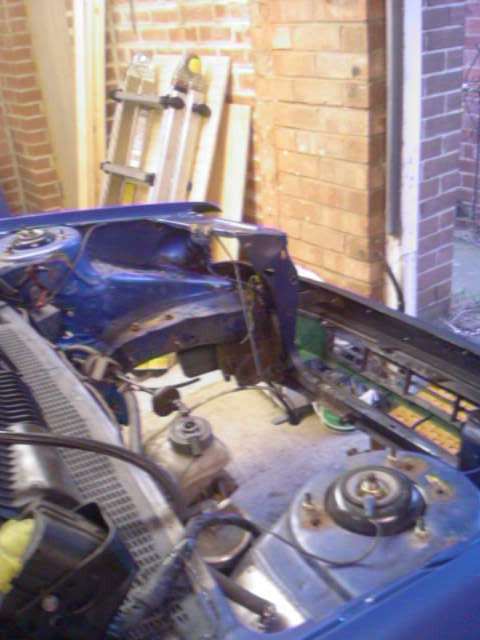

All that free space!!





And again

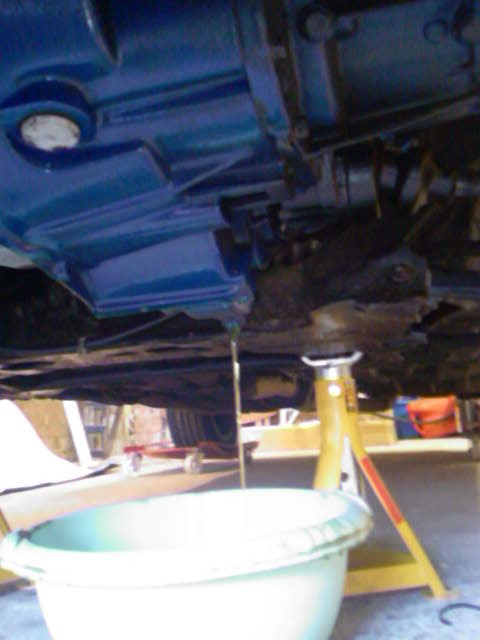

draining oil to remove shafts, Pain to remove drain nut when your gear box was powder coated , nice and easy to clean though



[chris 417 mi 27 2 Cars]

Getting driveshaft ready to come out





And the other one, sooo easy with an impact gun, best thing i ever bought

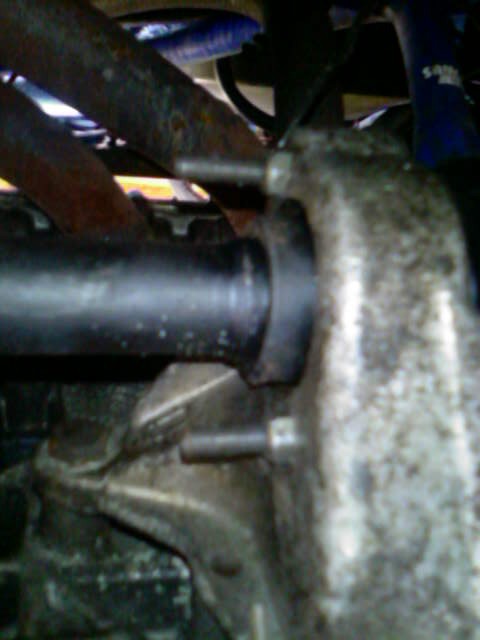

These shouldered bolts on the longer drivers side shaft hold the middle bearing in, i tightened them 'open' so they dont get lost and are well out of the way whilst removing the shaft





Now for the radiator, i took all the higer pipes off first then carefully drained the water out of each pipe working highest to lowest at the front of the engine (still got water everywhere though ) best leave the rear colant union at the back of the block till all fron pipes are off and theres less chance of gettin soaked where you cant get out quick





All pipes now out ! gotta start on the gear linkages and finally the dreaded exaust manifold





Oh and does anyone have any ideas how i should lift this out ...bearing in mind someone has kindly decided to remove all the lifting eyes from the block

[kyepan 291]

are those nissan calipers?

[chris 417 mi 27 2 Cars]

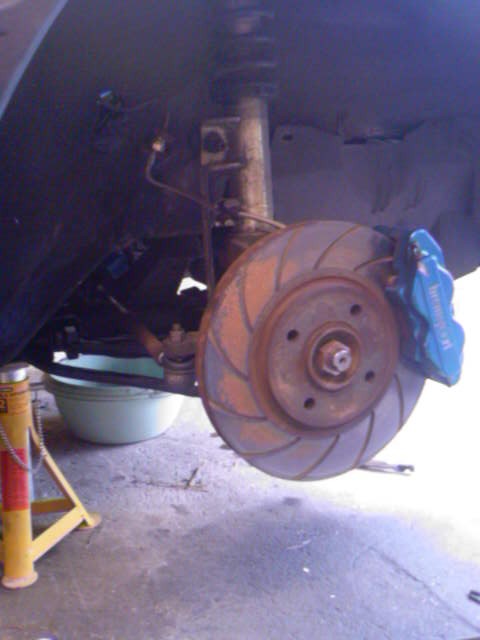

nope bremsport mate, got em off a lad who had them on a 205 rallying / track car

[chris 417 mi 27 2 Cars]

Ok the engine & exhaust manifold are now out ! didnt manage to get any pics of it during removal but heres what i did get

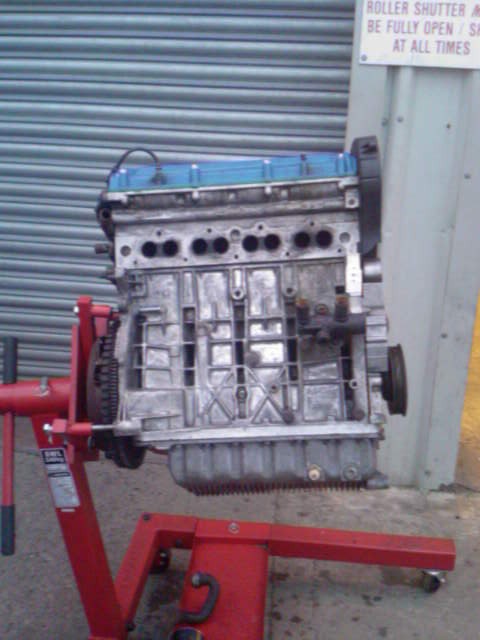

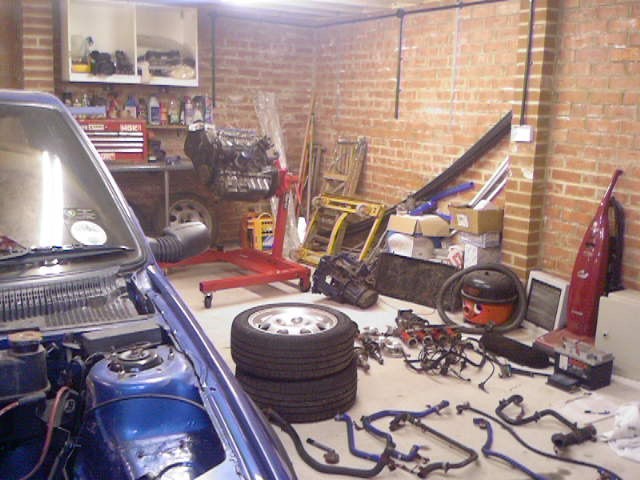

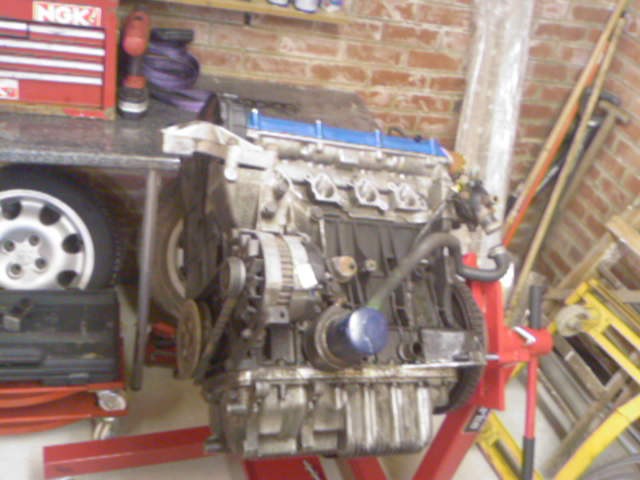

Engine on stand and the small mountain of parts ive removed so far

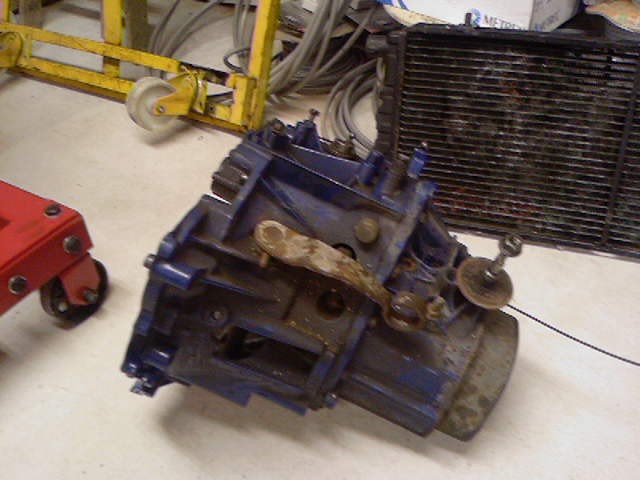

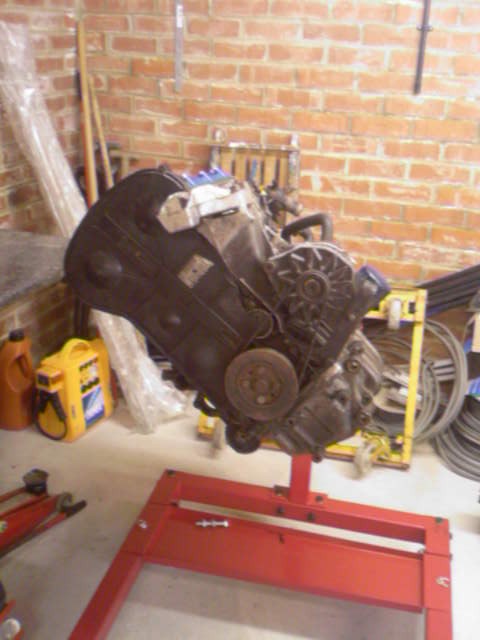

Gearbox needs a good clean !





Engine needs a good clean, would of liked to get it powder coated but would mean a total strip down , painting will do for now

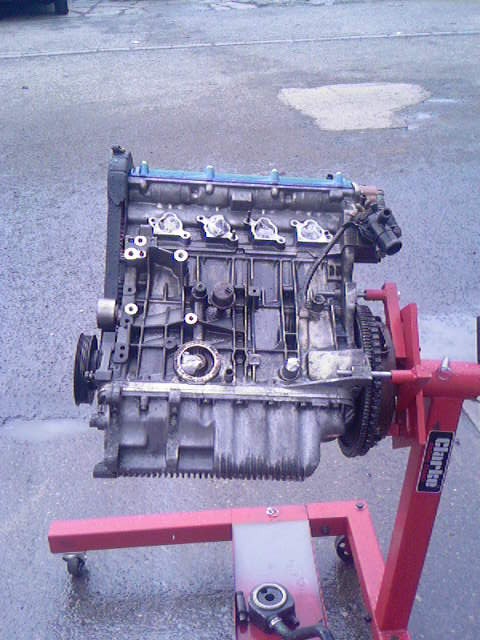

and again

[chris 417 mi 27 2 Cars]

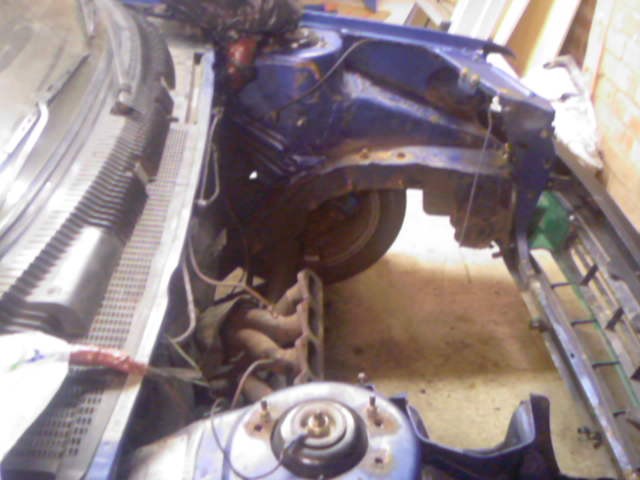

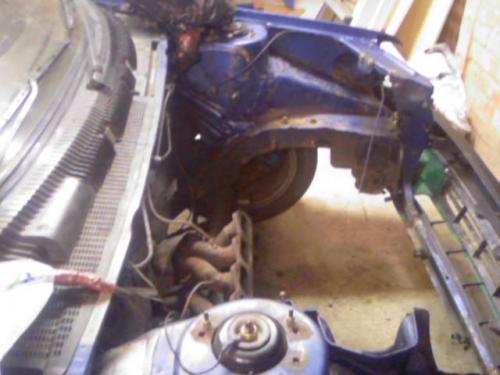

Lots of rust to see now, gonna have the full bay painted and rust treated





and again on closeup





Looks like waters got in here too

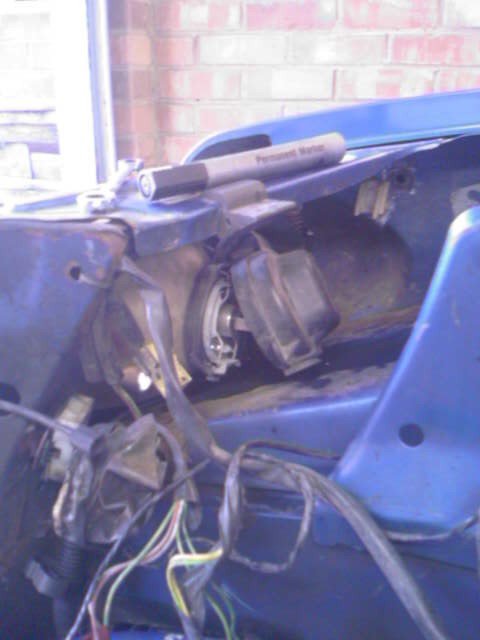

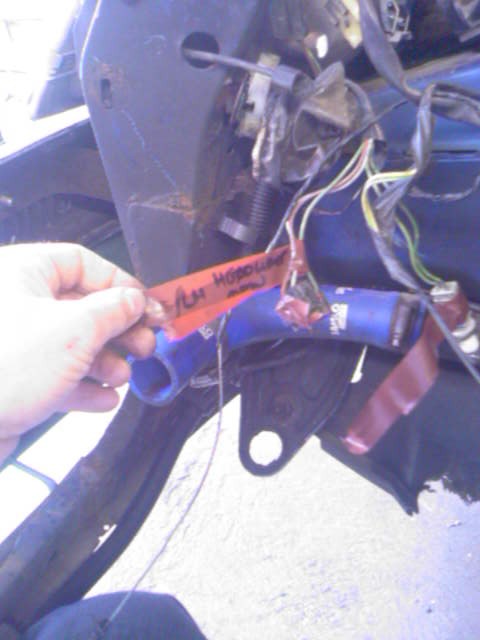

Part of the alarm wiring looks like it was joined by ...err.....twisting together and a bit of luck

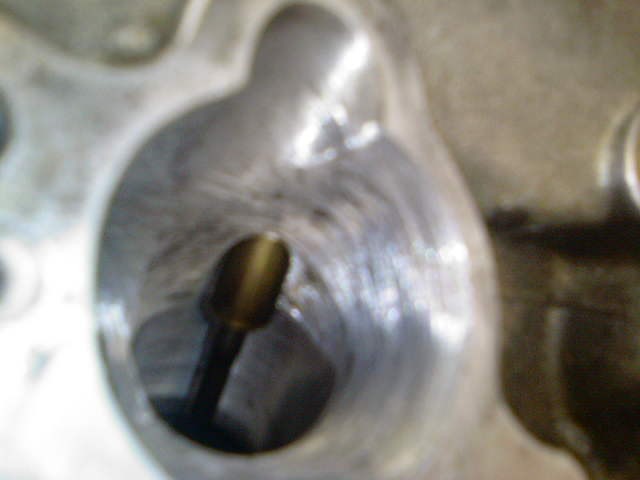

One of the inlet ports, apparently 'ported' but isnt this supposed to be very smooth ?? looks like it was done with a rough flapper wheel

Edited April 15, 2007 by chris 417 mi

[chris 417 mi 27 2 Cars]

just about done for the night, all wiring out of the way ready for painting. Got a few more pipes to move though





And final shot for the night, sorry for the blurryness



[Edp 67 3 Cars]

Looking good. A nice late car you have there.



Keep the pictures coming. By the way where on earth are going to fit a henry hoover in the small 205 engine bay?

[chris 417 mi 27 2 Cars]

Looking good. A nice late car you have there.



Keep the pictures coming. By the way where on earth are going to fit a henry hoover in the small 205 engine bay?



havent you heard ?? he got voted best co pilot ever

[Richie-Van-GTi 70 2 Cars]

wahey, about time chris. Think mine will be done before yours. By end of this week I will have everything required to finish mine

[Mikey G 3]

One of the inlet ports, apparently 'ported' but isnt this supposed to be very smooth ?? looks like it was done with a rough flapper wheel



Thats normal, rough surface adds to the mixing of the fuel/air.



Keep it up

[chris 417 mi 27 2 Cars]

Thats normal, rough surface adds to the mixing of the fuel/air.



Keep it up





Ah right, i always thought it would be polished to a fairly smooth finish



Cheers

[5150maxie 0]

the number plate says it all

[chris 417 mi 27 2 Cars]

the number plate says it all



strangely enough a few rac people have asked to buy it off me

[chris 417 mi 27 2 Cars]

Did a bit more last night ready for the weekend

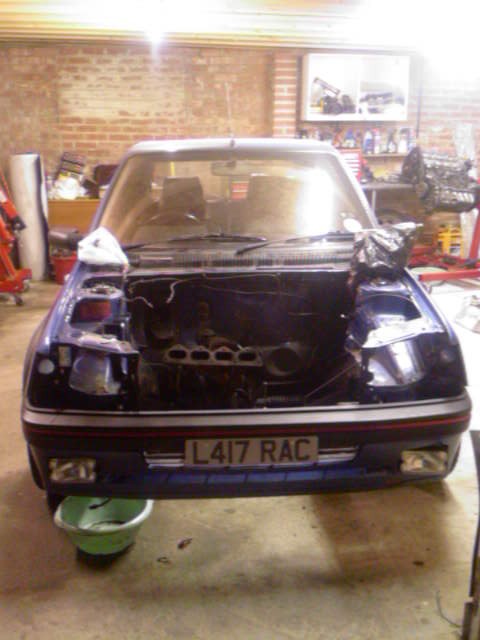

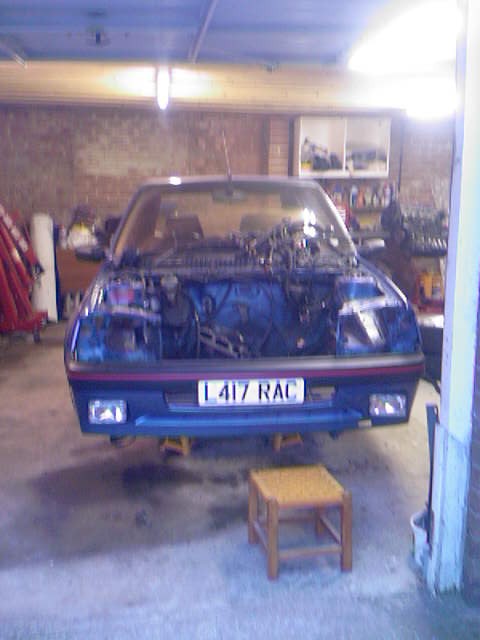

Engine bay is now totally stripped and ready for painting !





side view (gotta get a better camera phone )

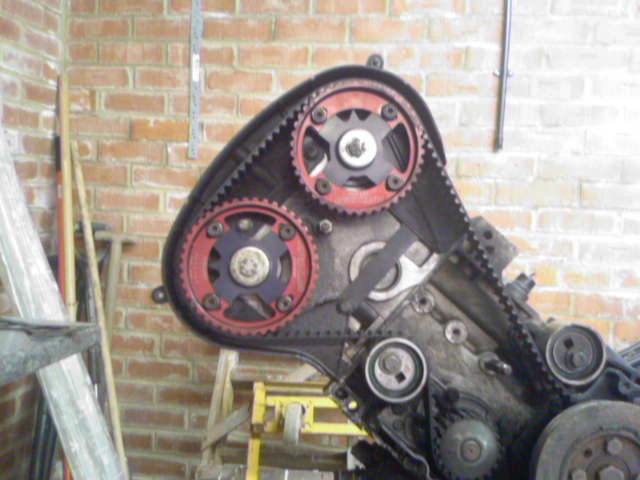

View of the cams, funny thing is the timing marks are way off ! inlet cam is almost exactly on the white timing mark someone has put on ...but the exhaust cam is almost a quarter of a full revolution out anyone shed any light on this cos ill be taking the head off very soon !

Edited April 19, 2007 by chris 417 mi

[petert 550]

The cams were probably timed using the lift at TDC method. Timing marks can become irrelevent when aftermarket cams and pulleys are used.

[chris 417 mi 27 2 Cars]

right ok , err guess id better get someone who knows how to retime the engine when its going back together then

[welshpug 1,622]

just set it to TDC with the crank pulley locked and put some timing marks on the cam pulleys and you should be able to get it pretty close.

[petert 550]

just set it to TDC with the crank pulley locked and put some timing marks on the cam pulleys and you should be able to get it pretty close.



Locking the crank pulley is 90 deg. BTDC, pistons half way up and half way down.

[chris 417 mi 27 2 Cars]

All i was gonna do was just remove the belt as it is now clean and pain the engine then take it somewhere to get timed, unless anyone can show me the extact points etc cos i really dont want to bugger a new head !

[Gavtrials 0]

So jelous of the double garage!

Wish i had that and not just a drive to work on!

[chris 417 mi 27 2 Cars]

So jelous of the double garage!

Wish i had that and not just a drive to work on!





[Richie-Van-GTi 70 2 Cars]

chris I'll come down one night during the week and show you how to time it with the new head, well enough to get it running. Timing wont be bang on as your having new cams with different durations and lifts.

[chris 417 mi 27 2 Cars]

Cheers mate thanks for the help on sun morning too !



Some more pics





Off to the spray shop on sun morning (once again cheers to richie for the tow )





And again





Engine block starting to get a good jet wash down





Rear now as clean as i could get it with the time i had
