I bought a cage off baz a while ago second hand.



Rather than pay AB Motorsports rip off price of £86.50 delivered for mounts I will make my own.



Its a 6 point BOLT IN, rather than the weld in cage.



If anyone can give me measurements/pictures would be very greatful.



Ed.

[Miles 331 1 Cars]

I'd make my own to the latest blue book Reg's. the SD one's I think are too small

[EdCherry 34 1 Cars]

Anychance you have a blue book Miles?



Somehow I doubt this car will ever go further than being a fun little track car, unless you know of something I can put it to use with that isnt gonna cost me both my legs and a left arm.

[Cameron 16]

I think I have the measurements somewhere, I'll see if I can dig them out.

[EdCherry 34 1 Cars]

Thanks cameron, would be very grateful! Lets hope I get the engine started and can move onto operation clean up soon!

[kb_205 11]

I think I have the measurements somewhere, I'll see if I can dig them out.



i am in exactly the same position! i sourced a secondhand one in great condition for 100 pounds incl removable door bars,



its ready to fit ASAP as last winter scared me a bit! lol



if you have the measurements could you let me know pls,



cheers





keiran

[Baz 421]

I think I have the measurements somewhere, I'll see if I can dig them out.



They'd be handy... i'm sure i asked for them months ago!!

[timb1046 1]

i have a c44 (i think) cage, im not sure of the differences in the cages BUt i do have the mounts still as i havnt got round to fitting it so can give measurements and pics if they're the same... i doubt they will be though

[Cameron 16]

Doh, sorry Baz! My heads a bloody sieve at the best of times so I need constant reminding.

Im not back home til Sunday so I'll dig around for them then. Should be in my big book of 205 stuff.

[Baz 421]

Cheers dude that'd be good.



The front of the C12 will be slightly different as the legs come down in a different place to the C44 & Cam's weld-in C45, but same principal, will just have to be profiled differently at the sills, B posts similar though, and again rear stays different as the C44 mounts to the beam rather than boot floor.

[Cameron 16]

Mkay, found them. I only have the front, mid and strut tops, no measurements for the rears.



Will have to figure out some way of getting a pic of them up, should have them tomorrow evening.

[welshpug 1,622]

Here's some pictures I found





the main shape of the plates I've seen are pretty similar, but do bear in mind that these are for a weld in cage not a bolt in.

[Miles 331 1 Cars]

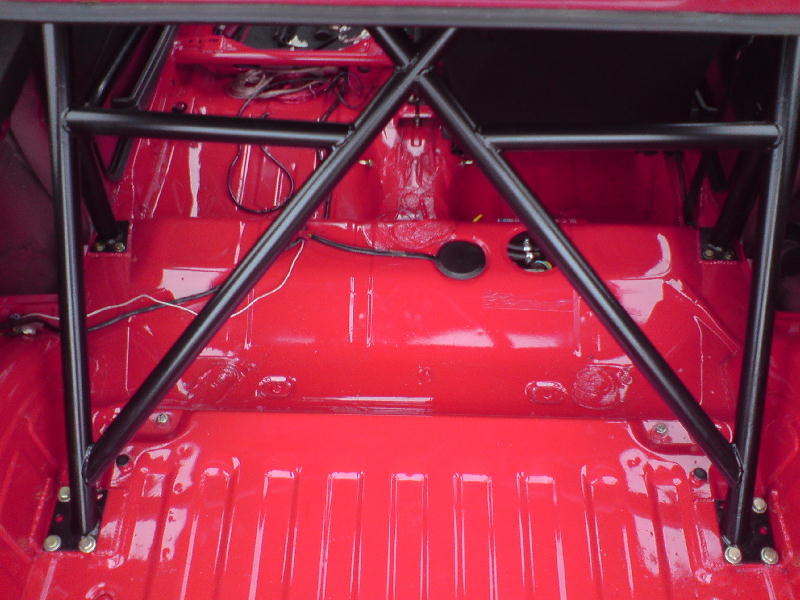

The bolt in is completly different as seen here, you can just see how small the plates are which come supplied

[welshpug 1,622]

thos look VERY different!! though a doddle to replicate

[Anulfo 22]

205 challenge spec cage there miles??

[Baz 421]

205 challenge spec cage there miles??





Nope, looks like an adapted, added-to C12, C44 SD's are challenge spec ones. Rear stays pick up off the rear beam.

Edited December 7, 2008 by Baz

[Cameron 16]

I mean a pic of the measurements, I could give a list but it might be a bit confusing.



Wow, the plates for that bolt-in cage are pretty small!

[Cameron 16]

Mkay, I knocked up some drawings of the mounts as a net (unfolded). I could only do the fronts for now as I don't have some of the dimensions for the others, I'll have to get those at the weekend as its too dark / cold when I get home from work.



[Miles 331 1 Cars]

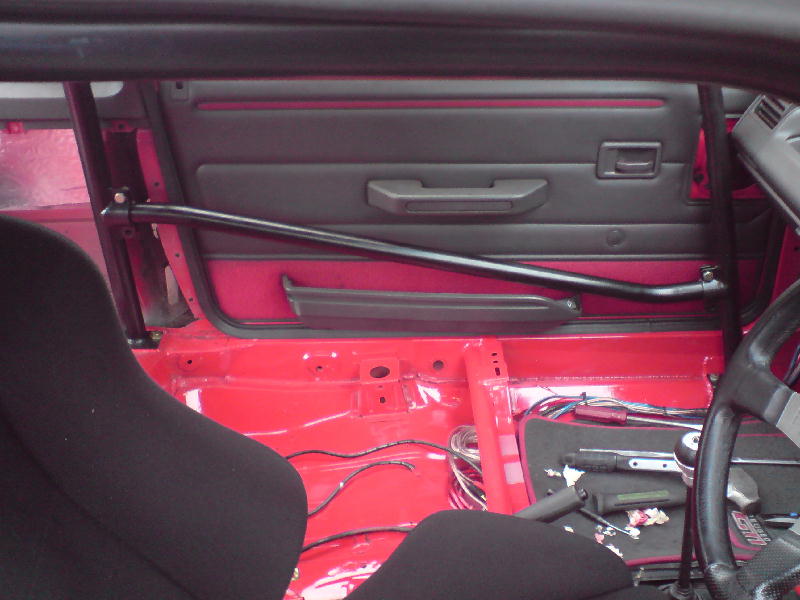

Baz is right, It's the std bolt in cage C12 I guess with a extra brace and harness mount's added as I will not supply a car to anyone using the 205 floor pan as a mounting point, to the extent of not even using the std 205 seat point's as mounting area's as if you see what can happen you would never want to in a million years

[EdCherry 34 1 Cars]

Thanks for the pics miles, as always. Mine looks like a slightly different mount on the front to that (baz confirm?) as it sits on top of the sills... liking the harness and extra brace on that miles, I think we should have a quick chat

[philfingers 5]

I've got a C44 in my car, can take some pics tomorrow.

I pulled the SD cage out of my 309 and was going to refit it in a better shell. Anyway I just took the cage down to my local blacksmith and he made/ cut some plates up to fit under the feet. They didn't drill holes or fit captive nuts but for £20 for 6 plates I wasn't too bothered!

It's probably the easiest and cheapest option.

I think they need to be 3mm and cutting 3mm and bending it with out proper kit is a non starter anyway.

[daveyboyblack 1]

Am keen to see the pics of the C44 as it's what i'm currently looking at getting for my mi

[philfingers 5]

some basic pics here. Working on the car tomorrow so will try and get you some pics of the cage install



http://s188.photobucket.com/albums/z143/oi...%20Rally%20Car/

[philfingers 5]

few pics here of the mounting points, sorry they're not too good!

http://s188.photobucket.com/albums/z143/oi...%20Rally%20Car/

[Baz 421]

Here's some stuff i've gathered.



C12 Plates;





http://i49.photobucket.com/albums/f255/205...cageplates2.jpg (not sure why this particular cage doesn'r have it's own feet itself also! )



http://i49.photobucket.com/albums/f255/205...cageplates3.jpg



Am keen to see the pics of the C44 as it's what i'm currently looking at getting for my mi



C44; (courtesy of Ben/Bonzai )





http://i49.photobucket.com/albums/f255/205.../Image134-1.jpg



http://i49.photobucket.com/albums/f255/205.../Image138-1.jpg



http://i49.photobucket.com/albums/f255/205...13032008240.jpg
