Door Pins

[scumbag 0]

I am going to use bolts in place of door pins as my useless local dealer says they can not source any more!



What mm bolts should I use? I am going to get plain bolts with a little thread on the end made of non hardened steel so they dont wear the hinges at all.



It will be nice to be able to close the door without lifting it and for the gti trim to be in line again!





Also, I can't manage to link my exterior handle to the link rod in the door. Any easy way to do this?

[Pugnut 9 1 Cars]

there are 2 types of pins = roll pins and torx head screw . which do you have ? autofive should be able to sort you out surely?

[scumbag 0]

Am not sure I just asked for ones off a phase 1.5 F reg. They have little plastic caps sat in the top so I am guessing roll pins?



Does that mean i can go to b&q and buy a pack of roll pins as they do like boxes of 50 various ones!

If so what mm will I need?

Edited January 2, 2007 by scumbag

[Richie-Van-GTi 70 2 Cars]

Im about to order some myself from wherever sells them, just kncked mine out. This is how they came out.



Slightly beyond useability.

[Richie-Van-GTi 70 2 Cars]

forgot to say http://www.screwfix.com/app/sfd/cat/pro.js...3&ts=38959#

[futura 3]

I bought door pins from Peugeot 3 weeks ago!

[scumbag 0]

I bought door pins from Peugeot 3 weeks ago!

It wouldn't surprise me but my local dealer is total junk, overpriced and doesn't bother with little things like this.



What size will I need as theres a really good shop which sells these singularly. The ones on ritchies link appear in the size 5 x 40mm etc. What size do I need?



ta!

[Richie-Van-GTi 70 2 Cars]

hmm, measured mine and get 7x50 , obviuously thats compressed and rusted away. Futura have you fit yours yet? Any chance you can measure them? I suspect 8x55 will do the job.

[de Noir 0]

I bought door pins from Peugeot 3 weeks ago!





Me too! Maybe you should change your friendly Peugeot dealer?

[skeggyrik 3]

How much were they from Peugeot guys?

[welshpug 1,622]

part number too guys! my dealer couldnt find them on the system!

[Super Josh 4]

part number too guys! my dealer couldnt find them on the system!





Should have done a search From one of my earlier posts





Early drift type 9044 31

Late screw type 9044 34



Only a few pence from Pug too



Josh

[Guest smokinslim]

If the screw type are the same as on the 405 i have a bag of them going spare.

[welshpug 1,622]

If the screw type are the same as on the 405 i have a bag of them going spare.



i'll have them for my mum's 405 if they are the right ones, I'll whip one out of her car next time i'm up there.



just ordered some rollpins, £2.54 each plus vat, they actually had one on the shelf but i'll wait till the other 3 come in before paying for them

[Guest smokinslim]

lookin at my list the part no for the 405 ones is 9044 30 so maybe not the same as the 205 ones. Definately 405 8/90 onwards. The quantity on the bag states 5 but i've got 9 for some reason. Will dig out my calipers later and get some dimensions for you.

[futura 3]

Sorry I didn't come back on this thread earlier.

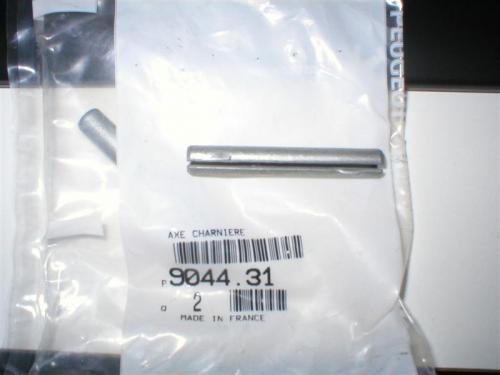

The door pins from Pug are 49mm long and roughly 7mm diameter. Part # is 9044.31 and they are £2.42 for the pair +VAT.



Pic attached

Edited January 5, 2007 by futura

[scumbag 0]

I bought some today at the local fastener supplier. He said they only did them in 6 or 8 x 60, and he had a look at the existing pins and said the best bet was 6mm. Ah well, only a quid for 4 :D

[welshpug 1,622]

Sorry I didn't come back on this thread earlier.

The door pins from Pug are 49mm long and roughly 7mm diameter. Part # is 9044.31 and they are £2.42 for the pair +VAT.



Pic attached



aaah! good thing you mentioned that Futura, the guy seemed to think they came in packs of 5

[Simes 248 2 Cars]

I've had a set of these for 6 months now waiting to go on the car.

[futura 3]

I've had a set of these for 6 months now waiting to go on the car.

You're beating me, I've now had mine for a month

[KRISKARRERA 2 1 Cars]

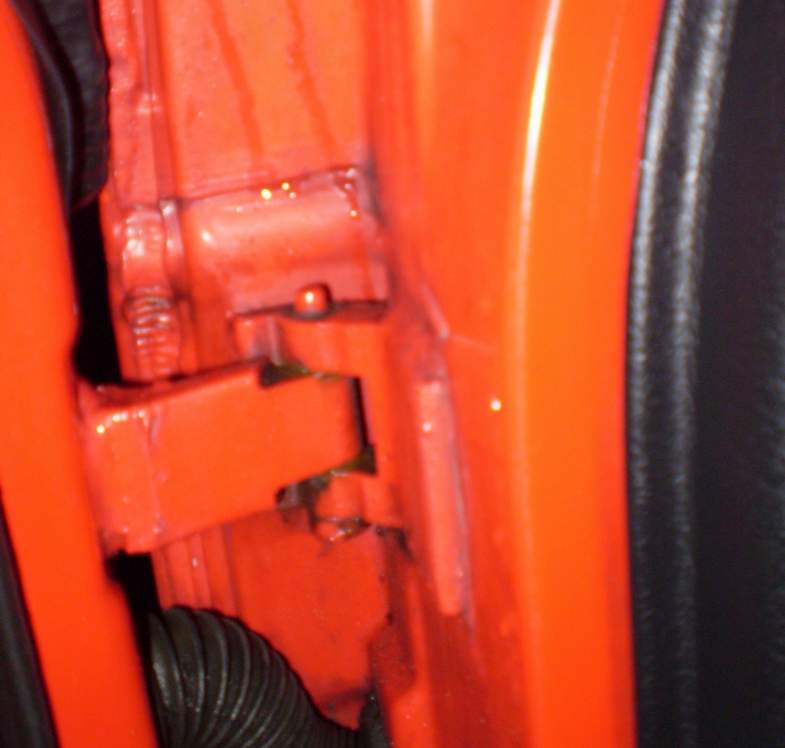

How hard are they to fit? And be honest, it looks like a right bitch to do.

[KRISKARRERA 2 1 Cars]

Is mine pins?

[welshpug 1,622]

yup, unless you've hidden the torx head.

[scumbag 0]

How hard are they to fit? And be honest, it looks like a right bitch to do.



I'll let you know tomorrow! Haha. I am doing mine in the morning. Shouldn't be too hard if you have a helper!

[welshpug 1,622]

a long enough drift and a lump hammer...
