Mi16 ecu pinout diagram

[5150maxie 0]

I am after ecu pinout diagram for a mi16 ecu code 0 261 200 125 ?

thanks

[SRDT 146]

2 row 35 pin ECU, ML4.1 Motronic.

On 2/8/2024 at 10:20 PM, SRDT said:

The ML4.1 pinout is here:



A bit about the BX with the same engine and ECU, in English:

https://bx16valve.com/wp-content/uploads/2015/06/Fuel.pdf



And a bit about the 405 but it's in French:

http://koinkouinou.free.fr/Moteur injection XU9J4.pdf

[petert 550]

Or here:

[5150maxie 0]

17 hours ago, SRDT said:

2 row 35 pin ECU, ML4.1 Motronic.



Thanks  bud finally sorting it

[5150maxie 0]

8 hours ago, petert said:

Or here:

Cheers bud

[5150maxie 0]

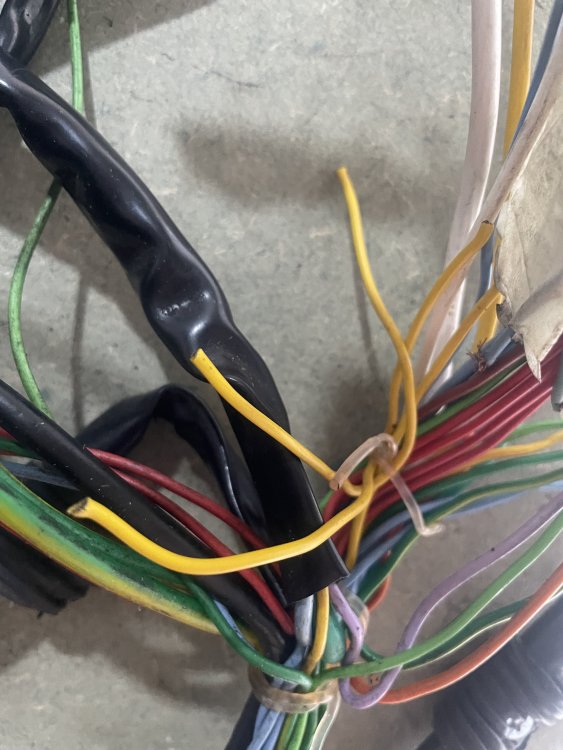

Any chance anyone knows where these to yellow wires go they were tucked in bent round ?

The mi16 loom I’ve got has been chopped near the harness plug so I trying to see where the wire go
