1.6 GTI static timing

Recommended Posts

MJS

Howdy,

The car E reg 1.6 GTI

It's not run for a few years...



So far we've changed the cam belt, aux belt, HT leads, and dizzy.

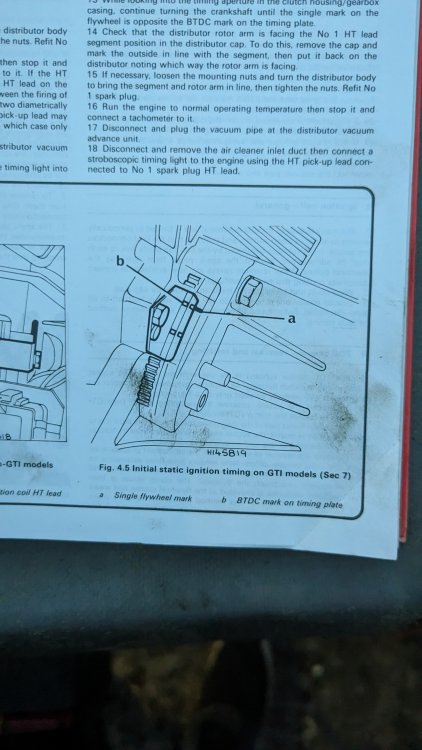

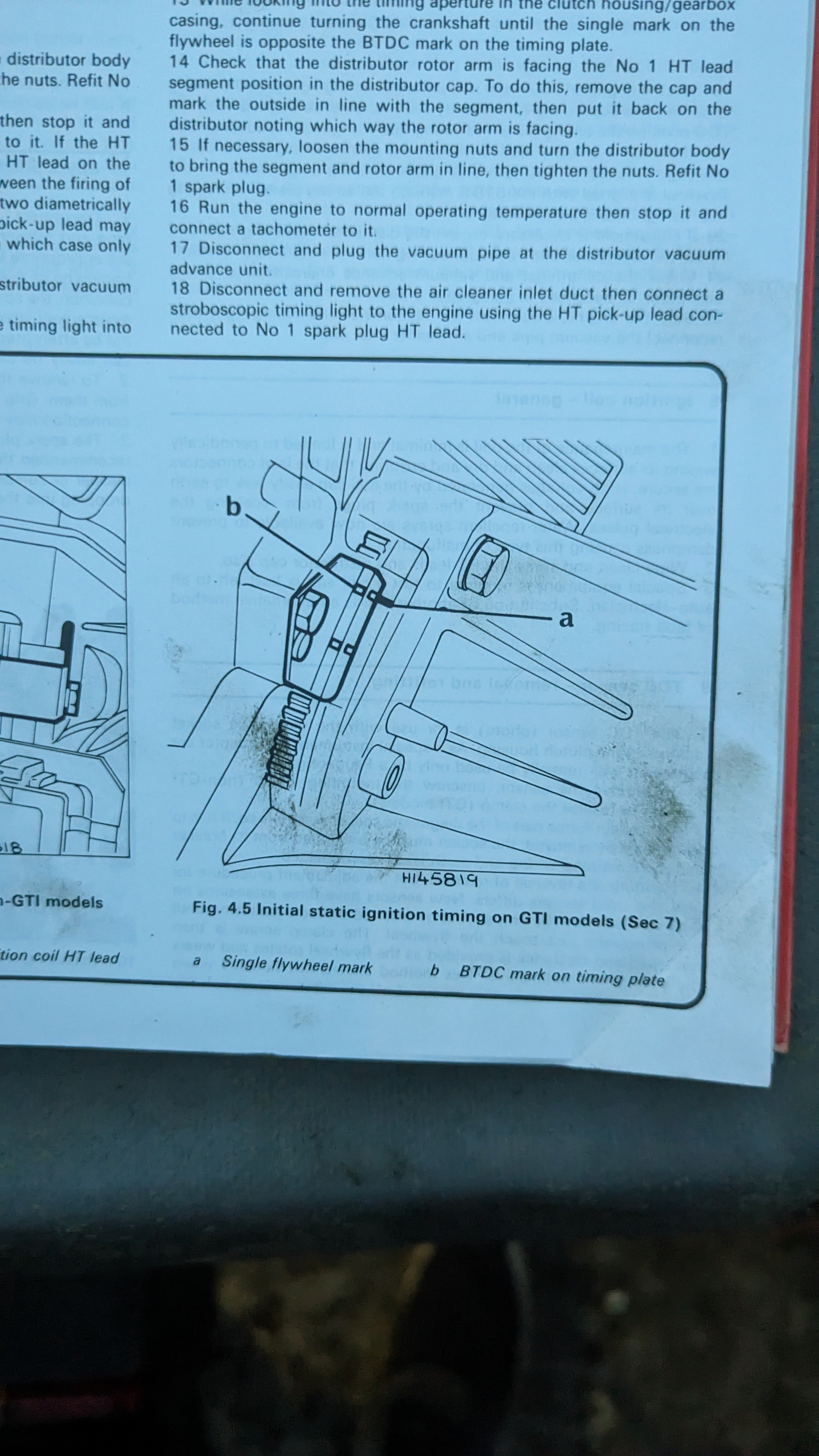

I want to set the ignition timing, the Haines manual has a lovely hand drawn diagram for setting the timing (pic attached). The problem is I cannot see where this is in the engine bay.



It's the flywheel, I've found the solitary mark on the flywheel on the underside of the engine with the cover removed, where you lock the flywheel to do the belts. But where does it line up to?



Cheers!


Share this post


Link to post
Share on other sites
petert

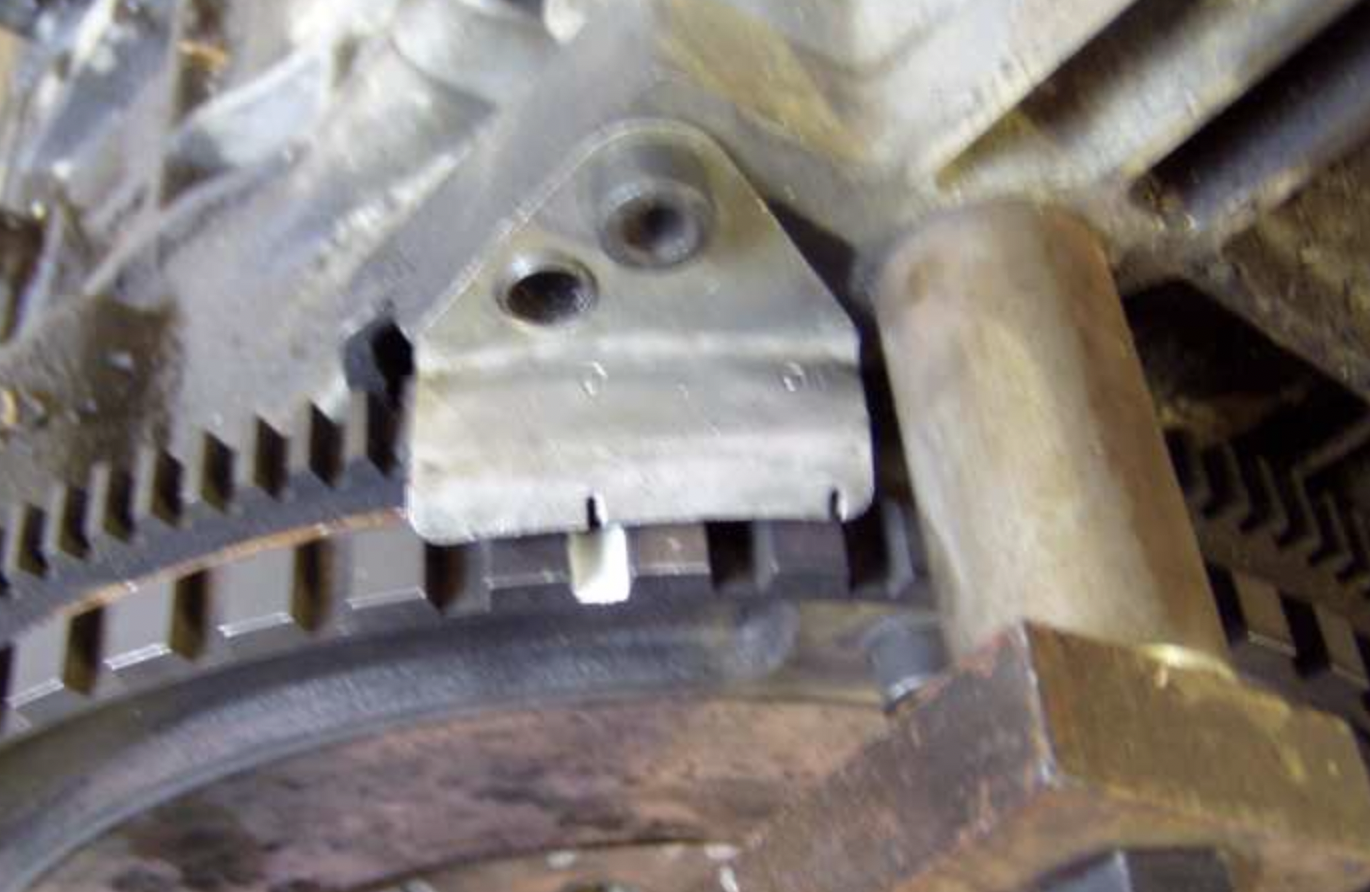

Maybe someone has removed the timing marker? From my website. The same tool being used to find TDC on a Motronic website. Sorry it's not in focus.

Screen Shot 2023-05-17 at 6.57.35 pm.png

  • Thanks 1

Share this post


Link to post
Share on other sites
MJS

Thanks, this helps.

It's this taken from above the engine?  Do you have to remove the air intake to see it?

Share this post


Link to post
Share on other sites
welshpug

I believe it'll be just visible past the AFM, may have to move some wiring to see it, its near the starter motor through a window in the gearbox.

  • Thanks 1

Share this post


Link to post
Share on other sites
MJS

Great, thanks, trying to find out in the dark last night was not working well for us.

Appreciate the help.

Share this post


Link to post
Share on other sites
Tom Fenton

Its that buried in the engine bay its difficult to see with everything in place, let alone get a timing light near it. I've most successfully adjusted the ignition timing by arse dyno, basically keep advancing it bit by bit until it starts to pink under high load at low revs, then back it off a touch until it stops pinking and call it done. Usually takes 20 min driving about stopping and starting with an 11mm spanner in your pocket.

  • Thanks 1

Share this post


Link to post
Share on other sites
MJS

I don't feel so bad about not being able to see it by torch light last night now!

Share this post


Link to post
Share on other sites
SRDT

Peugeot dealers had a special tool to set ignition timing and it used the "diagnostic" plug to get engine speed so they didn't care much about the timing marker.

Share this post


Link to post
Share on other sites
