Subframe mounted gear linkage ball diameter

[soundguy 13]

Anyone know what the diameter of the subframe mounted linkage ball is please?

[Gohn 62]

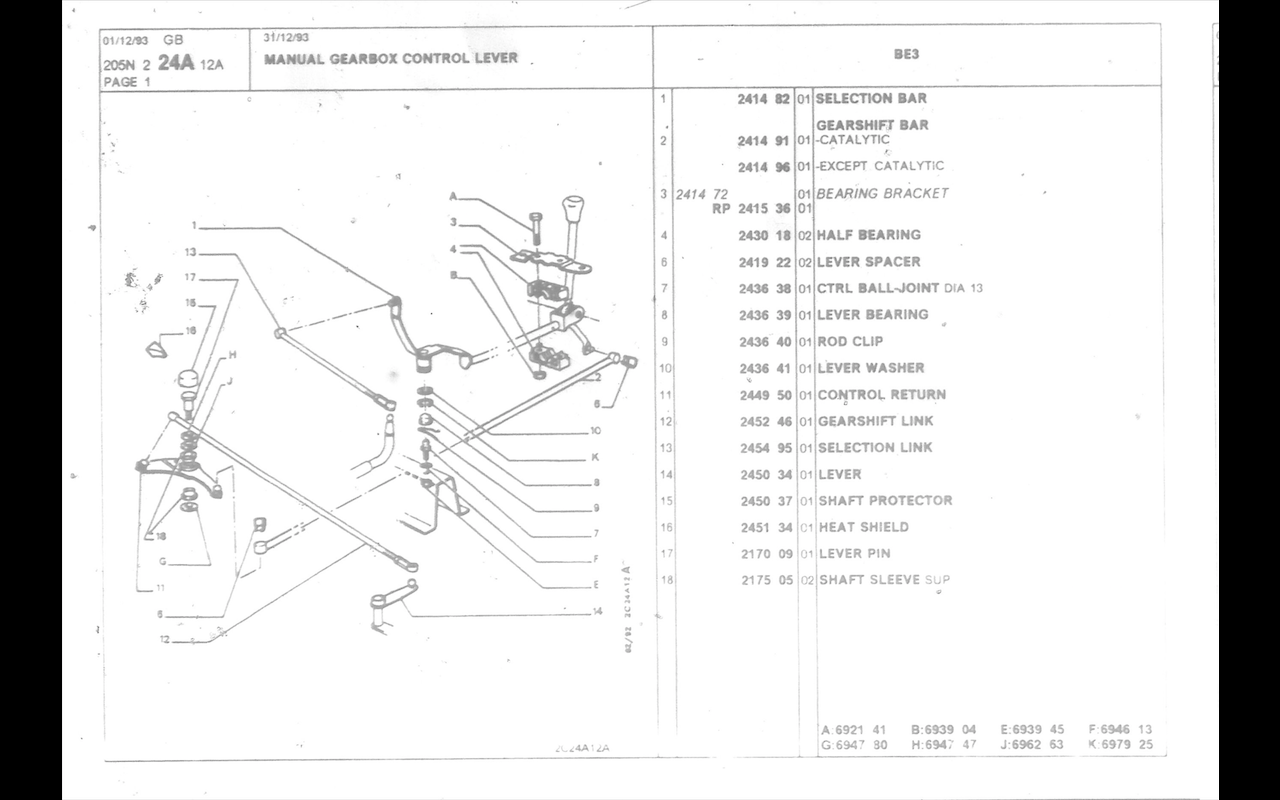

assuming you mean number 7 in the pic, the diametre given is 13mm



also, I've just put a caliper on the ball on my own subframe and it was 18mm



maybe someone else can explain the discrepency cause I can't



Edited February 9, 2023 by Gohn
pic

[soundguy 13]

Thanks Gohn, yep, part 7 dia. is what I'm looking for.



I've seen references to 13mm with regard to that part but I thought that was for the nut under the ball, and for the locknut attaching it to the subframe.



Think I better take mine off to cross reference dia. with yours just to make sure.



Your microfiche scans are REALLY useful, thanks for uploading it.

[Leslie green 81]

Talking of parts catalogs www.miamistu.co.uk which I use to see exploded diagrams seems to have went offline , does anybody know whats happening with it ?

Edited February 9, 2023 by Leslie green

[DamirGTI 325]

There's alternative :



http://prepparts.free.fr/docs/catalogue/cataloguegb.html

... basically same old PSA catalogue , but with the addition of 106 and 306 models included too .



And this one :



http://www.catcar.info/peugeot/?lang=en



D



[soundguy 13]

Item 7 - Control Ball Joint (these are generically named 'ball studs' - found one exact replacement but is OOS/NLA)



Original Part:

Ball diameter 13mm

Hex nut diameter 14mm

Overall length 44mm

Height from top of ball to bottom of hex 26mm

Thread length 18mm



Can't find an exact replacement, closest I can find in stock and available is:



https://www.wixroyd.com/en/catalog/design-elements/rod-ends-joints/ball-and-socket-joints/threaded-ball-studs/65550/65550.w0008/g+m+c+s+a+nr



overall length 35mm

Flange dia, face to face 11mm (two flats, not hex)

thread M8



Incidentally rod lengths are:
735 or 740mm

280mm

110mm

[SRDT 146]

Most ball studs are designed according to DIN 71803. If it's not what you need take a look at ball studs for gas struts, those are more varied.

[DamirGTI 325]

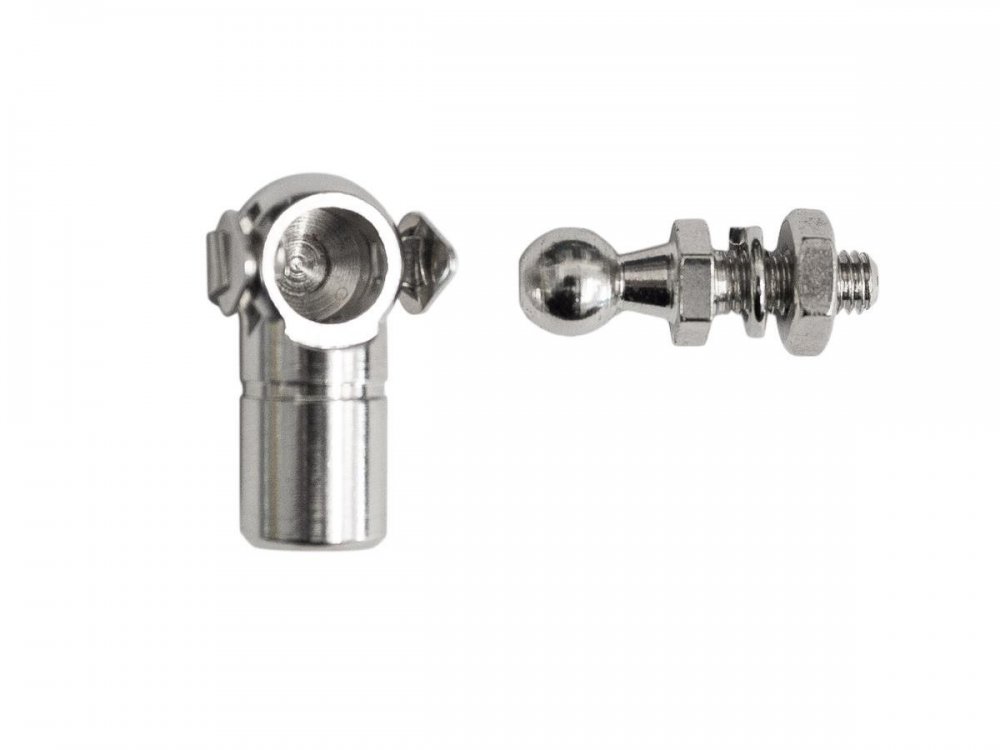

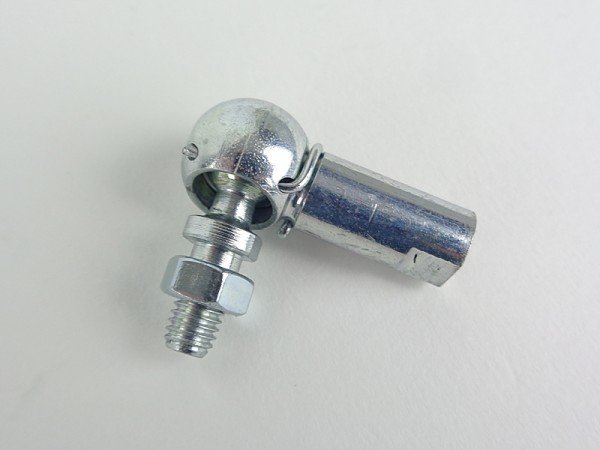

.. also ball joints for throttle linkage :
