Richie-Van-GTi

Wasted spark igniter

Recommended Posts

Richie-Van-GTi

Does anyone know if the generic used wasted spark coil from a lot of pugs and citroens etc has its own igniter?



I have an adaptronic ECU but it specifically states the coil must have its own igniter?

Share this post


Link to post
Share on other sites
welshpug

no,  earlier ecu's like mp3.1 used an amplifier, later ones dont but have the same coil.

Share this post


Link to post
Share on other sites
Richie-Van-GTi
23 hours ago, welshpug said:

no,  earlier ecu's like mp3.1 used an amplifier, later ones dont but have the same coil.

Thanks for that, makes sense.

Will have a look for a wiring diagram for the mp3.1 set up. Guess its the same amp as the gti uses?



Edit: found the answer, No, single channel in GTi.

Ordered a VAG style wasted spark coil with built on igniter

Edited by Richie-Van-GTi

Share this post


Link to post
Share on other sites
welshpug

yeah its a different amplifier, same 7 pin plug but 2 channel

Share this post


Link to post
Share on other sites
petert

XU10J4 has two dual channel ignitors. As said, they look identical to single channel. Let me know if you need a wiring diagram.

Share this post


Link to post
Share on other sites
Richie-Van-GTi
On 1/30/2022 at 11:45 AM, petert said:

XU10J4 has two dual channel ignitors. As said, they look identical to single channel. Let me know if you need a wiring diagram.

Hi Peter, can you send me that wiring diagram please, suspect i may need to swap back to the original coil and use ign amp so i can get my tacho working again

Share this post


Link to post
Share on other sites
welshpug





number of oem applications here that use them, first one in the thread, the S16, uses two.

Share this post


Link to post
Share on other sites
Richie-Van-GTi
7 hours ago, welshpug said:





number of oem applications here that use them, first one in the thread, the S16, uses two.

Excellent, thanks

Share this post


Link to post
Share on other sites
Richie-Van-GTi

Ordered an S16 ignition amp.

Just looking at that diagram on autodata, not clear how i would wire that to run a wasted spark coil on a different ECU. I assumed there would be power to the amp but seems not, also both pins connected to the ecu are labelled as 1&4 or 2&3 in pin out but the diagram shows them as 1&3 2&4.  Also the 4 wires labelled as triggers on the pin out suggests to me the ecu is igniting sequentially?



Just need to confirm its the right amp to run a wasted spark? I dont need 2?



Share this post


Link to post
Share on other sites
petert

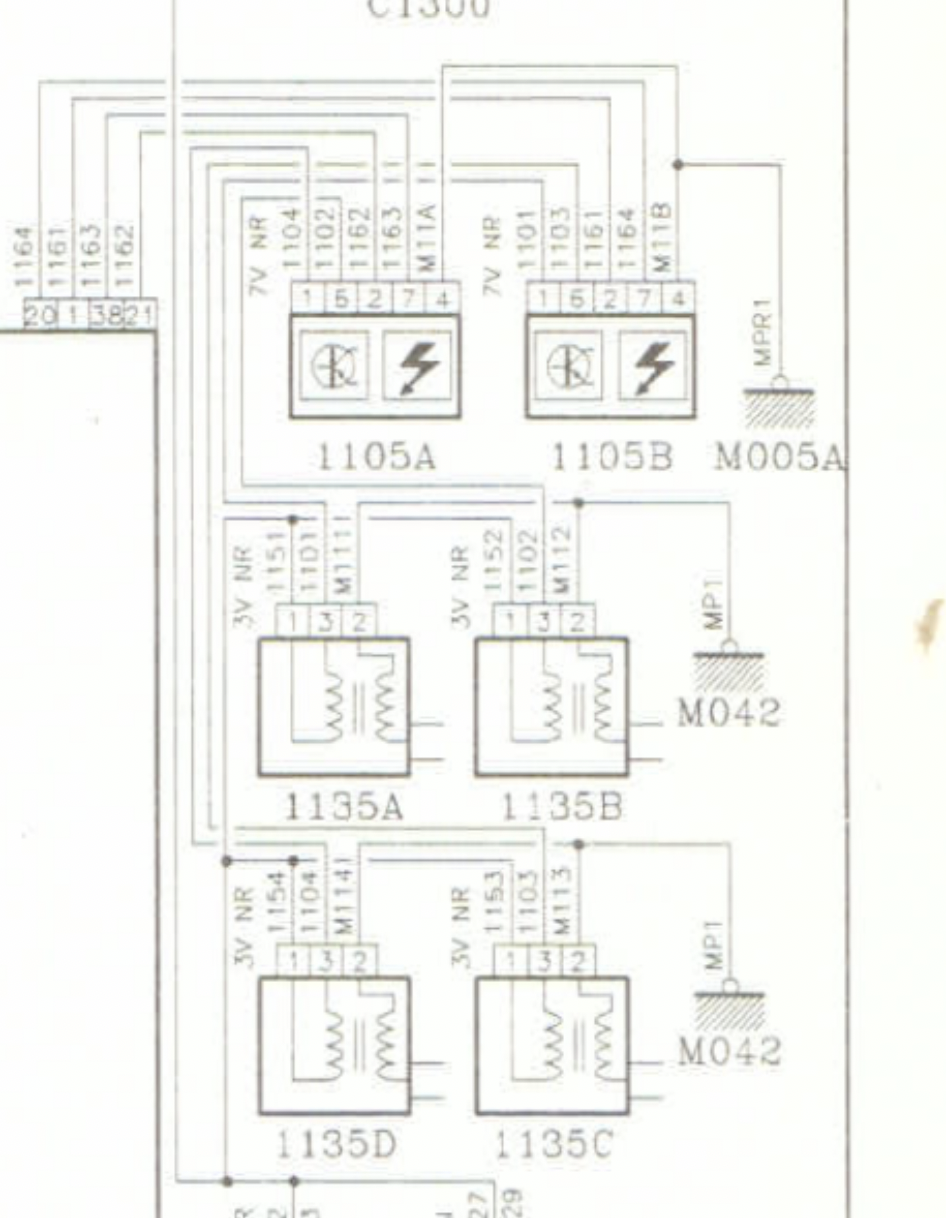

Here is the factory diagram. Hopefully identical to what Welshpug posted.

Screen Shot 2022-05-07 at 7.54.52 pm.png

Share this post


Link to post
Share on other sites
welshpug

yeah exactly the same, S16 does run sequential as far as I know, they do have cam sensor and individual injector wiring.



 you'll only need one amplifier if you want to run wasted spark,  the coil is basically two separate circuits in one module, hence  the paired HT lead outputs.

Share this post


Link to post
Share on other sites
petert
2 hours ago, Richie-Van-GTi said:

 I assumed there would be power to the amp but seems not, also both pins connected to the ecu are labelled as 1&4 or 2&3 in pin out but the diagram shows them as 1&3 2&4.  Also the 4 wires labelled as triggers on the pin out suggests to me the ecu is igniting sequentially?



Yes, power is supplied to each coil and the ignition module grounds the coil.



S16 and 2L Mi16 are indeed full sequential fuel and direct fire ignition.



I concur with Welshpug, you only need one module to run wasted spark. The ignition modules aren't intelligent however, thus you'll need to optimise the dwell in your ecu settings for the coil packs being used. You'd probably start at 3ms and use an oscilloscope to optimise the saturation time.



The S16 and Mi16 coils are notorious for being unreliable. They're also reasonably unique to that engine, thus demand a high price.



Share this post


Link to post
Share on other sites
SRDT

The XU10J4 diagram can be confusing if you don't want to run sequential. Here is the XU10J2TE diagram, it's also a MP3.2 ECU but with wasted spark:




As for XU10J4 coils you can also find them on some Maserati...

  • Like 1

Share this post


Link to post
Share on other sites
welshpug

a friends 993 them too.

Share this post


Link to post
Share on other sites
Richie-Van-GTi

Ok, bought a new dual channel ignition amp, listed as fitting all sorts including s16.

Do they all need to be on a plate as a heat sink or is that just the alloy body gti ones?



Share this post


Link to post
Share on other sites
DamirGTI

Absolutely yes , need to mount it on the alu. plate with some heat sink paste/jelly in between (smear some on the back side of the module) , otherwise it'll overheat and burn out .



D

  • Thanks 1

Share this post


Link to post
Share on other sites
