1990 Gti Wiring Identification

By jj007205, September 13, 2021 in XU 8v Engine Maintenance and Performance Upgrades

Recommended Posts

jj007205 0

Posted September 13, 2021

1990 Gti RHD front passenger side where the headlamp, front shunt box, power block, radicator switch etc is. Trying to identify these wires (some broken) and would greatly appreciate any help. Thanks in advance!

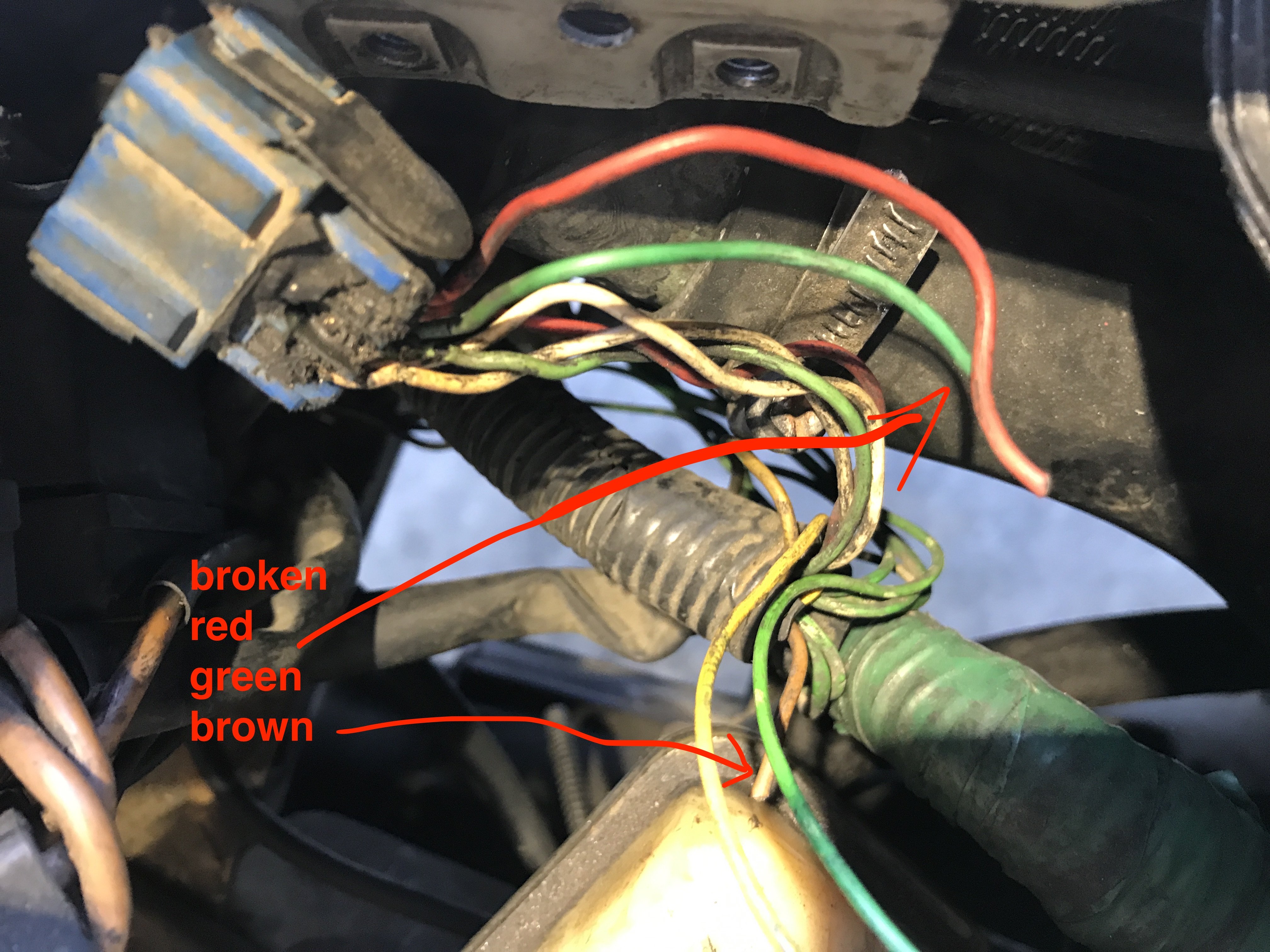

These wires are for the blue connector that goes to the radicator switch BLUE connector has 2 red, 2 green, 2 white?

The brown coming from harness is also broken.

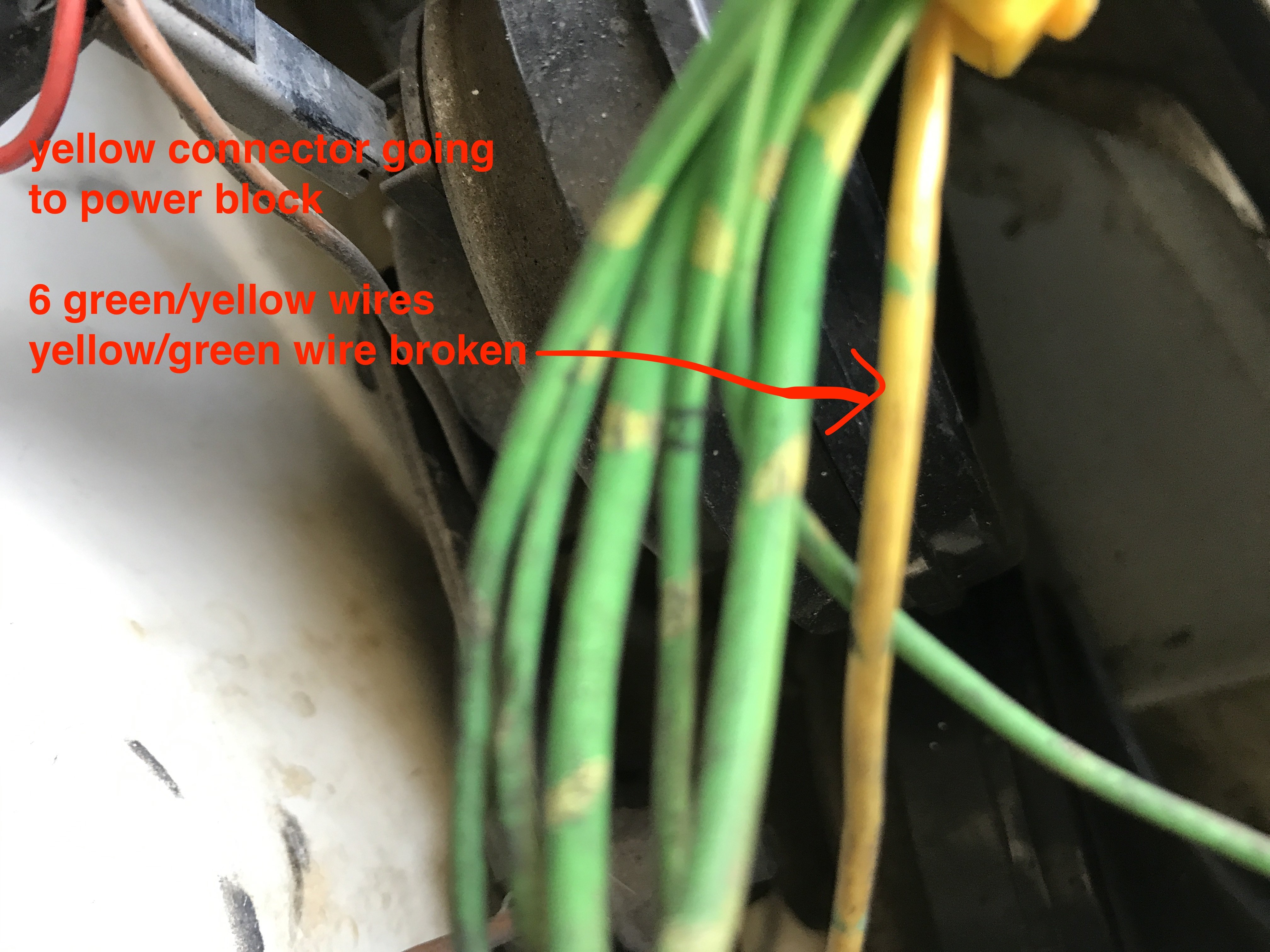

Yellow connector going to power block with 6 green/yellow wires and one yellow/green wire thats broken

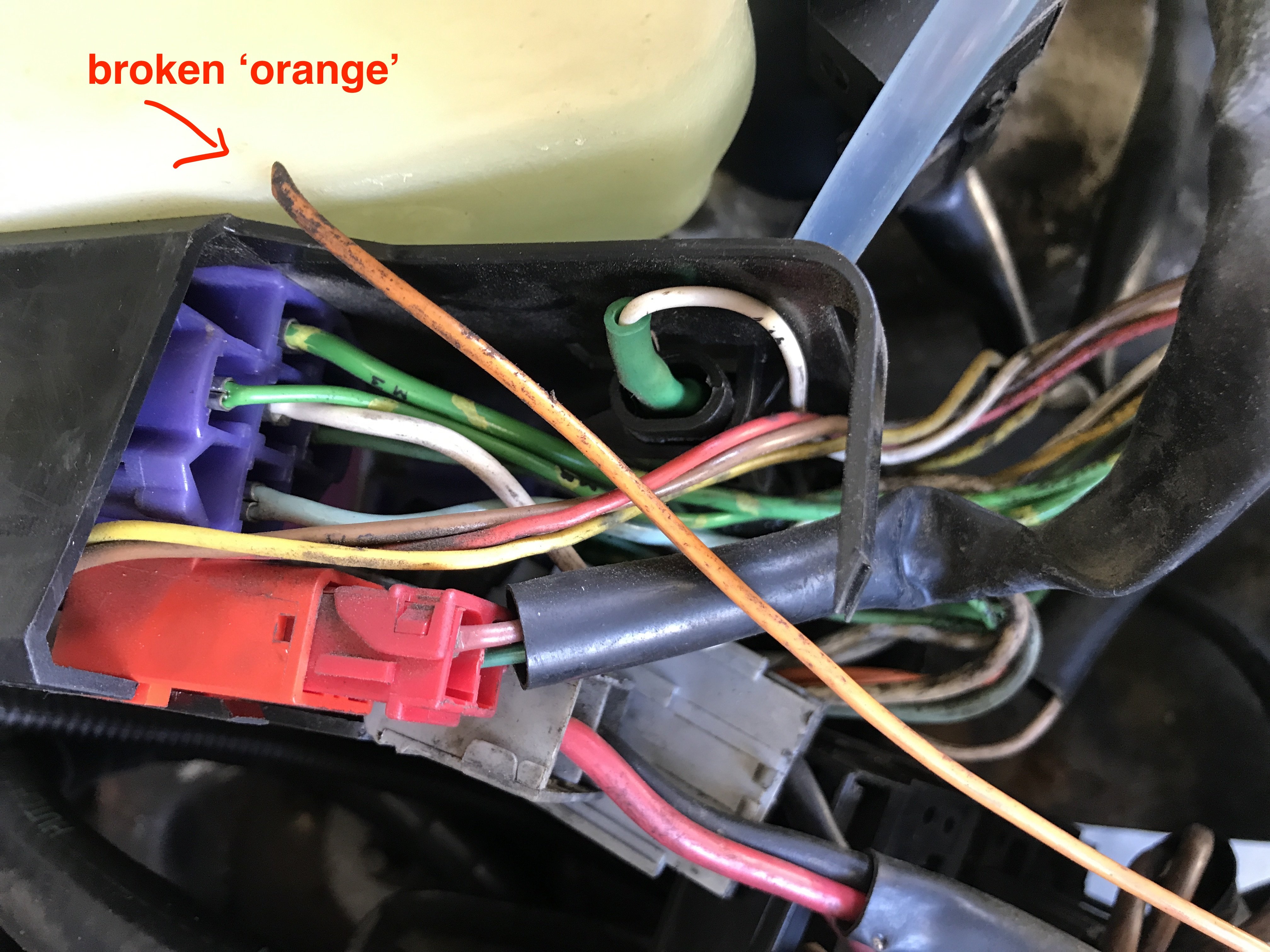

Broken 'orange' wire

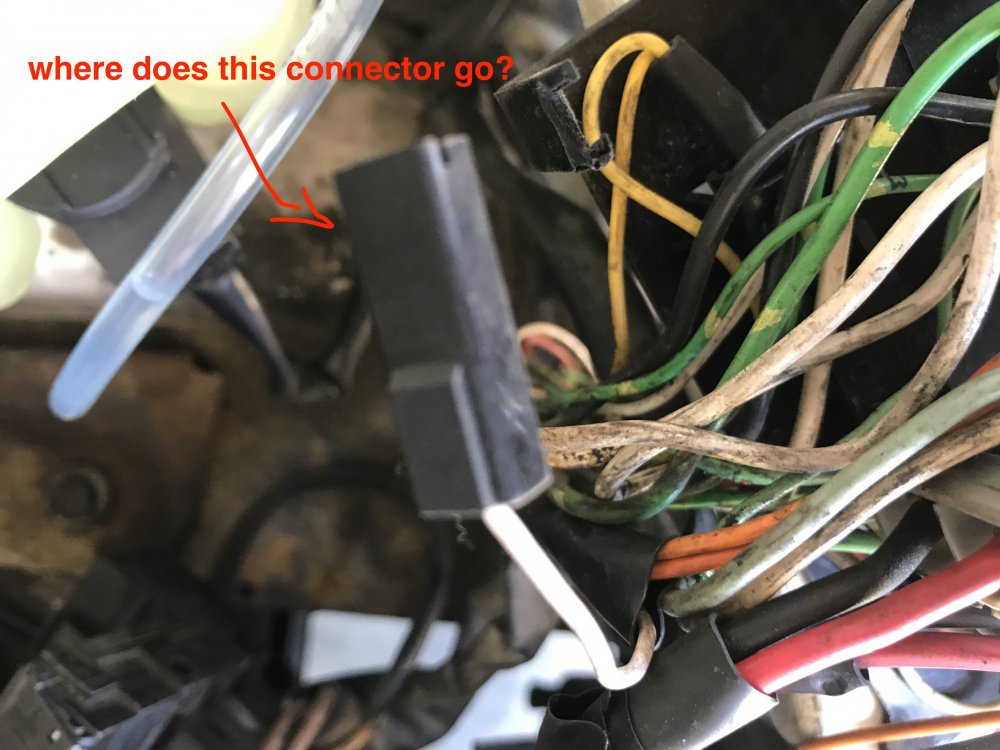

Whats this black connector with white wire?
