mmt

You’ve got clearance Clarance?

Recommended Posts

mmt

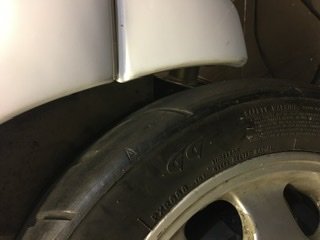

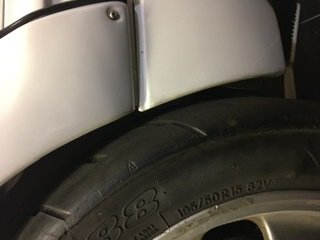

My rear spoiler has about 1,5 cm clearnce to the tire. Is that enough?



I have not driven it yet (except on and off trailer). Don’t want to spoil the spoiler/the new paint first time out. Race car only.


If I (reasonable full grown !) sit in the trunk the gap is 1 cm.


thanks




Edited by mmt
Missed pic

Share this post


Link to post
Share on other sites
Callum

Have a similar issue that I suspect is the rear axle front mount plates as the 1.9 models actually had offset studs to give extra clearance for the 15" wheels where the 1.6 models had centered studs also if the beam is lowered I believe that also changes the wheel position to a certain extent

  • Thanks 1

Share this post


Link to post
Share on other sites
mmt

Great input. Thanks.


That Could be it. My mounts are solid with non-offset studs.


do you know How much the offset is on the original studs ?

Share this post


Link to post
Share on other sites
jackherer

It's not the rear mounts which is what I assume you have changed to solid mounts, it's the front ones with two studs each going up into the floorpan.

Share this post


Link to post
Share on other sites
mmt

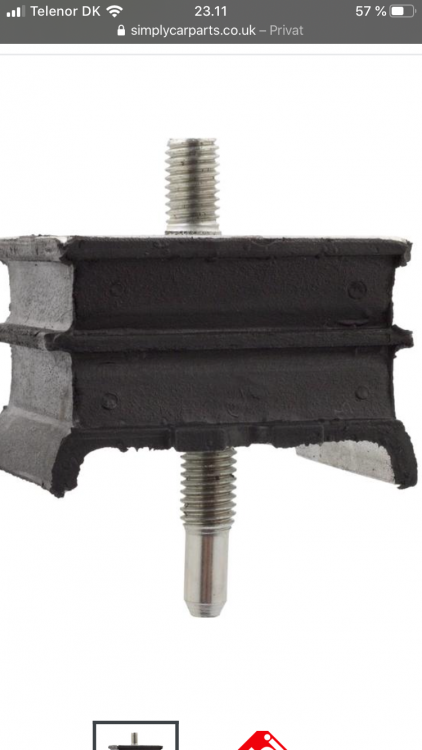

Like this one.


Share this post


Link to post
Share on other sites
jackherer

No, that's the rear one.



They're shown in this thread but photobucket are blurring them a bit:





Share this post


Link to post
Share on other sites
jackherer

The ones in your photo (or your solid ones) go into a slotted hole on the beam so can be moved fore and aft depending on the front mounts you fit.

Share this post


Link to post
Share on other sites
mmt

I am not 100 % sure However I believe that 309 beam on a 205 Will only with one of the 2 different front mounts.



can anyone confirm?

Share this post


Link to post
Share on other sites
Mac Crash

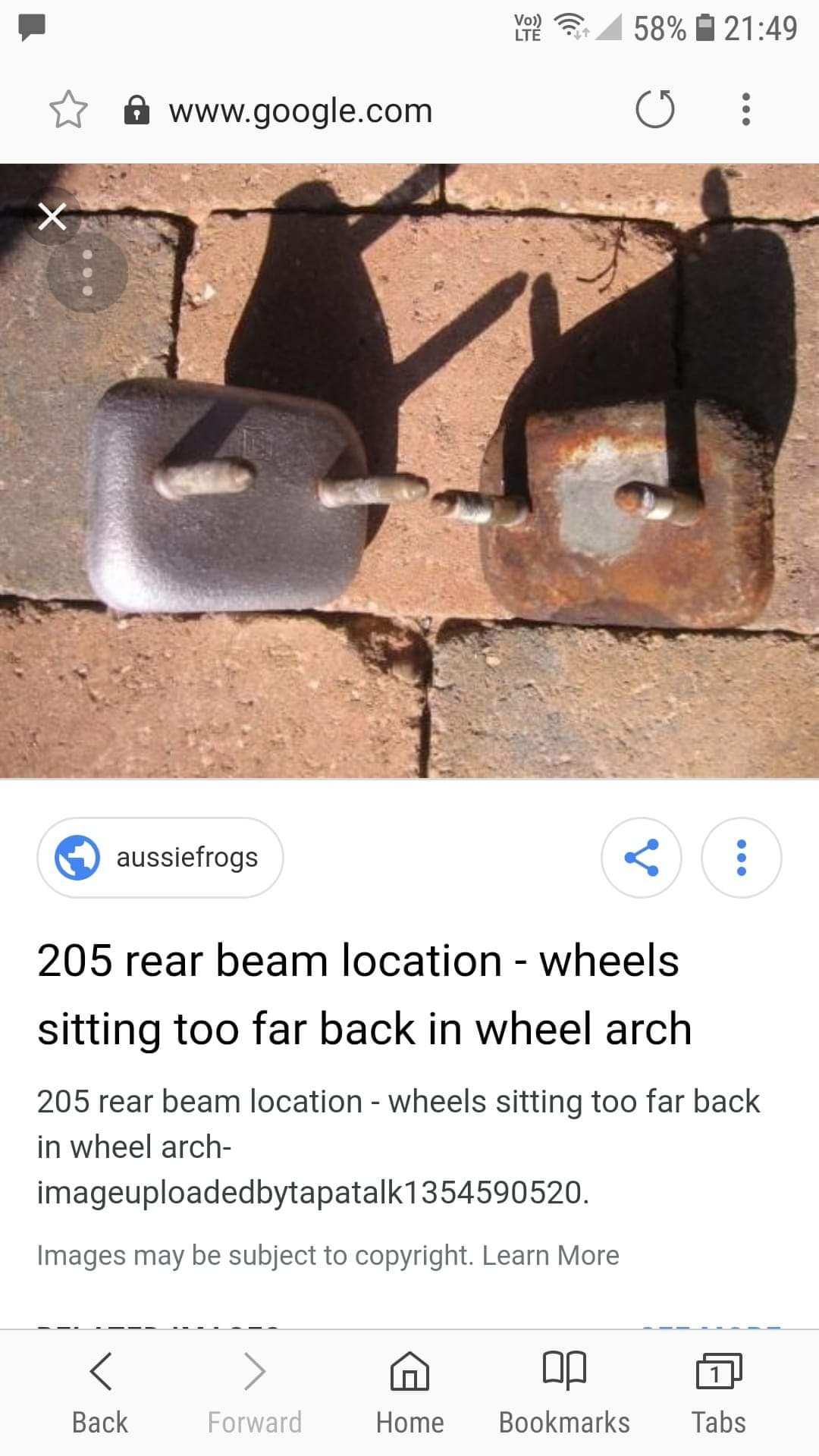

Not the bushes, but mounting plates that locate the front edge of the beam to the floor pan..... the studs are offset, actually bloody hard things to find pictures of when you need to.

Share this post


Link to post
Share on other sites
Mac Crash

309 beam belongs on 309, avoid... best 205's have 205 beams

Share this post


Link to post
Share on other sites
mmt

I’ll be raising the rear this weekend- fingers crossed for clerance.

Share this post


Link to post
Share on other sites
mmt

Thanks great reading. I’ll be meassuring wheel base afte raising the rear.





Share this post


Link to post
Share on other sites
mmt

Wheel base is spot on 2420.
Raised the rear 1 cm, gap is now good.


  • Like 1

Share this post


Link to post
Share on other sites
Leslie green

Interesting must have a check see what mounts I have on my axle.

Share this post


Link to post
