few questions - gti6 wiring/plugs

[Spesh 28 1 Cars]



Bought the engine complete out of a 205 so, in theory, is should just work however I've a few loom niggles to sort.

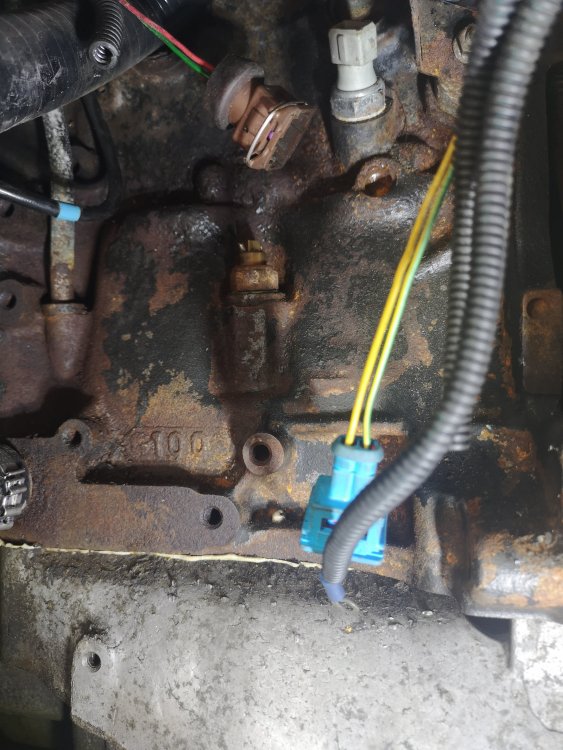

Can't quite work out what those 2 plugs are for, someone in book face suggested aircon and evap leftovers?

brown plug is green and red and the blue plug is green/yellow and green.

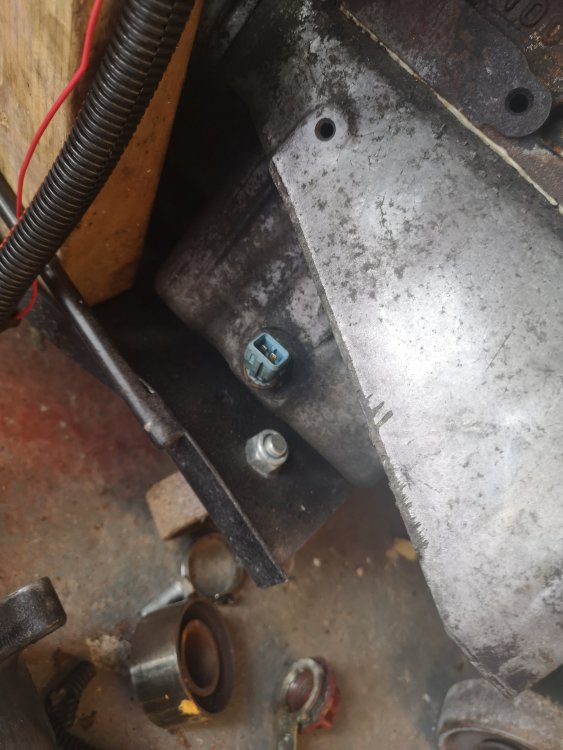

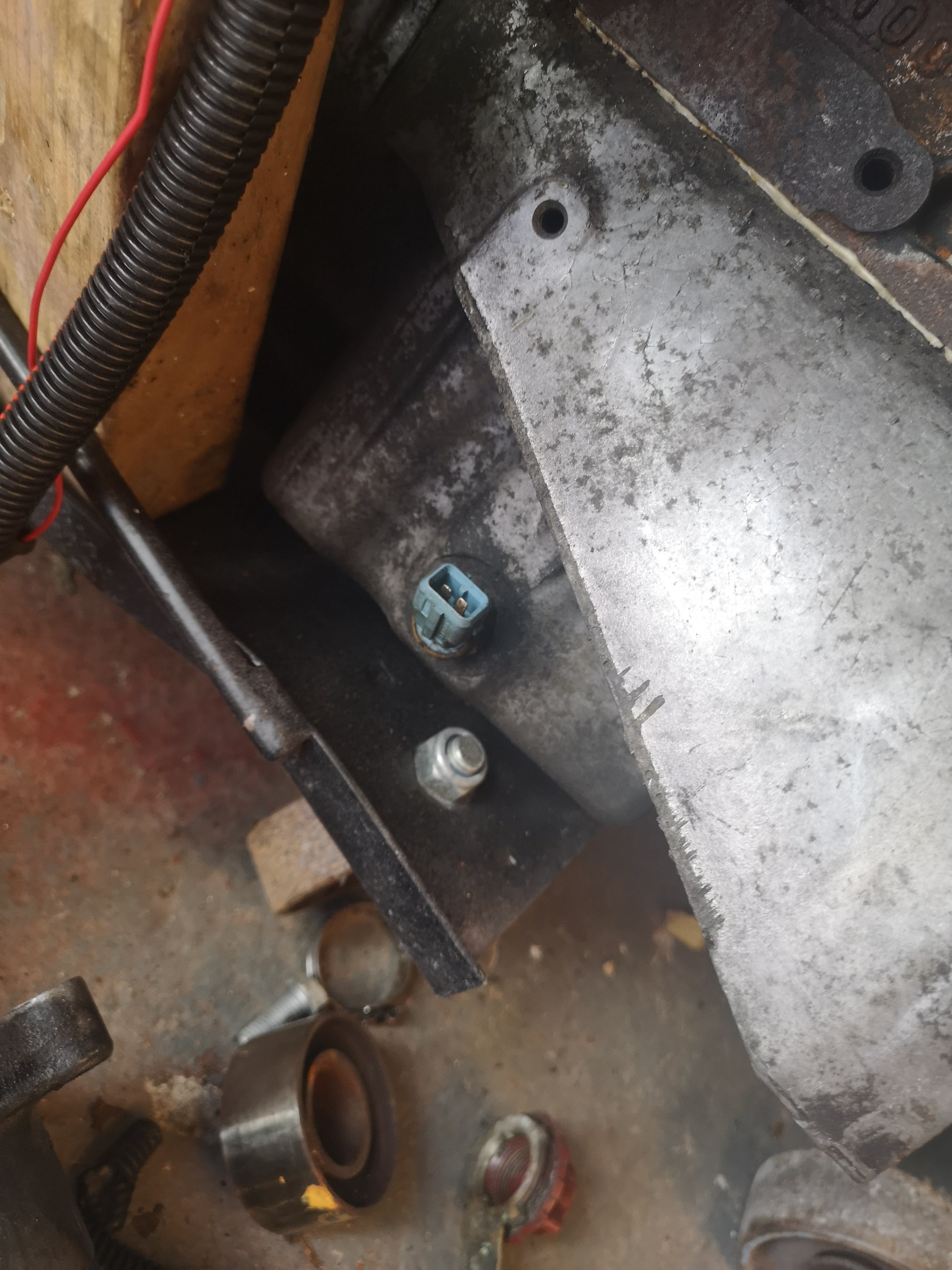

managed to bust this, think its the oil temp sensor and I have a wire that looks like it should be on there, does anyone know a part number for the sensor?

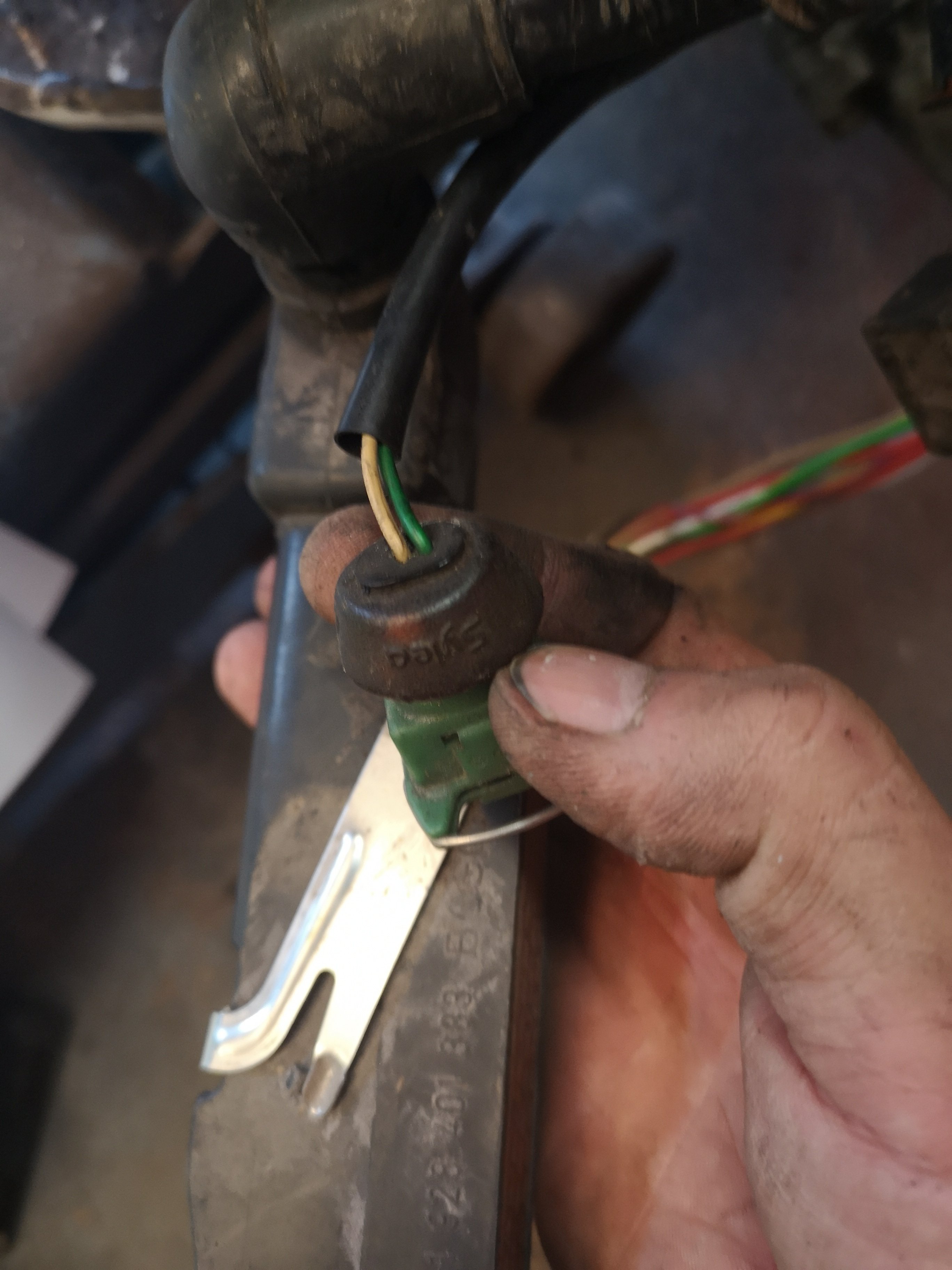

and lastly there is this plug that's very close to the ecu plug, wire colour would suggest diagnostics?



Thanks in advance, struggling a bit with the loom as it's been extended with random colour wires which is making some id difficult

[2052006 10]

Blue one could be for the PAS sensor in that location.  Brown one may well be for the EVAP valve - is a brown 2-pin on mine.

[Spesh 28 1 Cars]

thanks, I've been belling out what I can and neither of those 2 plugs come to the brown plug ends and look like they were well tucked away.



I've got the larger brown plug sorted but I'm a little stuck on the smaller plug right now.



I've got starter and switched live confirmed.

pretty sure I've got the fuel pump as a large white 120a from the double relay.



however I'm stuck on which is which of the 2 remaining.

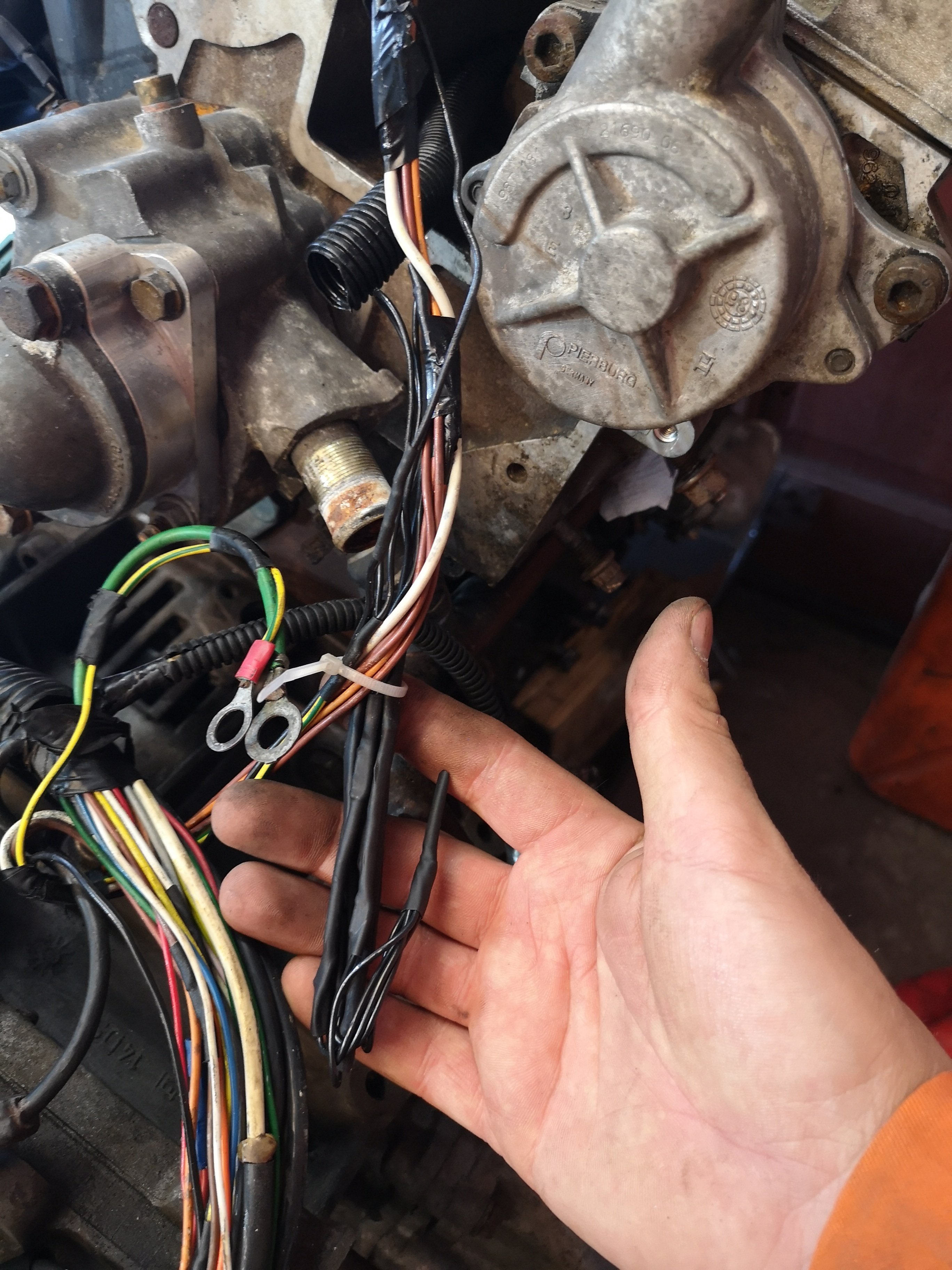

I have a beige that goes back to the ECU (number is unreadable) and a black that goes up towards the coil packs and wired through what feels like a bunch of shrink wrapped resistors or diodes, picute below. my understanding one should be tacho output and the other a common earth.





confined the small plug near the ecu as old school diagnostics too.

Edited August 22, 2019 by Spesh

[Spesh 28 1 Cars]

so the beige wire goes to pin 9 on the ecu plug which is the MIL? even more confused now the joys of someone else's wiring lol. I suspect that the common earth (would be m444 on the gti6 loom) is actually on the earth tag on the gearbox (can't actually find a cable marked m444 though).

[boldy205 74]

Think I'm right in saying:

The first two are as u say, and dont need to be used.

The one in the sump in an oil level senso, which again doesn't need to be used.

Might give u a point in the right direction.



Matt



[Spesh 28 1 Cars]

Thanks for the reply boldy.  I'm pretty confident the two loose plugs are redundant however it seems the one in the sump is actually oil temp.

[boldy205 74]

Ah yes, could well be. Was a while ago I did mine!

Hope it's all going well!
