Hello all, im trying to put back together my dad's old 1989 1.6 gti, which he started restoring about 15 years ago and eventually gave up on it as he lost enthusiasm when he got stuck with the wiring. Im hoping someone here could point me in the right direction on the routing that i am trying to work out.

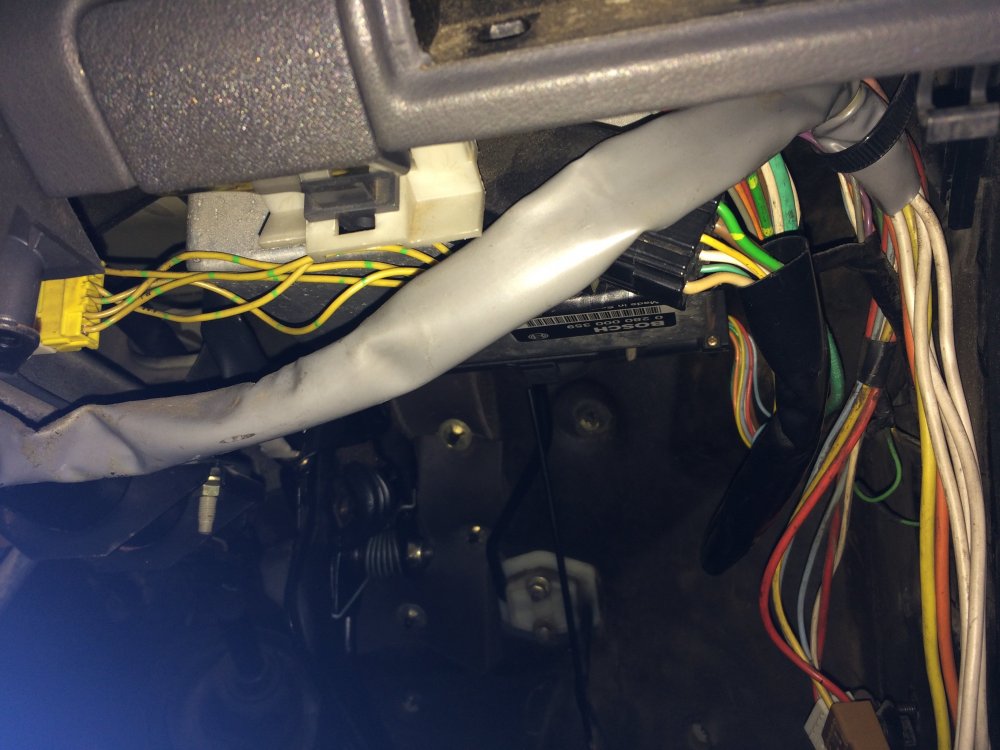

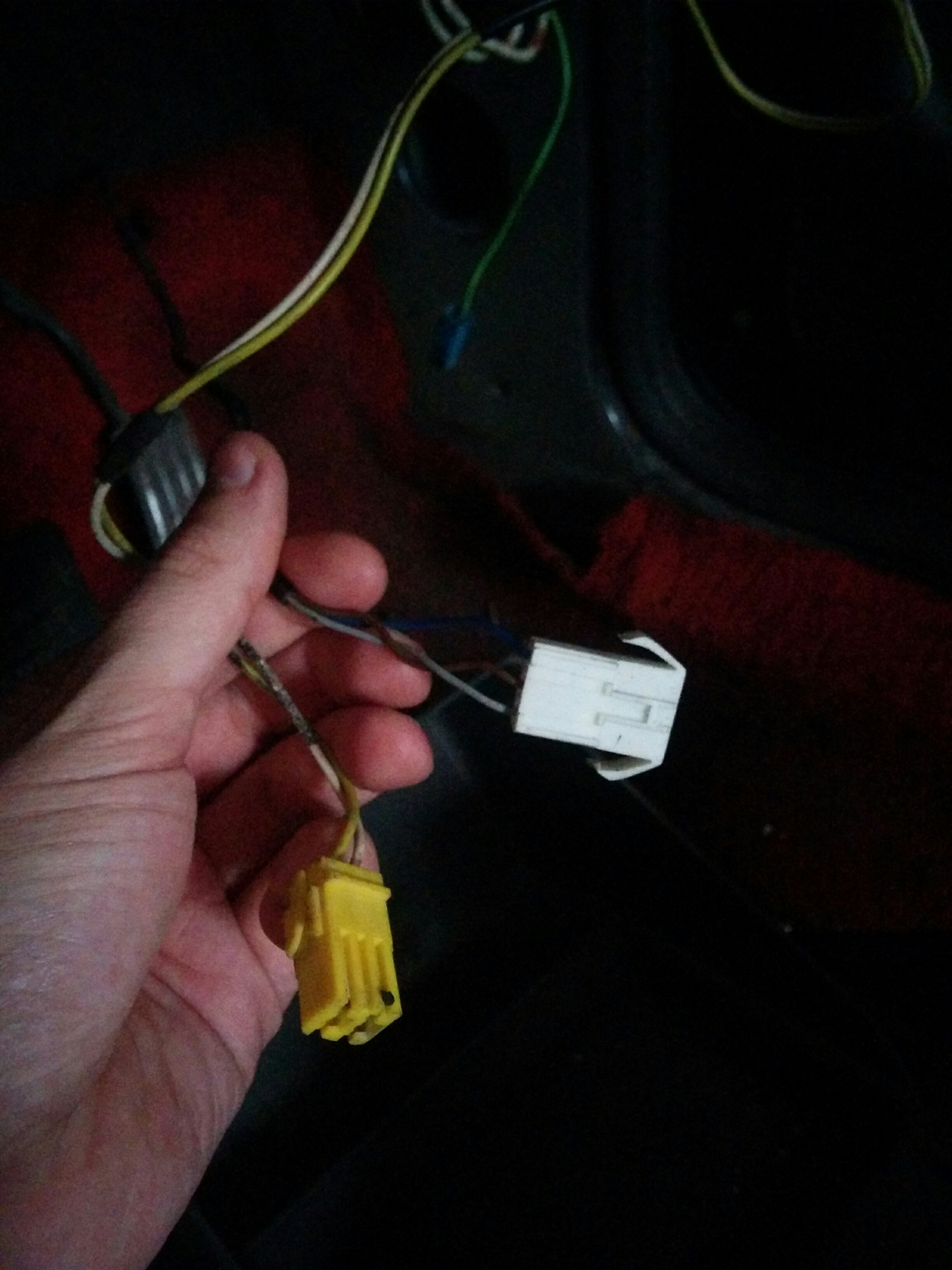

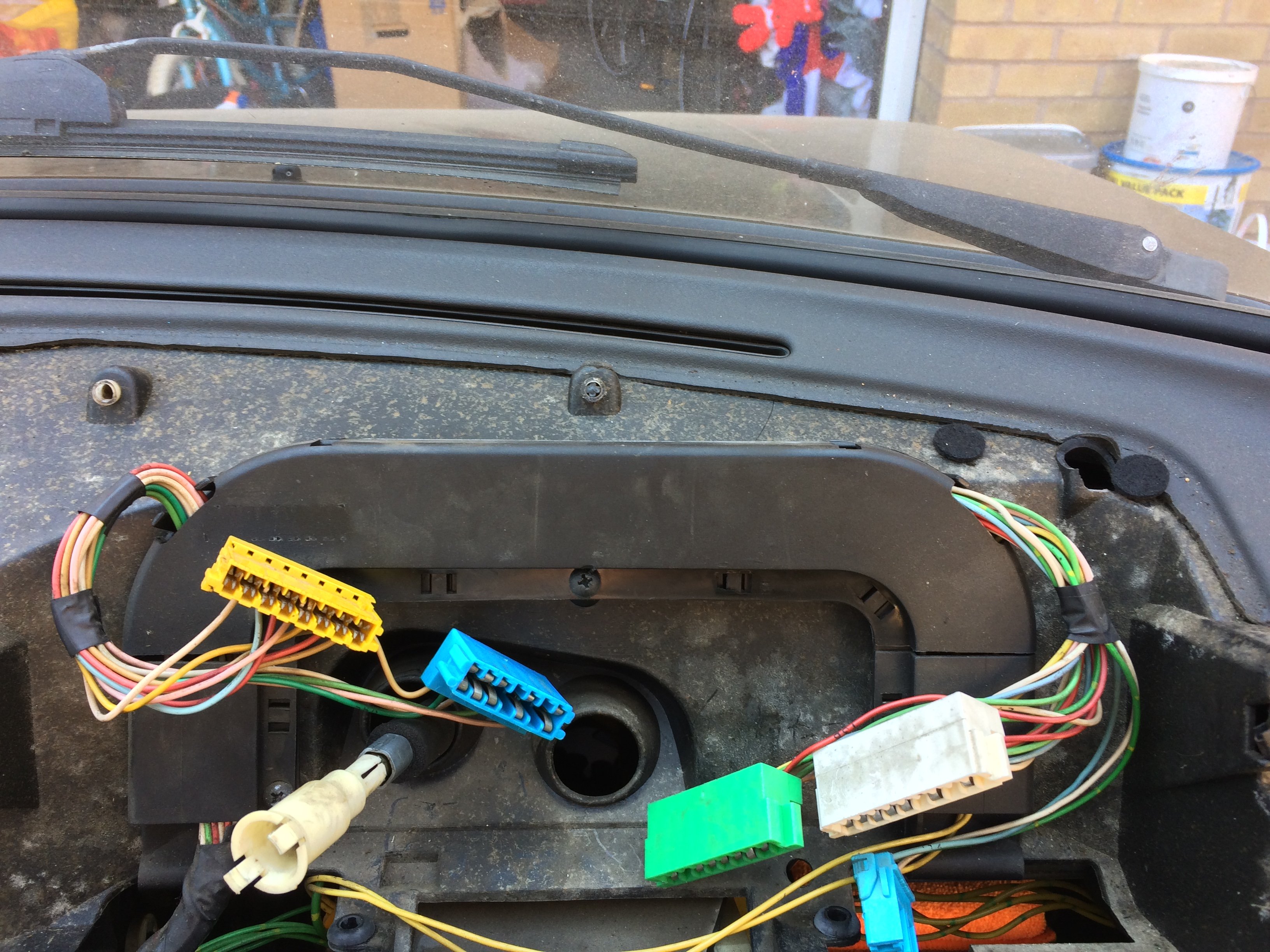

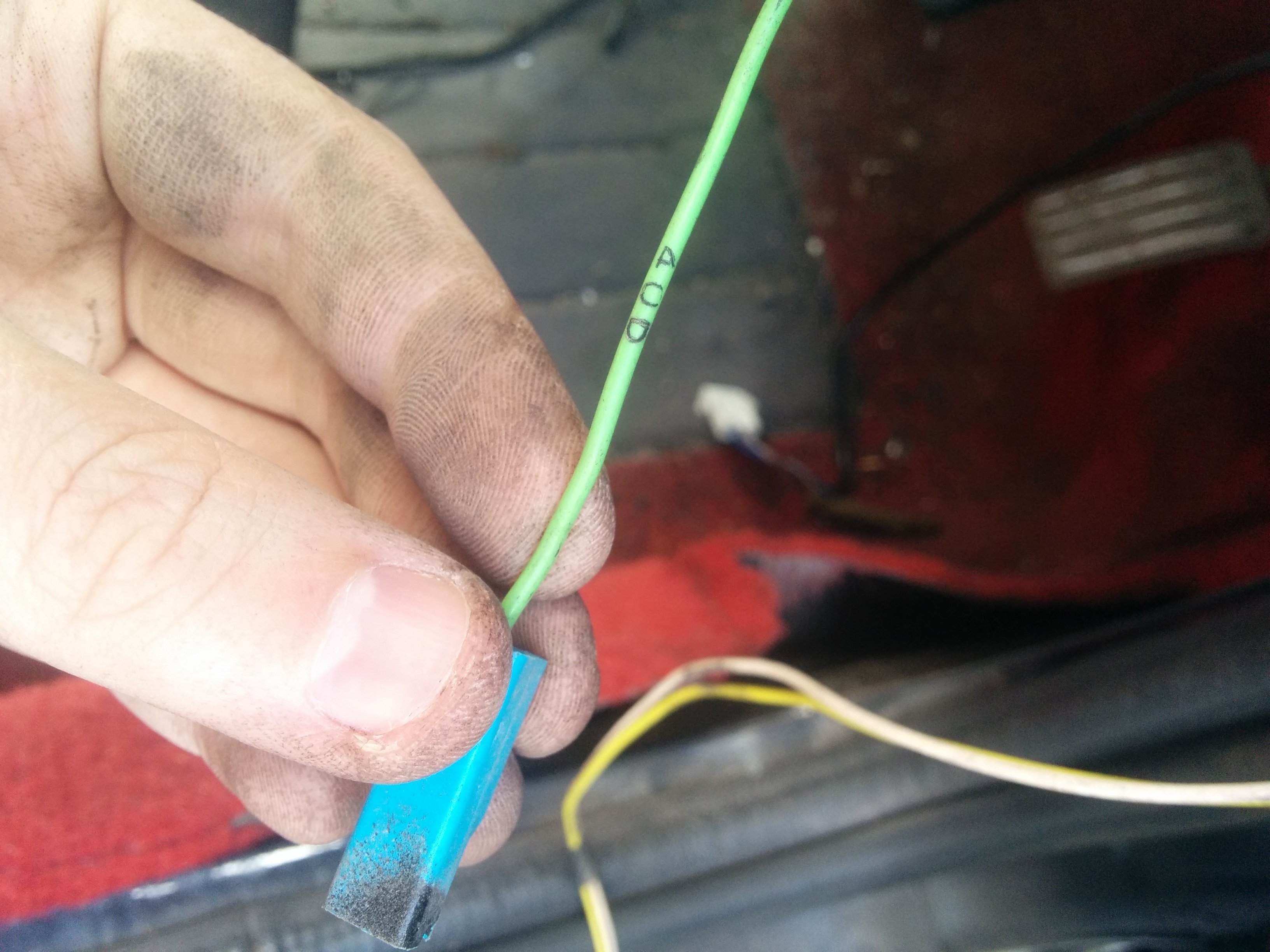

Where the wiring loops around the instrument cluster (first image) i need to know if the ecu and tach plug wiring runs within the cable tidy or does this run behind the dash? At present i only have the cluster wiring in cable tidy but ive seen photos and there are extra cables running in there which seems to continue down the right hand side and looping back into the dash. I also have a loose set of cables which have a white 4 pin plug and a brown plug with a red cable and yellow cable going into it (second image), could it be these that should be within the cable tidy?

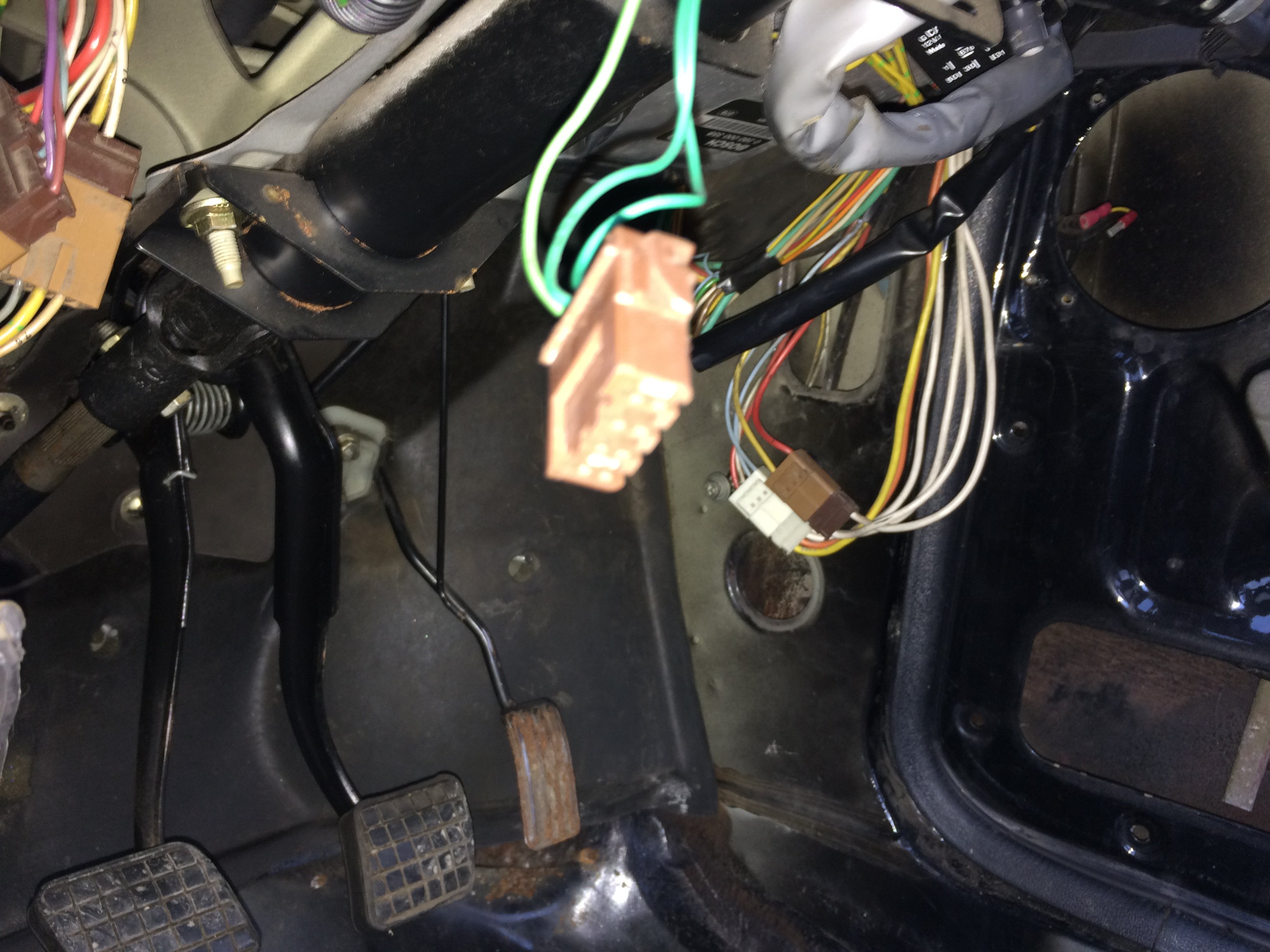

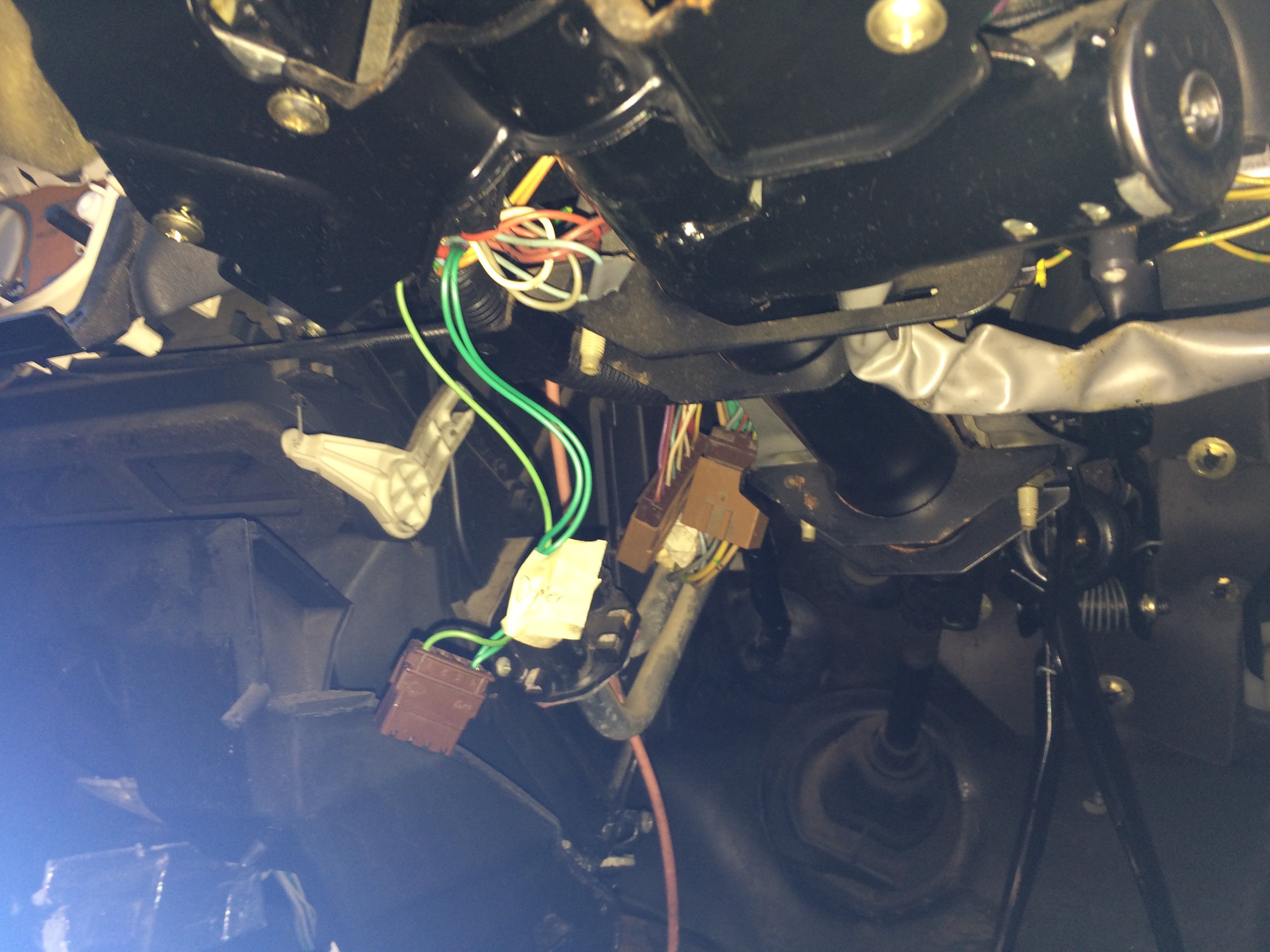

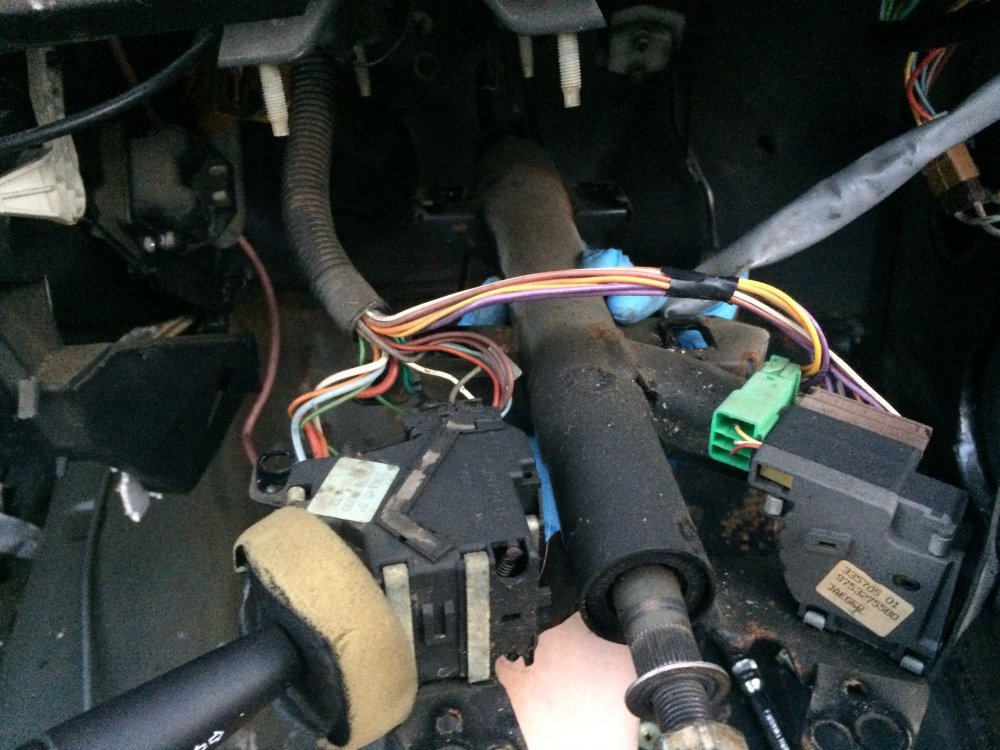

Lastly, behind the steering wheel, there are a set of what look like earth cables on plugs, could someone have a look at the last image and tell me if what i have plugged in looks correct or have i done it wrong?



Any help appreciated.



Thanks

Rob








Edited by R0B

Share this post


Link to post
Share on other sites
tartanbloke

Good evening,

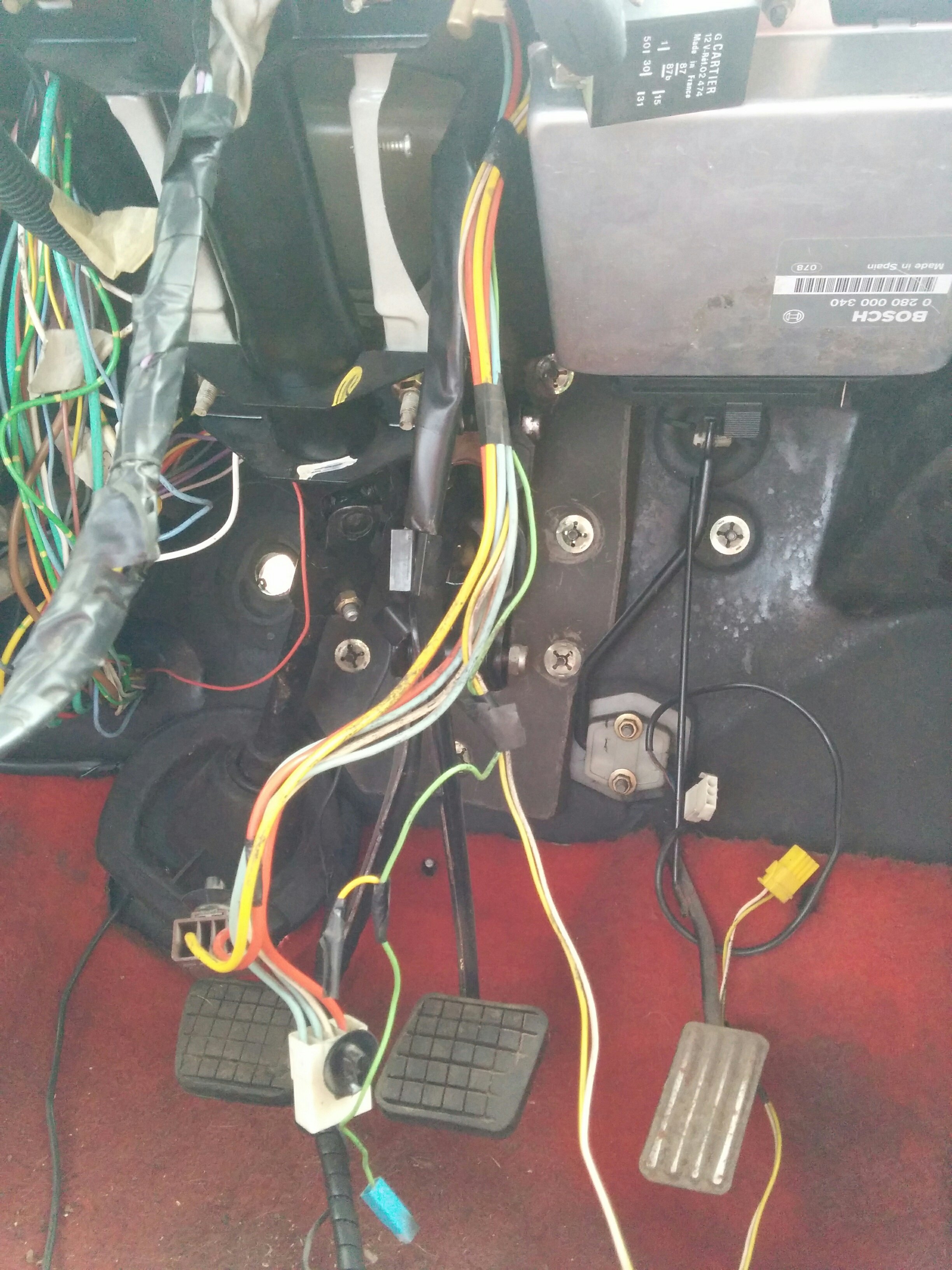

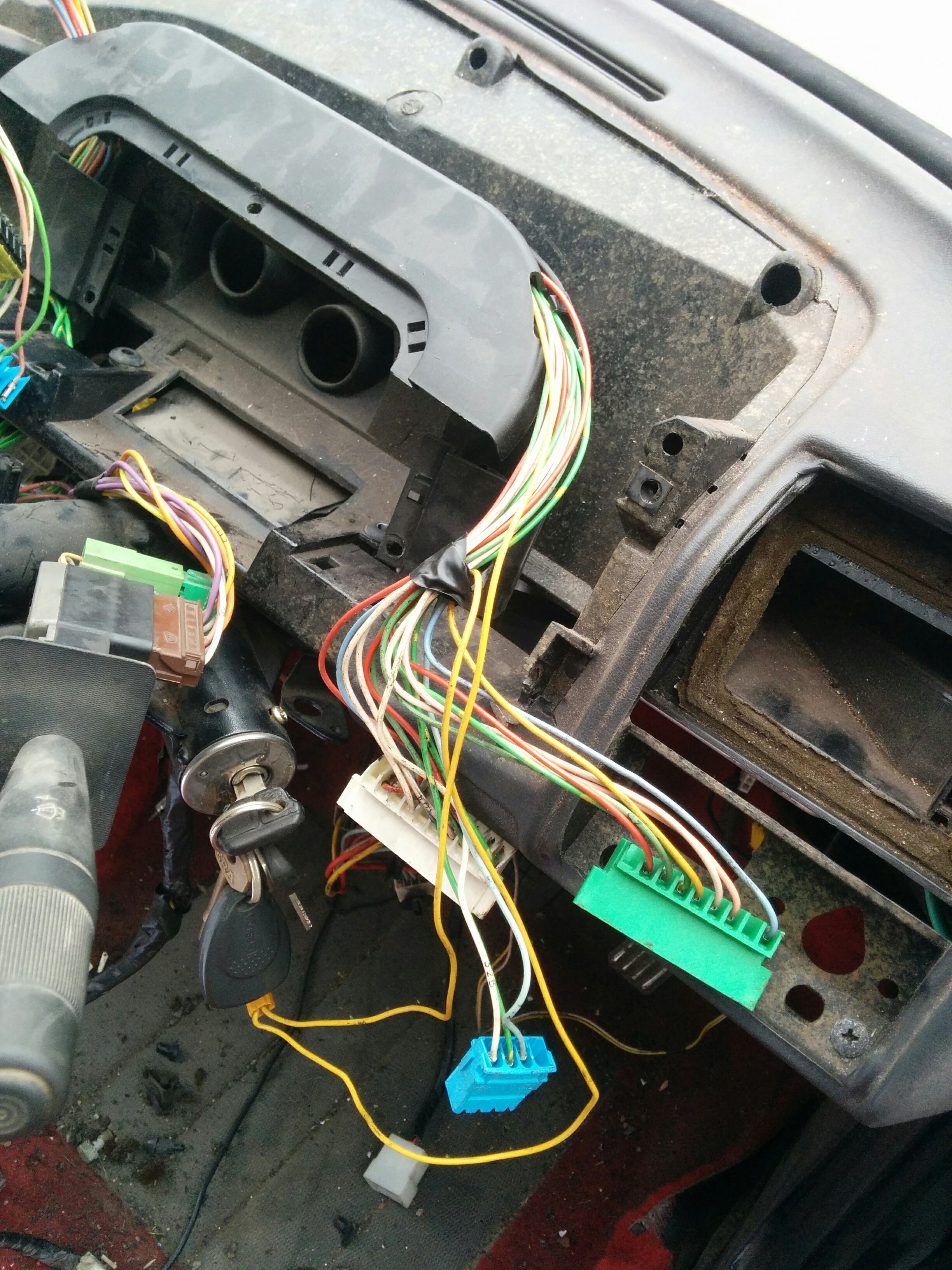

Attached are some photos that may help you as I am stripping mine down at the moment and have tried to record the position of all the wiring prior to removing.

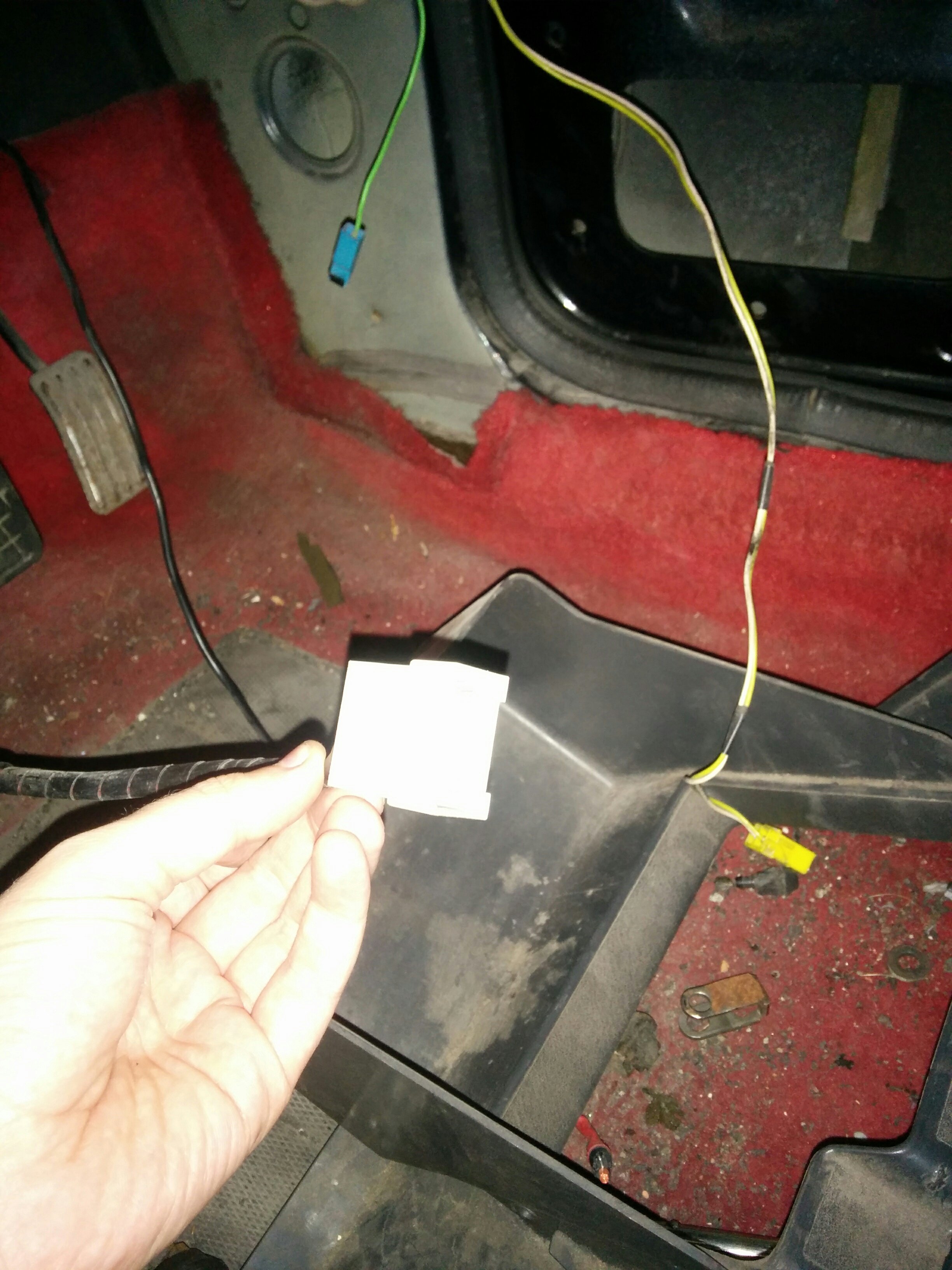

The wiring with the white pug goes behind the ECU and round to the right whereby it connects to the plastic kick cover.






Share this post


Link to post
Share on other sites
R0B

Thanks very much for those images :)   i dont suppose you have a picture that shows how the engine harness routes up over the steering column after it has come through the rubber grommet in the fire wall?

Share this post


Link to post
Share on other sites
tartanbloke

Not at the moment but I have the attached if that helps.






Share this post


Link to post
Share on other sites
Tom Fenton

I don't want to start majorly taking it to bits, but I'm in Rotherham and you are welcome to come and have a look at my car if it will help.

Share this post


Link to post
Share on other sites
R0B

Hi Tom, thanks for the offer, very kind of you. Thankfully though i think ive managed to get it installed correctly. Just got to work out where all the screws go!

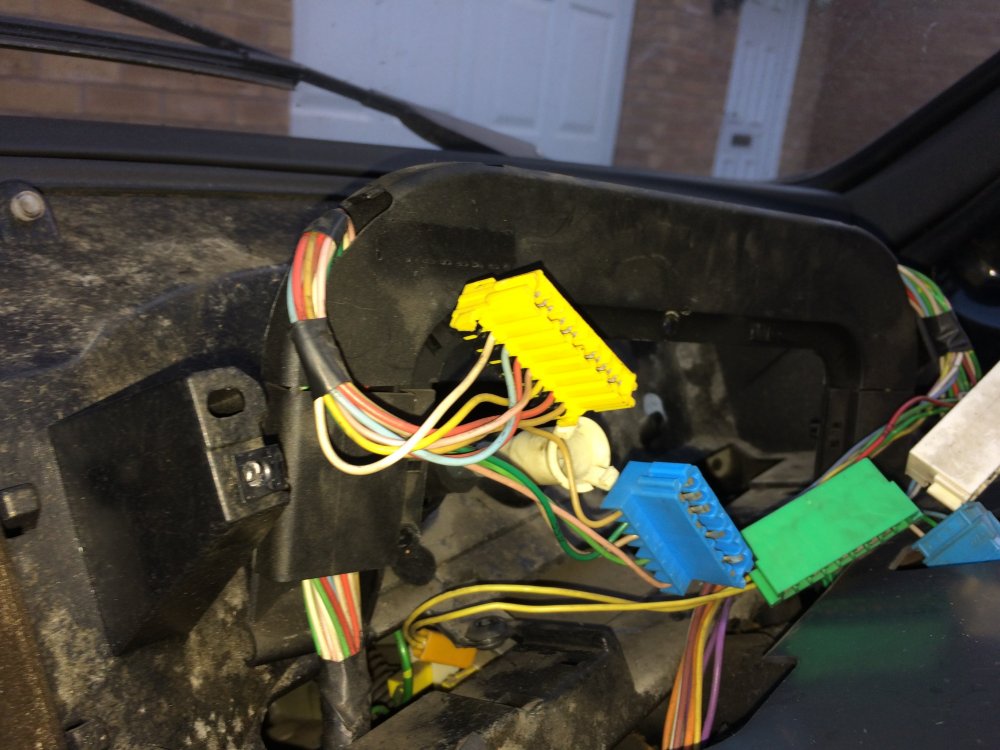

I do have a question about the Yellow, Blue, Green and White connector that come off of the instrument cluster cable tidy (see tartanbloke's first pic)..... where do these plug into exactly?

Share this post


Link to post
Share on other sites
Tom Fenton

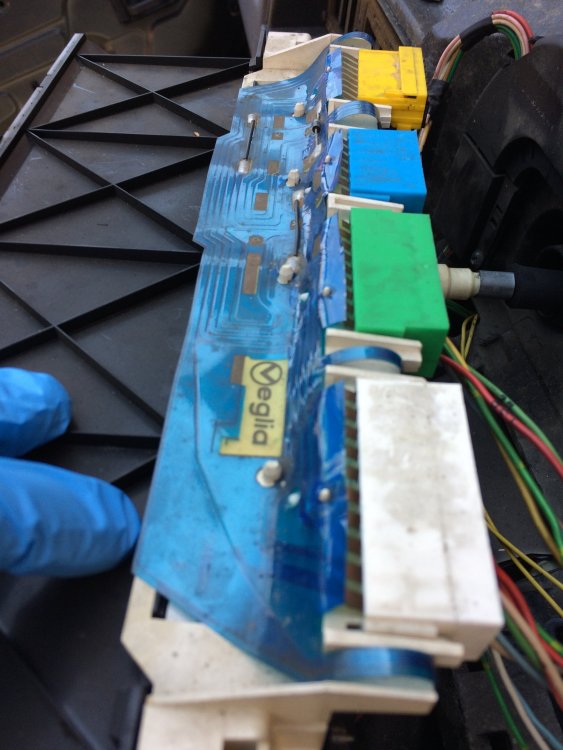

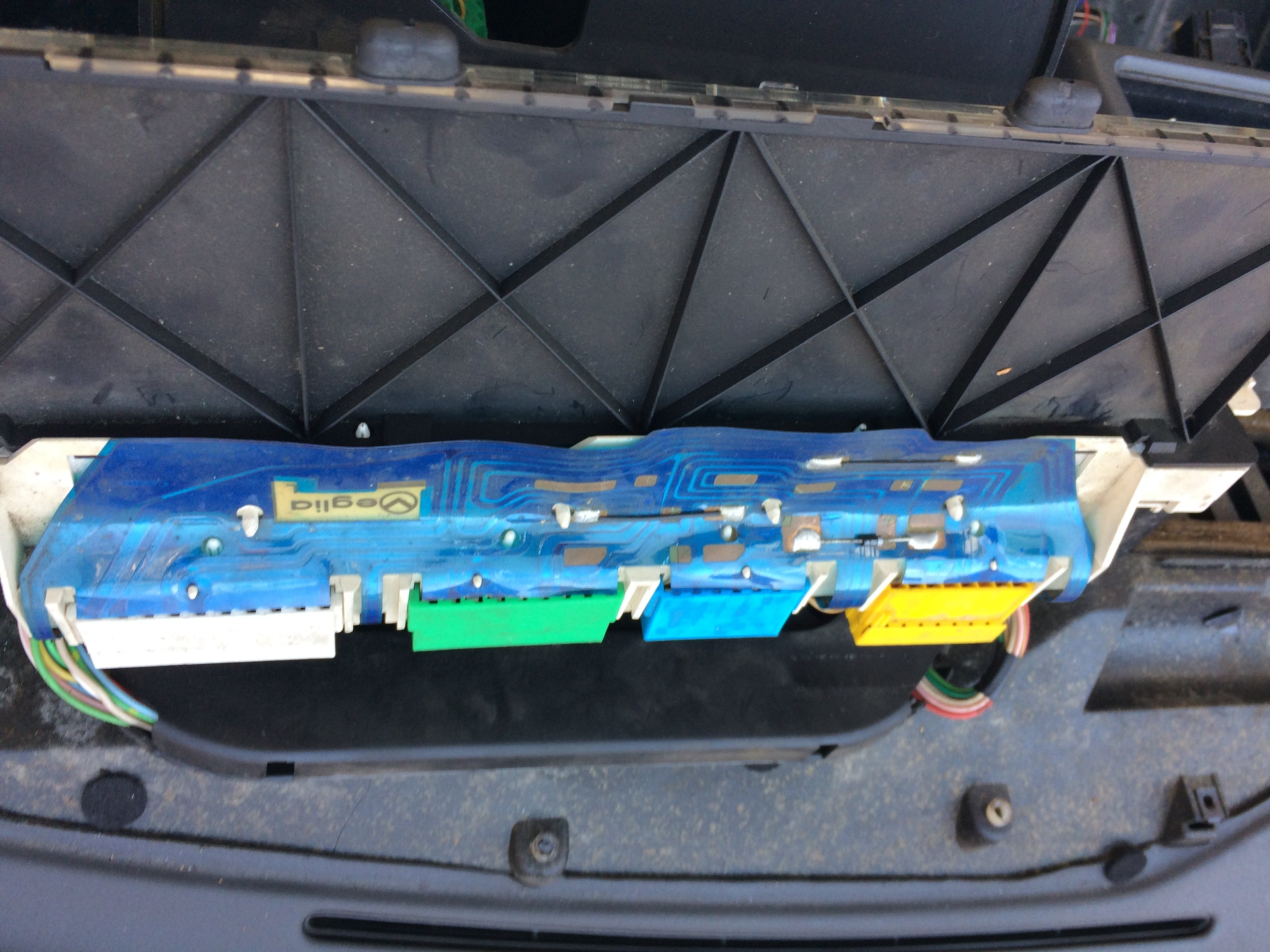

Plugs you mention go into the back of the clocks, I’m fairly sure that each will only fit in it’s correct place.

Don’t forget the blue 3 pin that does the Rev counter, and the speedo cable whilst you are there.

Share this post


Link to post
Share on other sites
tartanbloke

Pictures attached.



Share this post


Link to post
Share on other sites
R0B

Thanks again! Very primitive the way they connect. Im back with more questions tho (sorry). i have a few outstanding connectors which i cannot find anything for them connect into so wondering if these are actually redundant and used for higher spec models?







Share this post


Link to post
Share on other sites
R0B

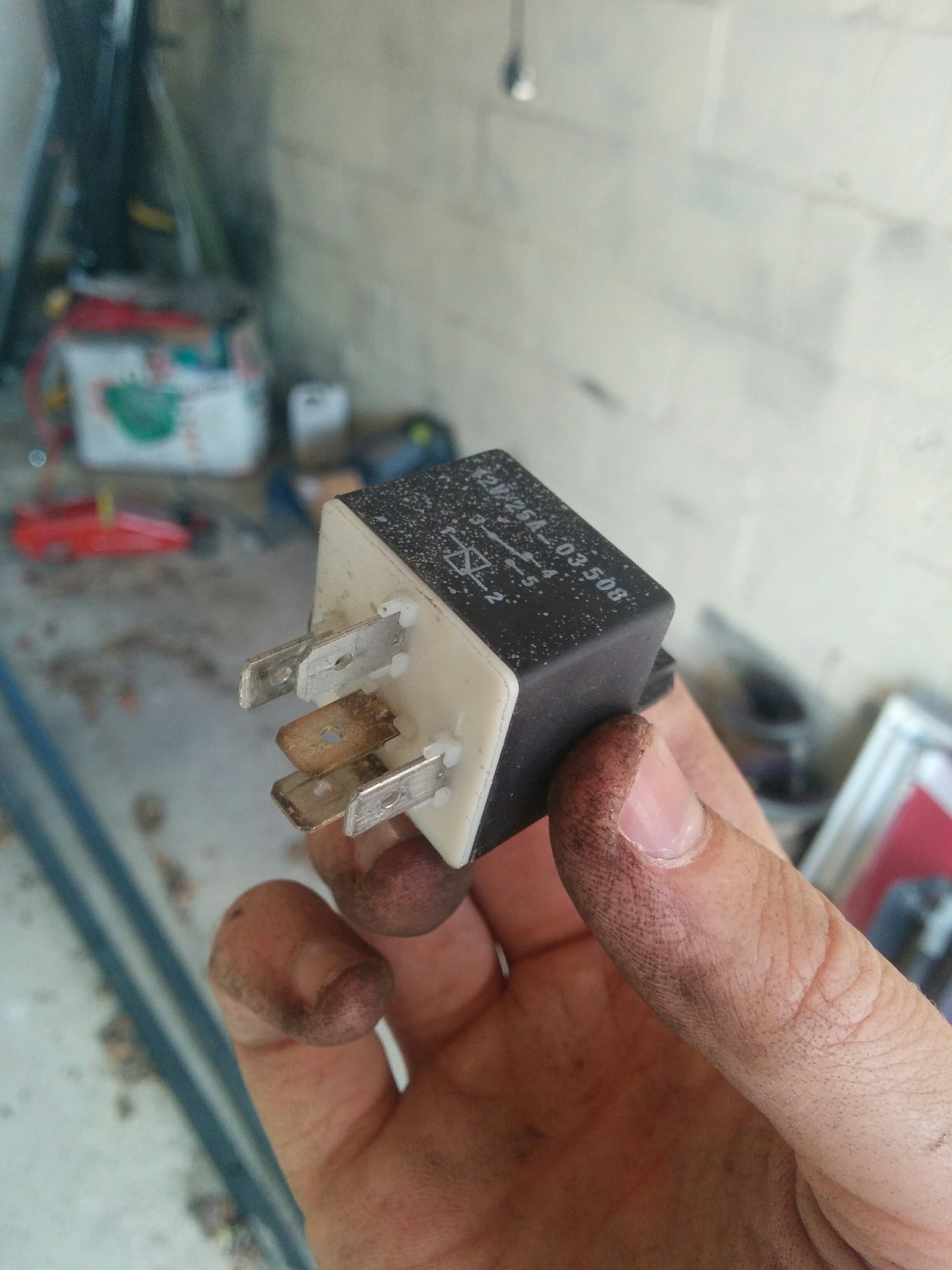

Ive also found this relay laying around on the floor of the car? Can anyone identify it and advise where it is supposed to be fitted?


Share this post


Link to post
Share on other sites
jackherer

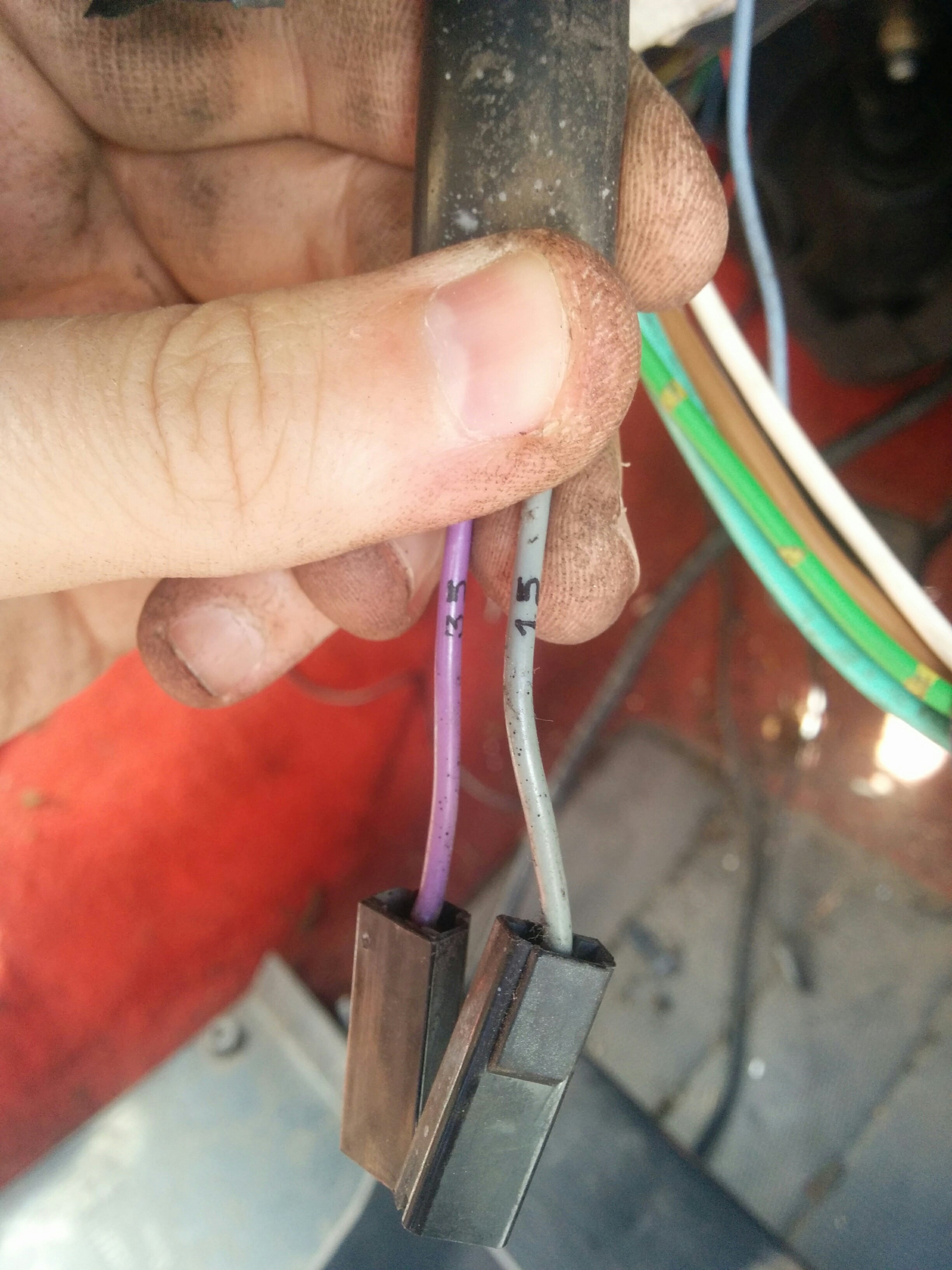

The purple wire and the grey wire go to the brake light switch on the pedal.

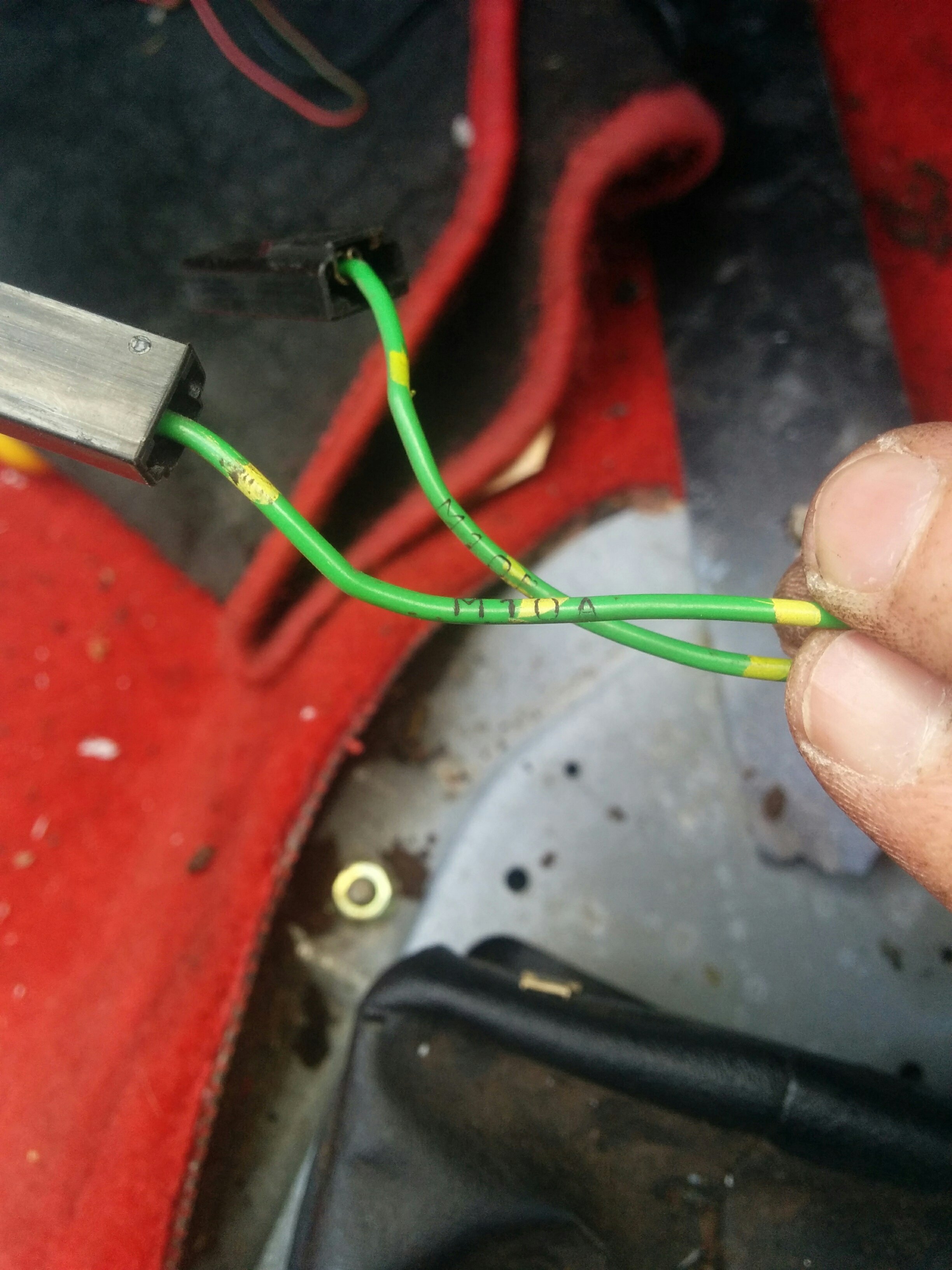

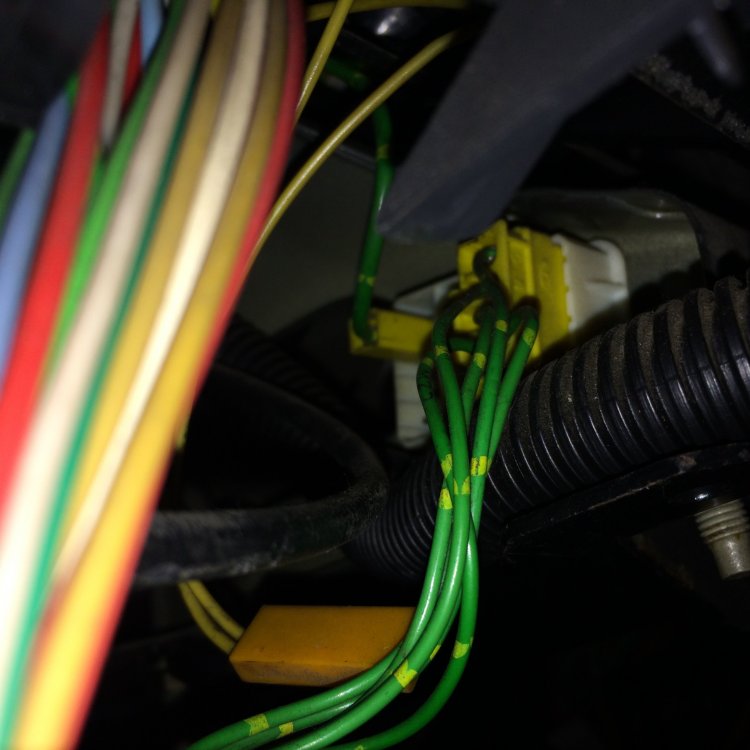

The green and yellow striped wires plug into an earth block that should be bolted to the right side of the steering column bracket.

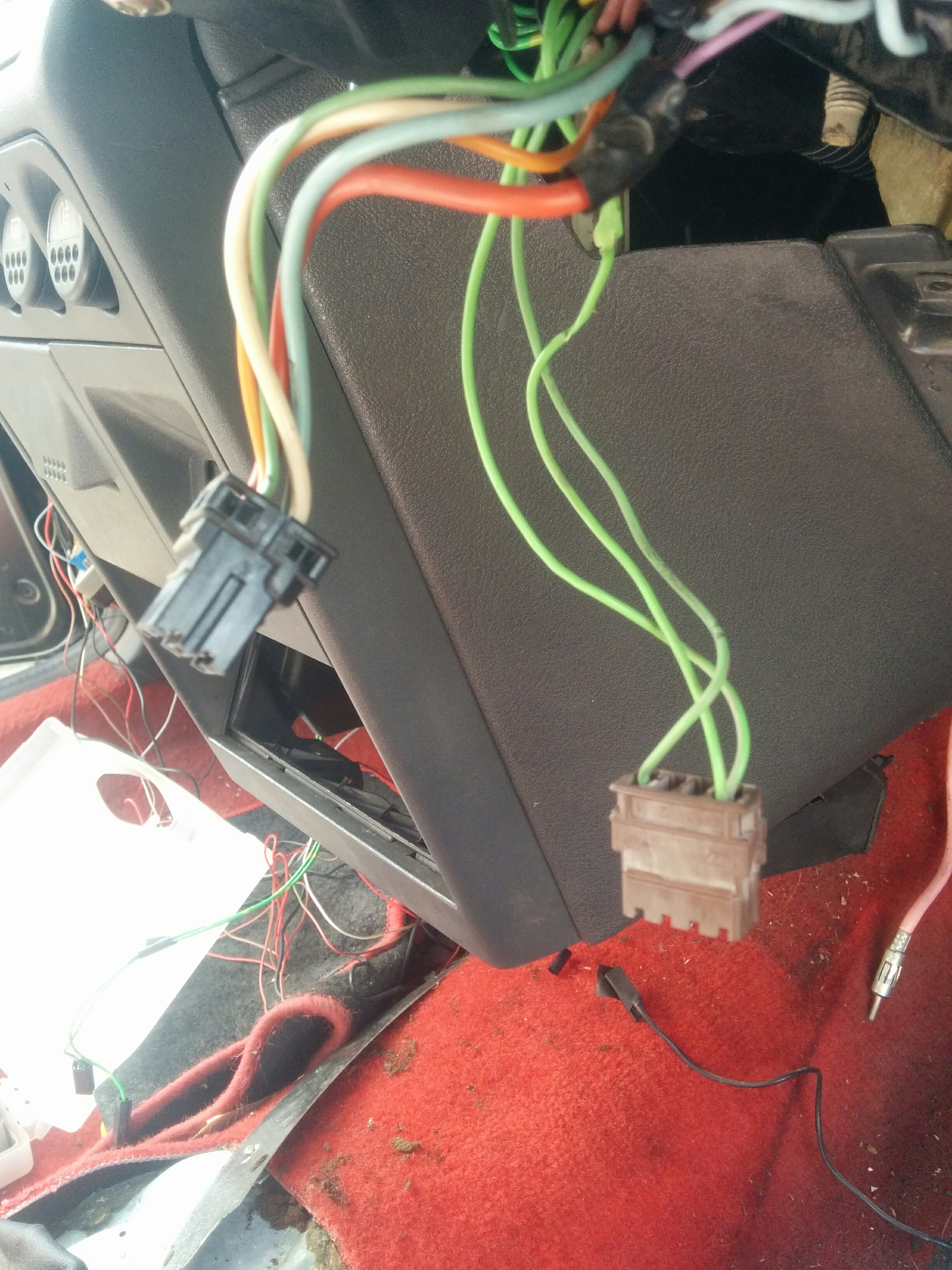

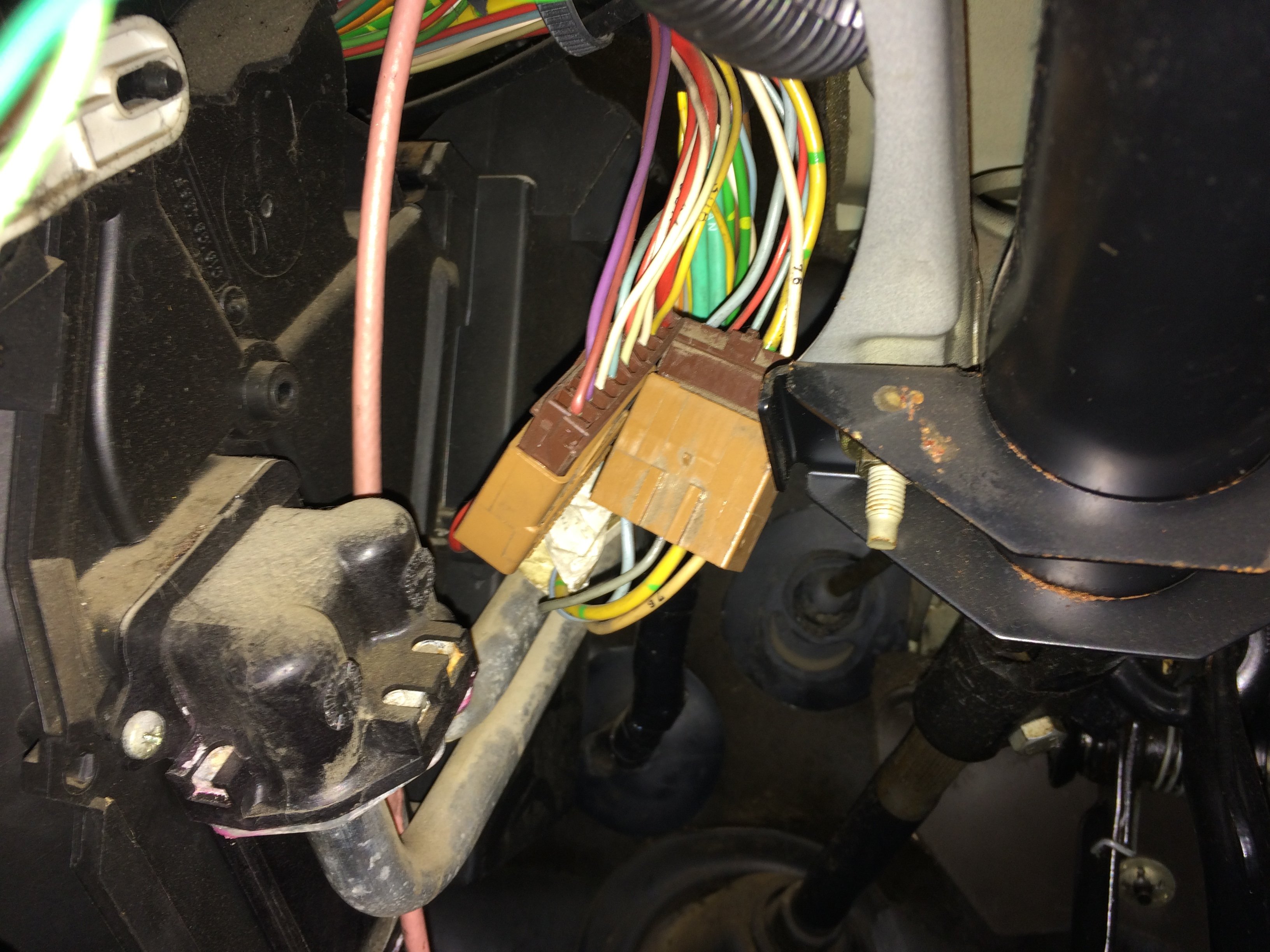

The brown 4 pin plug with green wires on it goes to the dash dimmer rheostat dial on the bottom trim panel for the steering column, you wont get any dash back lighting with that unplugged.
