Gavin Waddell 18 Posted September 28, 2014 I am reinstalling a loom in my car, as the old one had been chopped up a bit to much. I have pretty much got everything plug backed in but have five plugs that i dont know where they go. Any one got an idea? the first four come out near the fuse box the last one comes out in the centre console ( i know that its not the clock, or thr cigarette lighter thanks gavin Share this post Link to post Share on other sites

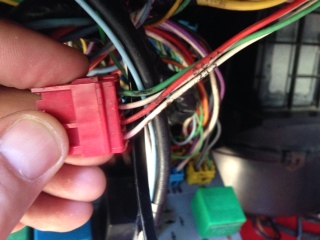

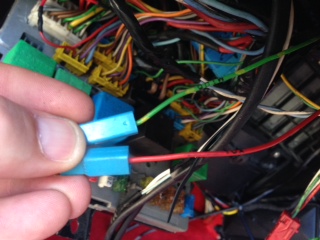

welshpug 1,626 Posted September 28, 2014 blue pair is the glovebox lighting, red is part of the stereo wiring iirc. look for the wire numbers. Share this post Link to post Share on other sites

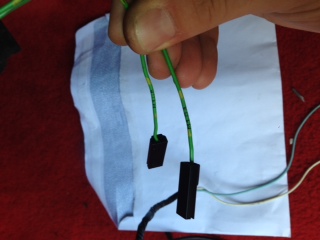

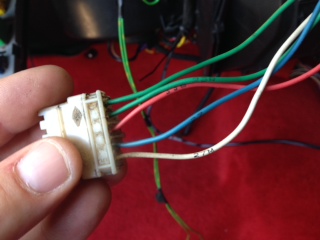

Slo 283 1 Cars Posted September 28, 2014 1st pic glovebox light switch 2nd pic no idea 3rd pic is a spare i think could be radio as wp says above 4th pic glovebox light 5th pic heater blower wiring dash control Share this post Link to post Share on other sites
MikeC 10 Posted September 29, 2014 What are the wire numbers on number two? I have a soft copy of the wiring diagrams from the workshop manual here on my computer Share this post Link to post Share on other sites
MikeC 10 Posted September 29, 2014 Is the second the instrument rheostat? Numbers Share this post Link to post Share on other sites
Anthony 1,000 Posted September 29, 2014 Is the second the instrument rheostat? Numbers No, that's a four pin brown plug (with only two wires) Share this post Link to post Share on other sites
MikeC 10 Posted September 29, 2014 Can't make out the numbers from the pic Share this post Link to post Share on other sites

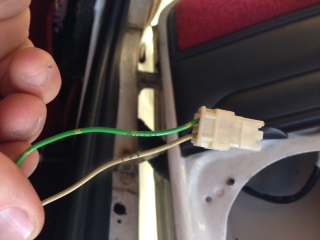

Gavin Waddell 18 Posted September 30, 2014 The beige cable is 14 j And the other m106 Share this post Link to post Share on other sites
Stu 18 Posted September 30, 2014 i think that red plug (pic 3) is the rear speaker connector that goes to a sub-loom to the rear. Share this post Link to post Share on other sites
Slo 283 1 Cars Posted September 30, 2014 Wire 14 is the dashboard illumination circuit the J is just a location id, connect a bulb to the wires and see if it dims with the lights on while turning the dash lights dimmer Share this post Link to post Share on other sites
Gavin Waddell 18 Posted September 30, 2014 Thanks everybody, pretty much got it worked out. Gavin Share this post Link to post Share on other sites
MikeC 10 Posted September 30, 2014 14j and m106 is showing as being connected into the fuseboard. PM me your e-mail and i will e-mail you the drawings if ya like. Share this post Link to post Share on other sites
Gavin Waddell 18 Posted October 1, 2014 Hey mike Thanks for your help, you say it plugs into the fuse board, only thing is my fuse board is already full? The loom I'm installing is not the original one I bought it off a forum member. Is there maybe a difference between ph1.5 and ph 2 looms, as I have an extra plug which I reckon is for electric windows. Gavin Share this post Link to post Share on other sites
MikeC 10 Posted October 1, 2014 Perhaps gavin. I have mailed the drawing to you. The type of fuse board you have will be dependant on the chassis number. I might be able to dig out the phase two drawings but it will take a few days. Mike Share this post Link to post Share on other sites
Gavin Waddell 18 Posted October 2, 2014 If you could find the phase 2 that would be great that way I can cross reference the 2. Thanks again mike Share this post Link to post Share on other sites
