ORB 227 1 Cars Posted December 30, 2012 Does anyone have a pic of the loom as above? I could do with making/getting one to replace my AC setup that i have pulled out? Ta Share this post Link to post Share on other sites
Simes 248 2 Cars Posted December 30, 2012 I don't have a pic I'm afraid but I think I might have a complete one hiding in the garage. £15. Share this post Link to post Share on other sites

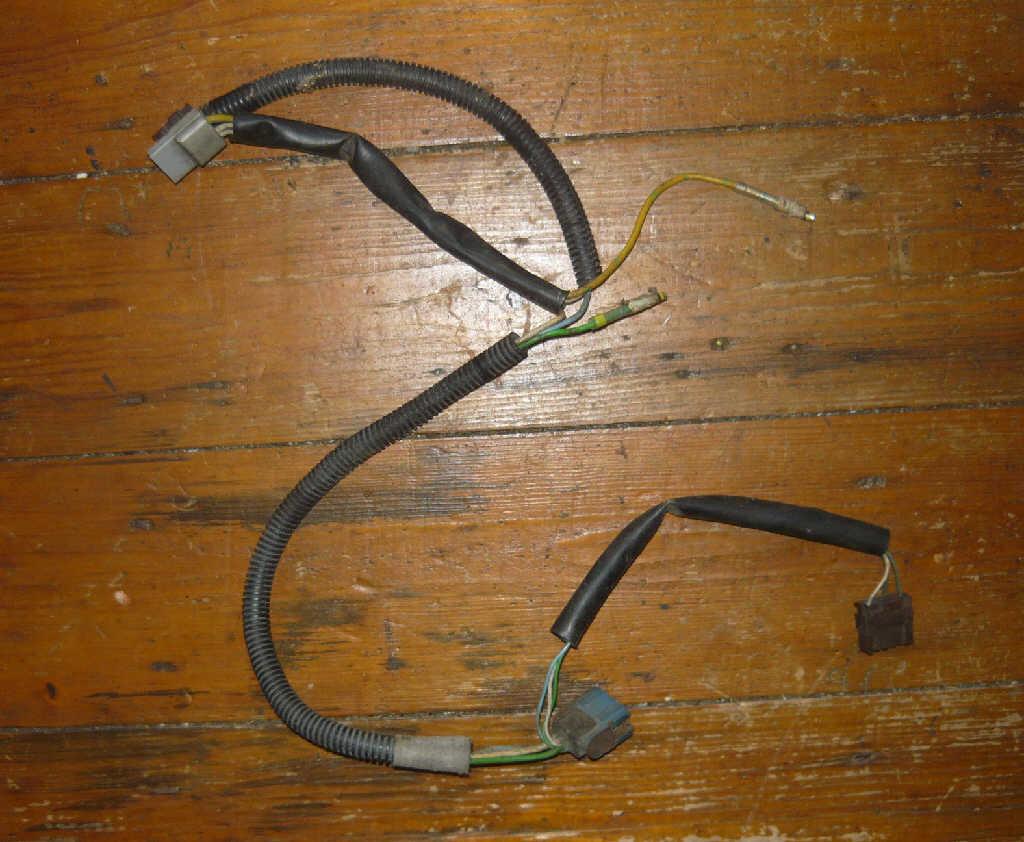

pug_ham 242 3 Cars Posted January 2, 2013 This a the fan loom that I'm currently repairing, its currently missing the shunt box connection (green wire) & earth terminal (yellow / green wire). Blue plug goes to the radiator switch, brown plug near it is the test plug, bridging centre pin to either side will run fan on low / high speed, grey plug is to the fan & there is the brown plug for the speed resistor behind it. g Share this post Link to post Share on other sites
