205 With Vts/gti6 Engine, What Air Filter Are You Using

[kuuner 56 2 Cars]

for the people who use the search function: I bought a Green filter (GRB2.75) which suits straight on the TB (76 mm indeed) and mounted a little filter like writen above.

Edited January 22, 2013 by kuuner

[Para 82 2 Cars]

Could you show how this look ?

[kuuner 56 2 Cars]

freshly made.



[Anthony 1,000]

AFAIK you can't do that if you're running with a top radiator hose that's routed the normal way and a standard type/position radiator, hence many people using a short length of silicon hose to move the filter further towards the battery and giving clearance for the radiator hose.

[Para 82 2 Cars]

Yeah that looks good, I will have to buy some samco hose because my pipercross filter doesn't have the same diameter as manifold hole and as Anthony said my radiator hose is underneath.

[kuuner 56 2 Cars]

that i don't know, because i used the original Xsara hose, as you can see. But there must be a solution for it, because i found this picture on the internet. Shows that the coolent is routed beneath the airfilter.



[Para 82 2 Cars]

This is some neat layout, I like it. My one is bit of a mess at the moment, I need to look after all the cables and hoses because they are everywhere. Just finish fitting the filter with samco reducer and breathing filter. What can I do with those fuses ?



Edited January 23, 2013 by Para

[kuuner 56 2 Cars]

Original there are 2 options. Some 205's have a lock plate (?) with 2 nuts where you can bolt it straight on. Just like this one:





If your 205 doesn't have that, there is a second option with a loose strap/bracelet, like this one:



[glenwah 20]

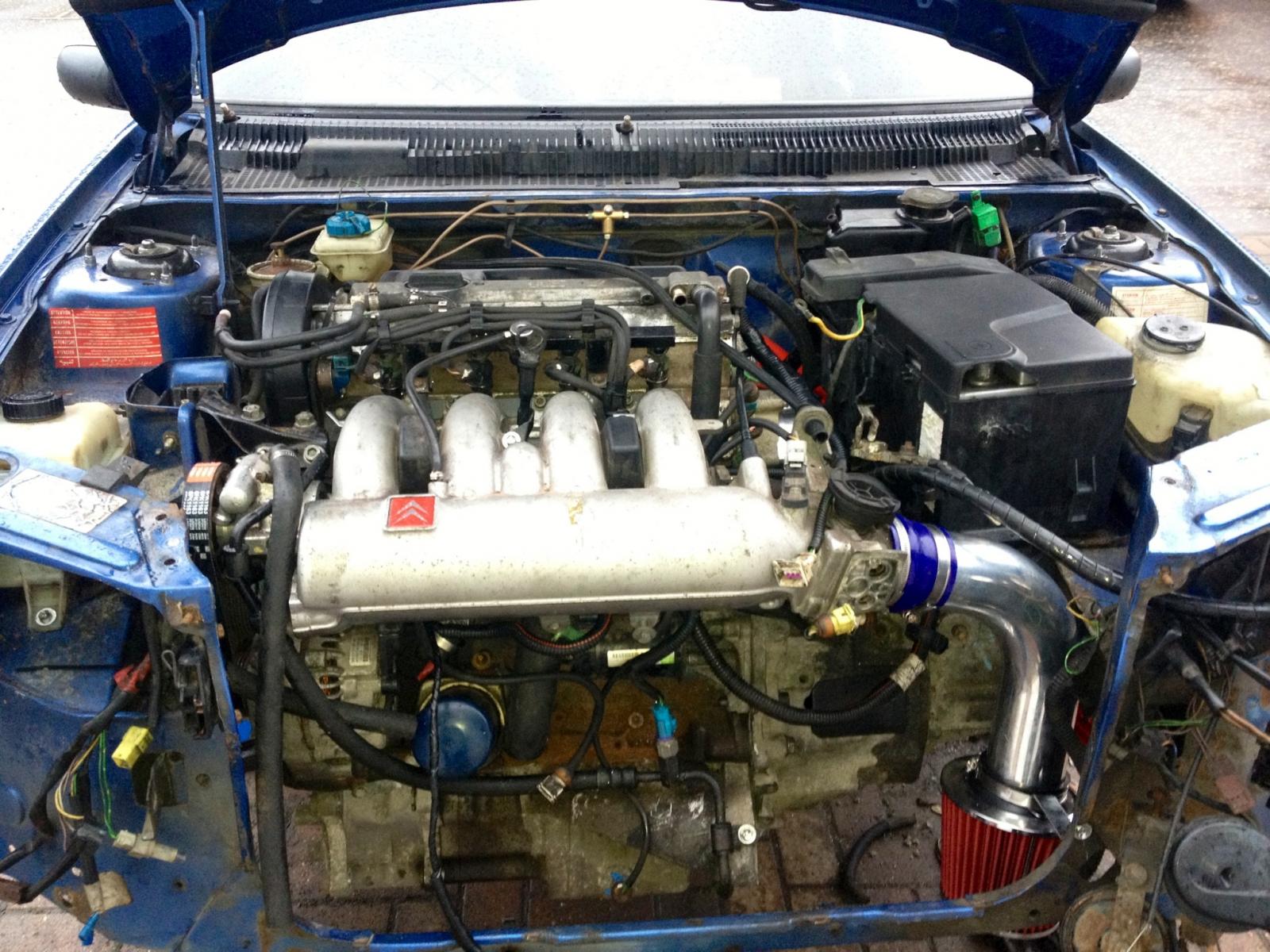

Check out item number 350588913312 on eBay, its what i got, has a really nice polished pipe that drops the filter below the engine away from all the heat, also has a pipe that goes to the icv so no need for a seperate filter, looks great when fitted.

[Para 82 2 Cars]

Looks good and it's way cheaper then Pipercross or K&N, have you got the picture with this fitted ?

[glenwah 20]

Sticks out to the side of the rad as well so only draws nice cool air????

[Para 82 2 Cars]

Personally I would be worried that filter will be gathering to much dirt from the road being located down there.

[glenwah 20]

It's only a summer car and at that price you can buy a new one every year???? it sits inside of the inner wing and just behind the valance so it's not in direct line of any major dirt.

[kuuner 56 2 Cars]

not only dirt. I should be more worried about water.

[glenwah 20]

Each to there own but this car won't be seeing any water.

[ablister 31]

My setup uses a subaru elbow and a k+n filter (both already fitted to the car so unsure what they were originally for) and it looks a good fit. Will try get numbers off both if any use to others?
