205 Wiring Conversion For Mi16

[Artemide 1]

That's the serial number .



The code will be on the other plate.



Where could this plate be located exactly?

[Artemide 1]



From the drawing the pipe from header tank shouldn't be connect to the heater matrix it should connect to 2, so coolant header tank to 2

1 should connect to the to the heater matrix



I connected the heater matrix to 1 and everything else is connected, but still remains coolant header tank and 2. It just doesn´t seem legit to connect, since on is 10mm and other 15 in diameter:

[welshpug 1,623]

the pipe is not a constant diameter.

[Artemide 1]

the pipe is not a constant diameter.



Sorry, what does that mean?

[luggy 13]

Sorry, what does that mean?

That both ends of the pipe aren't the same size

[cybernck 400 1 Cars]

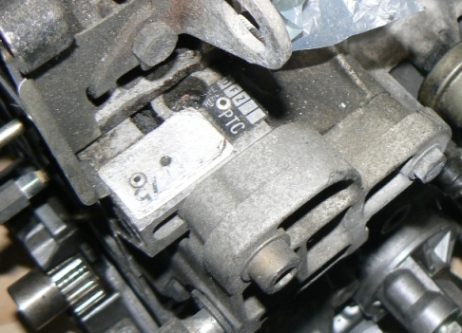

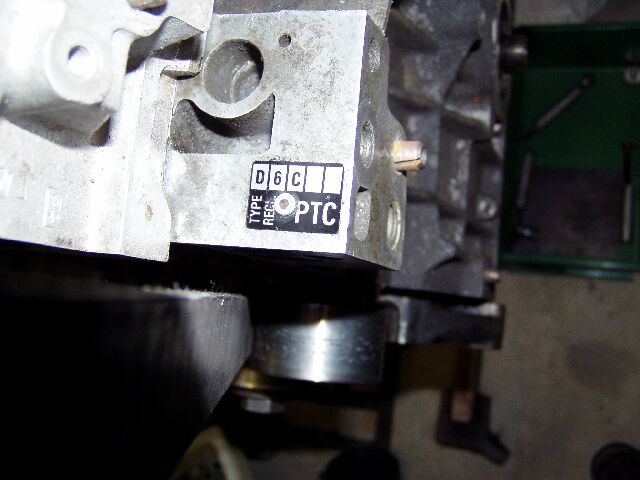

The other plate is usually located somewhere near the alternator:





Thanks to petert for the pics .

[Artemide 1]

That both ends of the pipe aren't the same size



Then how shall I connect these two?

[Artemide 1]

Well got the car runnin, thanks everybody
