Xu10j2 Mm8p Ignition Map

[sub205 5]

can someone readout a magnetti marelli ecu ignition map for me or has the correct one?



rpm vs map/tps vs advance



would be great!

[pug_ham 241 3 Cars]

It might take a while to get an answer (if ever) but Wayne @ Chipwizards could be able to help out if no one else can.



I have an ECU but no method of extracting the data from it.



Graham.

[sub205 5]

It might take a while to get an answer (if ever) but Wayne @ Chipwizards should be able to help out if no one else can.



I have an ECU but no method of extracting the data from it.



Graham.

reading out the flash/eeprom is no big deal because i got equipment for that.

i asked several times here for a good basic ignition map for xu9/xu10, but i got no definite answer. tomorrow i'll put the megasquirt in for a test, but only temporarily... hopefully i get a good basic mapping. anyway, maybe i'll connect some headphones and try to hear the knock on my own.

[sub205 5]

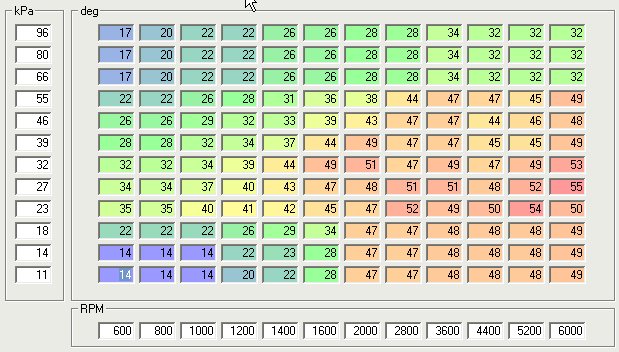

could this be possible?

[James_R 3]

That is very high peak advance you have there!!! want it to be more like 30-35deg advance max to start off.



Also on no load load (closed throttle/cruise) you usually have high advance to aid economy.



go to emerald m3dk load up the free software and load up an example map you'll get an idea what the ign map should shape like.



James

[sub205 5]

could this be possible?



whats normal advance for idle? maybe i should just incorporate an offset and recalculate the values.

[sub205 5]

whats normal advance for idle? maybe i should just incorporate an offset and recalculate the values.

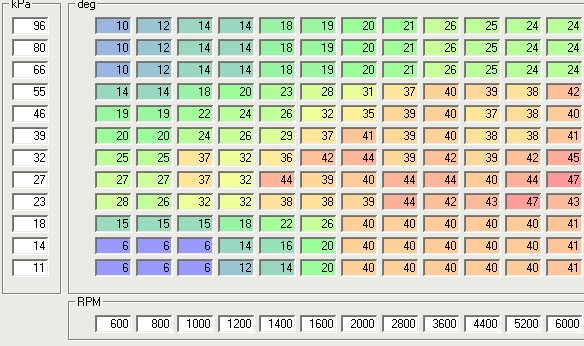

probably looks better now

[sub205 5]

finally got the ignition map, calculated the offset and factor from the mi16-bin, hopefully correct!



XU10J2

96   16.1  18.2  20.3  20.3  23.8  24.5  25.9  26.6  31.5  30.1  29.4  29.4
80   16.1  18.2  20.3  20.3  23.8  24.5  25.9  26.6  31.5  30.1  29.4  29.4
66   16.1  18.2  20.3  20.3  23.8  24.5  25.9  26.6  31.5  30.1  29.4  29.4
55   20.3  20.3  23.8  25.9  28.7  33.6  35.7  41.3  44.1  43.4  42.0  46.2
46   24.5  24.5  27.3  29.4  30.8  36.4  39.9  43.4  44.1  41.3  42.7  44.8
39   25.9  25.9  29.4  31.5  34.3  41.3  45.5  43.4  44.1  42.0  42.0  45.5
32   30.1  30.1  41.3  36.4  40.6  46.2  47.6  43.4  46.2  43.4  46.2  49.0
27   32.2  32.2  41.3  37.1  47.6  43.4  44.8  47.6  47.6  44.8  48.3  51.1
23   32.9  30.8  36.4  36.4  42.0  42.0  43.4  48.3  46.2  46.9  50.4  46.9
18   21.0  21.0  21.0  23.8  27.3  31.5  44.1  44.1  44.8  44.8  44.8  45.5
14   12.6  12.6  12.6  20.3  21.7  25.9  44.1  44.1  44.8  44.8  44.8  45.5
11   12.6  12.6  12.6  18.2  20.3  25.9  44.1  44.1  44.8  44.8  44.8  45.5
kPa	600   800  1000  1200  1400  1600  2000  2800  3600  4400  5200  6000  rpm

[sub205 5]

and here's the fuel map, just fyi:



 96	117   117   117   117   114   111   114   116   113   113   113   110
80	117   117   117   117   114   111   114   116   113   100   102   106
66	110   110   110   110   102   100	98	98	98	96	99   103
55	107   107   107   107	97	96	96	95	95	93	96   100
46	104   104   104	96	95	94	96	96	94	94	96	98
39	104   100	96	97	96	95	97	95	95	94	96	97
32	100   100	96	97	95	95	96	96	97	95	96	97
27	100   100	98	96	95	95	96	96	96	96	99	99
23	100   100	99   100	95	96	96	94	96   100   100	99
18	100	96   100	98	95	95	94	93	96   100   103   102
14	100   100   100	96	98	96	96	96	96   102   102   102
11	100   100   103   101	98   100   100   100   100   102   102   102
kPa	600   800  1000  1200  1400  1600  2000  2800  3600  4520  5400  6320  rpm

[RossD 43]

Good stuff - I've been dabbling with reverse engineering the maps from an HDi ECU ( Bosch EDC15) for a bit, so talk of offset and factor is strangly familiar!
