BamBamGTI

Mi16 on Omex 500 no fuel

Recommended Posts

BamBamGTI

Hello all,



Haven't been around these parts for a few years due to having a family. Now during lockdown I went and got myself a winter project - 205 mi16 on Jenveys.

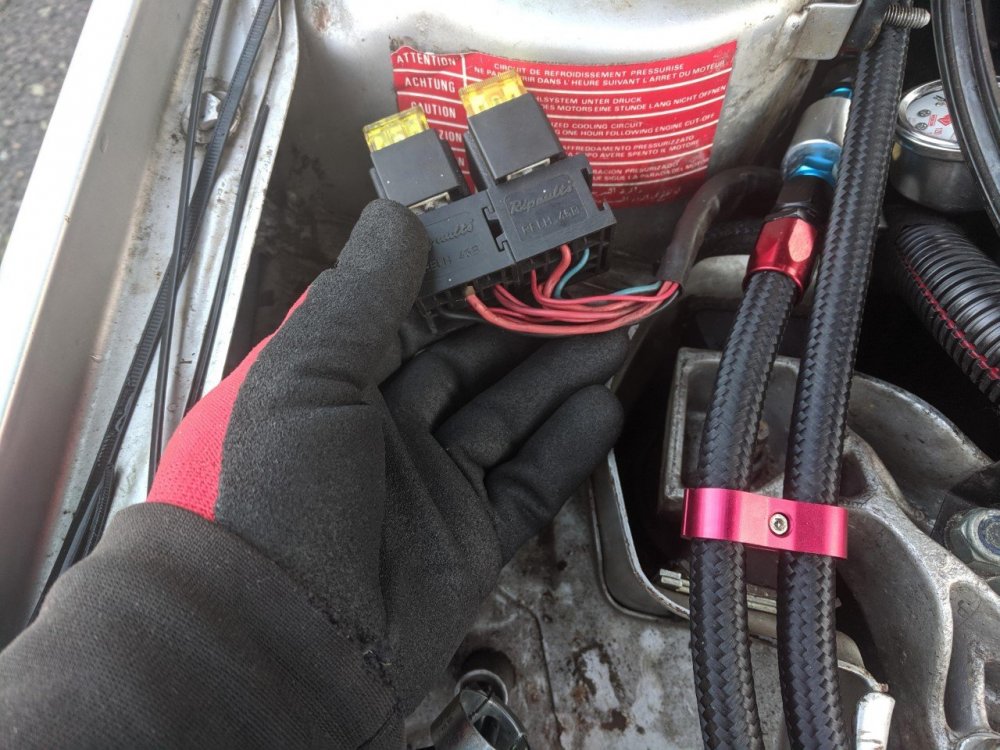

The car was a unfinished project but ran... Just about. It's on an Omex 500 base map and what looks like a mi16 loom with I'm guessing a couple of relays in the engine bay for the fuel pump. I'm no expert at electrical issues but I tested the relays with ignition off and am getting 12v on both. Tested back at the pump and am getting 0.4v with ignition on. The pump works - tested by applying 12v and ran like a dream.



Where next? I was going to test at the relays with ignition on... Guessing I could have a dodgy relay?



The ignition wiring and engine loom was a bit of a mess.











Share this post


Link to post
Share on other sites
BamBamGTI

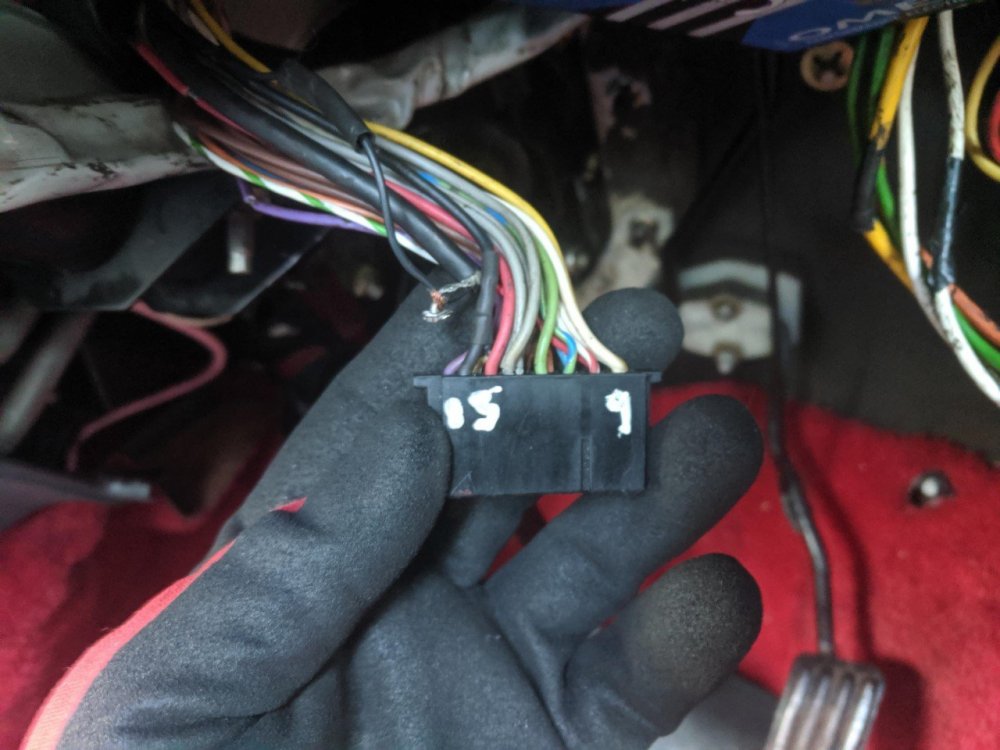

It was a connector pushed out under the dash from brown loom connector to relay. Thanks for the help...

Share this post


Link to post
Share on other sites
dcc

It's a diffult thing to reply to when it's all custom wiring for stuff! Good news you got it sorted

Share this post


Link to post
Share on other sites
BamBamGTI

What is the process when installing an aftermarket ecu? I thought the Omex's came with a loom? Looks like they used the mi loom as there was a bunch of cut wires in the engine bay.

Share this post


Link to post
Share on other sites
Tom Fenton

The is no set process, it depends who has done it and how they felt on the day. The standard 205 ECU loom incorporates a lot of the sensor wiring for the instruments, so its necessary to re use or re wire this when converting.

Share this post


Link to post
Share on other sites
dcc

Cheap and cheerful is to cut and splice. Often leads to headaches like this though :)

Share this post


Link to post
Share on other sites
