Jp4 with be4r

[Jp4s205 0]

Im hoping if anyone else has fitted a be4 to a jp4 and could shed some light on my issue. I have fitted my engine into my 205 but the gearbox mount stud does not reach the gearbox mount bush. So i dont know if i require a different mount on the gearbox side or do i need to move the mount and weld it so if someone has any information on this conversion it would be very appreciated. Ive also attached a photo so you can see my issue, the hole with the blue loctite is were the stud is suppose to be. the other photo is to show which mount i have bolted to the gearbox. Ignore all the dirt she will be getting cleaned up and repainted im just test fitting at the moment

[dcc 855]

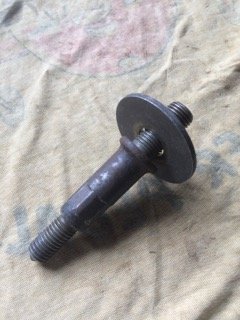

IM PRETTY SURE YOU DITCH THAT BRACKET THAT IS BOLTED TO THE GEARBOX AND FIT A 205 STUD/WASHER TO THE BOX.



SORRY ABOUT THE CAPS IT WONT TURN OFF

[welshpug 1,737]

dan is correct, you need the 205 be stud and washer.

[Jp4s205 0]

I will give it a try im sure i have one somewhere. cheers guys
