DamirGTI

Liner protrusion too high @ 0.15mm ?

Recommended Posts

DamirGTI

Had to resurface the block base , and afterwards i'm left with what seems to be a little high liner protrusion measuring 0.15mm on all the 4 liners (measured with liners and base cleaned and without O-ring fitted) .



Haynes says maxi liner protrusion is 0.10mm , though i also found info (as well from the Haynes) that the 0.18mm is maxi ?!? ..



Anyways , is the protrusion measured at 0.15mm considered too high or not ?



D

Share this post


Link to post
Share on other sites
Thijs_Rallye

If I remember correctly the inner two liners should protrude further than the outer ones and keeping in mind the difference between an outer one and inner one shouldn't be more than 0,05 mm. I'll have to look in my documentation tonight to have the exact figures unless someone beats me to it ;) .

Share this post


Link to post
Share on other sites
DamirGTI

From what i have found says :



0.08-0.15mm (in the 309 haynes)

0.03-0.10mm (in the 205 haynes)



For blocks up to a 1987 its - 0.08-0.15mm  , from 1987 its - 0.03-0.10mm .



... if that's right by OE .



I do not have any OE "material"/book which has liner protrusion data/chapter .



Thanks !

D

Share this post


Link to post
Share on other sites
Thijs_Rallye

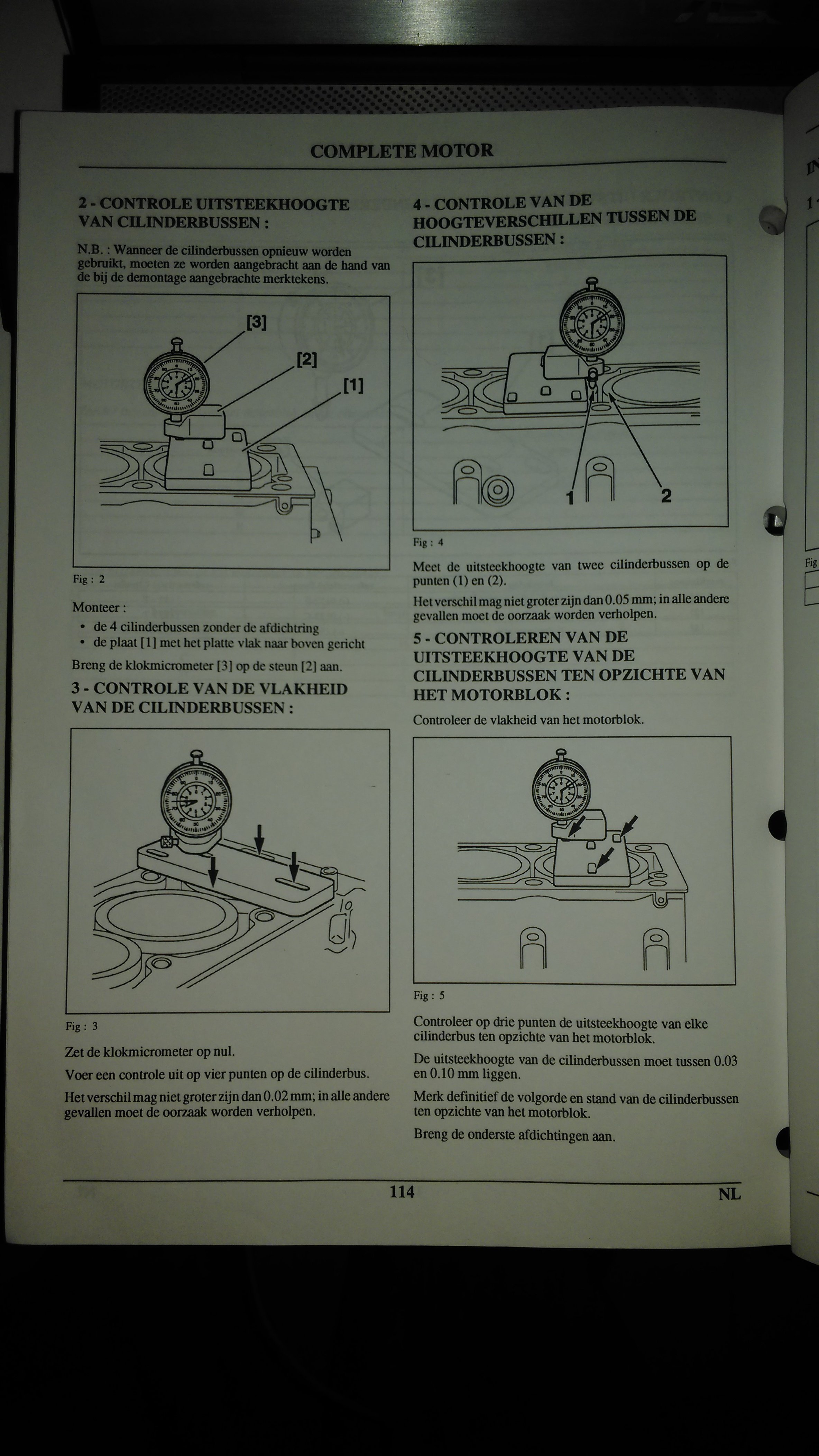

All measurements should be carried out without the o-rings under the liners.



Flatness: measure 4 points on top of the liner. Deviation max 0,02mm



Liner to liner protrustion: measure (top view) left liner at 3 o'clock and liner to the right at 9 o'clock. Deviation max: 0,05 mm



Deck protrusion: measure 3 points at top of the liner to the engine deck. Protrusion should be within 0,03 and 0,10 mm.






  • Like 2

Share this post


Link to post
Share on other sites
DamirGTI

... means i have 0.05mm more than maxi spec. on the liner-to-block protrusion .



Great ! now what to i do ?! mill the liners 0.05mm down ?



Anyone knows what effect might make this + 0.05mm more protrusion , is it still sufficient for the HG clamping properly on both the fire rings and oil/coolant passages or needs lowering the liner protrusion between 0.03 - 0.10mm range as a must ?



Thanks

D

Share this post


Link to post
Share on other sites
wicked

I would just pop the head on...



1.6 GTI GrpA spec specifies 0.08-0.15mm

1.9 GTI GrpA spec specifies 0.09-0.11mm

205T16 spec specifies 0.27-0.30mm



Which would hint me that 0.15mm would work.

Most important is that liner to liner diff is minimal/within spec.



Edited by wicked

Share this post


Link to post
Share on other sites
Thijs_Rallye

It will likely work but it could become a headgasket eater. Combustion pressure is higher in a 1.9 and I think that is the reason they've specced the protrusion down. (to keep the headgasket deformation down) But these are all just gut feels :P.


As for the Turbo16, such an engine doesn't really compare since headgasket longelivety isn't really an issue because they get pulled apart after each event.



Anyways, you can either have the liners skimmed a little or re-machine the liner seats in the engine block.





Edited by Thijs_Rallye

Share this post


Link to post
Share on other sites
DamirGTI

Think i'll fit the head on , and will see what happens ! .. with thicker "repair" 1.5mm HG .



.. as really no time nor money for machining parts now , and need to get the car going asap as it's my daily .



Thanks !

D

Share this post


Link to post
Share on other sites
Thijs_Rallye

It'll likely be fine like Rolf said.

Share this post


Link to post
Share on other sites
