Oil Filter Housing

[James Cornell 10]

I know this is going to sound silly but I am in the final stages of putting my car back on the road and I have fitted the oil cooler and now I have come to bolt the oil filter housing and I just can't sus it out.



I have the cast bit that bolts on to the engine block (with the two oil pipes coming out of it) and I have a special but which bolts onto the thread in the engine and the cast part slides I over the top of it nicely but how does the housing bolt in??? Is there another threaded part that goes into it to hold the housing in place???



I have been really careful to make sure I saved all of the bolts and kept everything together but I am wondering if I have lost this part?



I'm panicking a little as I need the car back on the road for Monday and I can't finish until I sort this out.



I can take pictures if it helps, thank you thank you in advance

Edited December 31, 2014 by James Cornell

[welshpug 1,620]

you need the extension bolt, if you cant find that just screw the filter directly to the block till you find it.

[Alan77 78 1 Cars]

As Mei says, just go filter to block.

A normal road 205 runs just fine all day without an oil cooler. I ditched mine years ago after the pipes perished.

[James Cornell 10]

Given I really want to keep the car stock as a rock I really want to put everything back as it was, it sounds like I need to find the extension bolt...time to tidy the garage ????

[farmer 327 1 Cars]

They are NFP from Peugeot so have a good look.

[James Cornell 10]

Sorry to sound a bit dense but NFP?

[farmer 327 1 Cars]

No longer supplied as a part.

[James Cornell 10]

Ahhhh as with so many very small (but expensive) parts for classic pugs ????

[Ryan 99]

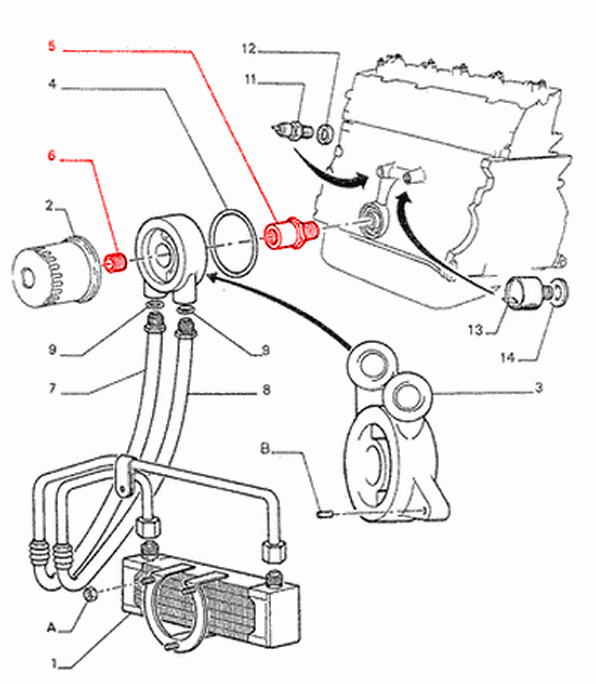

The parts you need are parts #5 and #6. #6 is a small threaded insert which should be still available as it's used on a lot of newer models. #5 is the extension bolt that is marked NFP.





Although I'm not sure that diagram is completely right. I always thought #6 screwed into the block, then the cast cooler take-off was held in place by #5. And the filter screwed onto the end of that?

[James Cornell 10]

Is this the fella?



http://pages.ebay.com/link/?nav=item.view&alt=web&id=400742021508

[welshpug 1,620]

no, looks nothing like the picture ryan put up, which I believe he is correct that it appears arranged the wrong way round.

[Miles 331 1 Cars]

No it's not, the link is just a std aftermarket connector, Stick a wanted add up as I know for one have got loads kicking around

[Ryan 99]

Do you have a photo of the parts you already have? Unless I'm mis-reading it sounds to me like you have the cast part and the extension bolt, and just need the small threaded piece.

[James Cornell 10]

Correct Ryan, I will clear the garage floor tonight and search behind the tool cabs and see if it has rolled behind them because I am also missing a hockey stick for the driveshaft intermediate bearing.



If I have no joy then I will post a picture of what I have got and post it

Edited January 1, 2015 by James Cornell

[James Cornell 10]

Ok it looks like I just need #6 which is a relief if they still make them ????



Thanks everyone

[Ryan 99]

They're about £6-7 from Peugeot, which is a bit steep for what it is, but there shouldn't be any trouble getting one as it's still used on current models. The part number is 1103 54.

[welshpug 1,620]

Check its not still in the block or the extension piece

[James Cornell 10]

I have checked the block and the extension piece is just #5 on the diagram. I've ordered one from peugeot and it should be there tomorrow morning £6.40 + VAT



Getting very excited now, just hope to God I have done a good job on the rebuild...
