B1ack_Mi16

[car_restoration] 405 T16 Restoration

Recommended Posts

B1ack_Mi16

Painted it all by myself in the barn, not perfect, but good enough ;)

  • Like 2

Share this post


Link to post
Share on other sites
johniban

id be happy with a paint job like that! looks top notch

Share this post


Link to post
Share on other sites
B1ack_Mi16

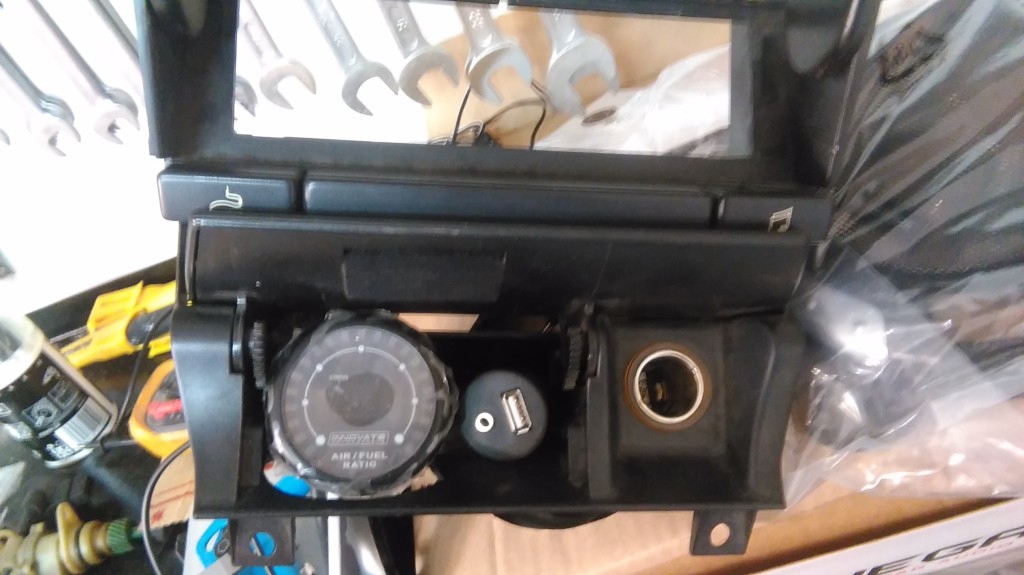

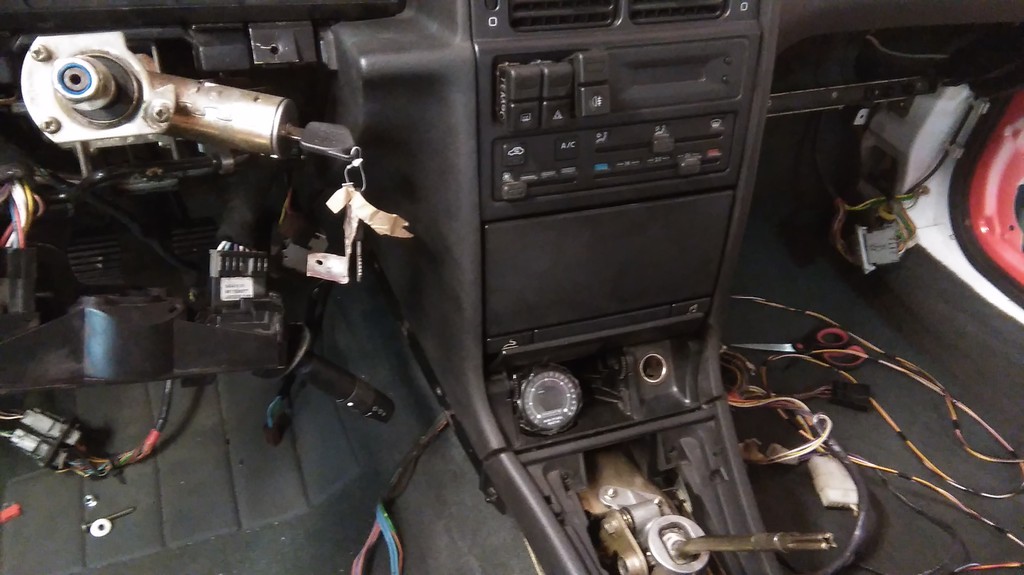

Just added a USB connector to the bottom of the centre console which can be used to connect the laptop to the ECU.




Also mounted the wideband lambda display with integrated controller in the ashtray area.


Share this post


Link to post
Share on other sites
B1ack_Mi16

Finally some more progress to report.

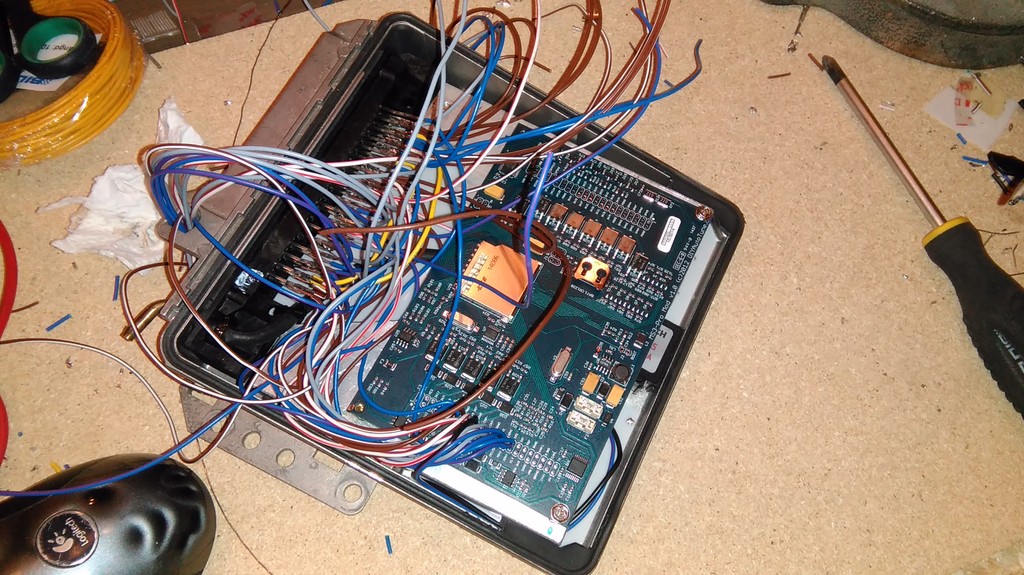

Started to work on the ECU this morning.

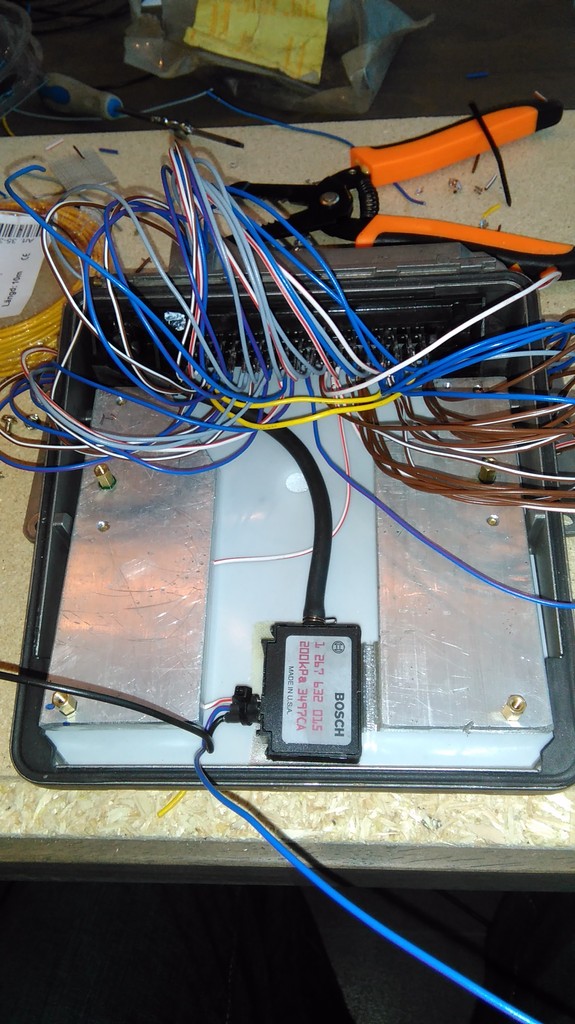

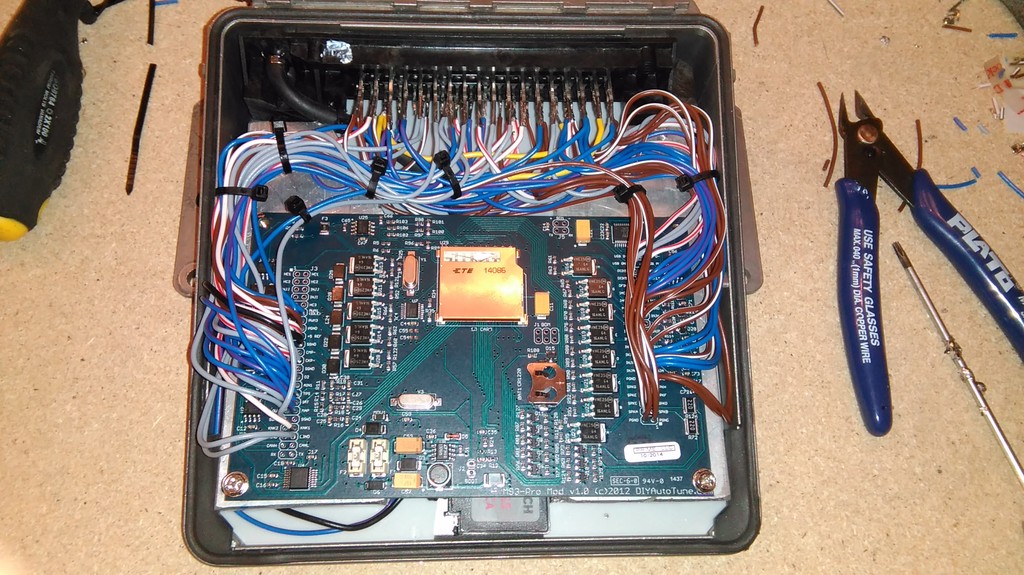

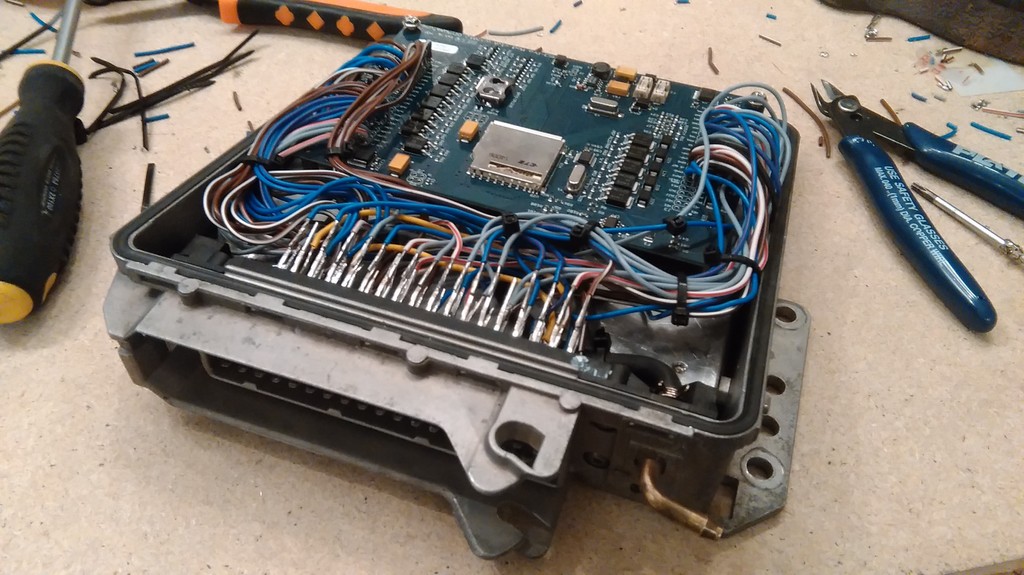

Started by soldering wires to all plug pins to be used, then continued by mounting orginal internal map sensor from the 2.0 8v turbo.

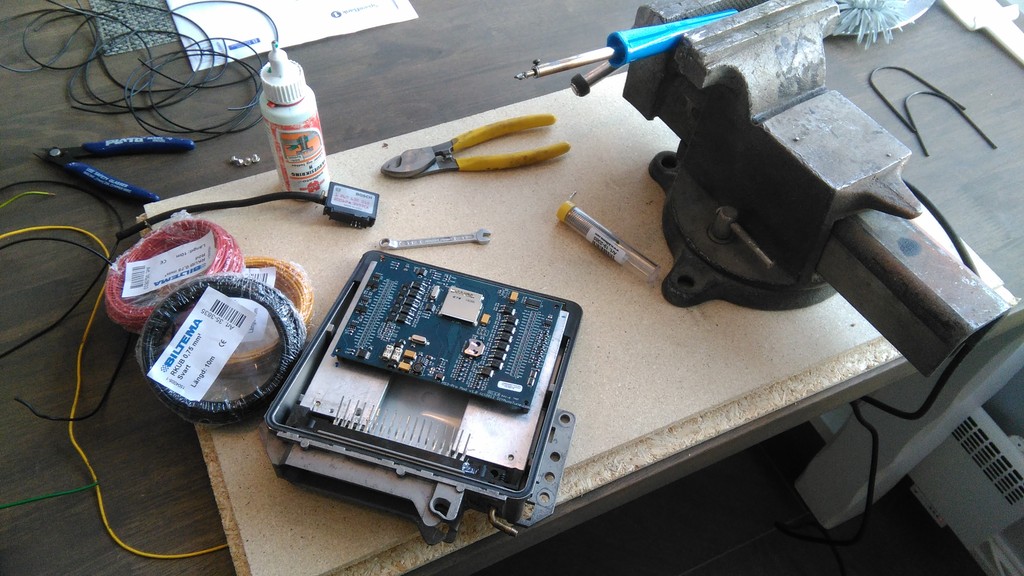

Soldering in progress





Finished product






  • Like 1

Share this post


Link to post
Share on other sites
calvinhorse

That's super cool, well done B)

Share this post


Link to post
Share on other sites
wicked

Nice! The MS3 Pro has nice spec's but the price is bit steep too..





Started by soldering wires to all plug pins to be used, then continued by mounting orginal internal map sensor from the 2.0 8v turbo.





Don't use that one; 200kPA is not enough for you... Why not stick to the external 3bar MAP?

Probably for the OEM look? In that case you might look for on old Audi S2/S4 ECU. 250/300kPA MAP sensors can be found in those...

  • Like 1

Share this post


Link to post
Share on other sites
B1ack_Mi16

Ok, I didn't write it just now. But the internal MAP sensor is only used as barometric sensor, so should suffice just fine for that.

I have a proper 3bar MAP sensor mounted at standard position in the 306 GTI inlet manifold :)

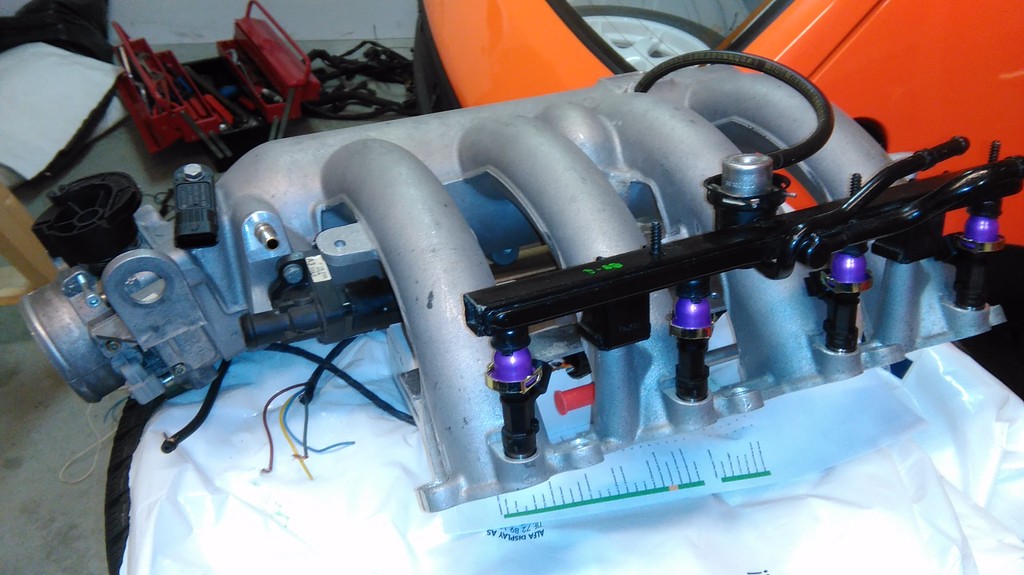

You see it here (still got the OEM look on the MAP sensor). Considering to shorten the fuel rail so I can remove the injector spacers/adaptors.


Edited by B1ack_Mi16

Share this post


Link to post
Share on other sites
petert

Why do you need to know barometric pressure as well as manifold pressure?

Share this post


Link to post
Share on other sites
B1ack_Mi16

Probably won't need it, but if one are to run engine on TPS in some situations it can be used to minor adjust the fuelling/ign.



Haven't really got a clue about mapping the MS3, so have no idea of how it works yet.



I already had the sensor, so chose just to put it in there in case it might prove to have a function :)

Edited by B1ack_Mi16

Share this post


Link to post
Share on other sites
johniban

Thats a bloody awesome idea with the ecu casing,

Share this post


Link to post
Share on other sites
B1ack_Mi16

It's win-win as the loom looks stock also as orginal 2.0 Mi16 loom is used as base, with some added wires :)

Share this post


Link to post
Share on other sites
wicked

Why do you need to know barometric pressure as well as manifold pressure?



The Atmospheric Pressure Sensor is used by the ECU to determine the air pressure of the ambient air in or around the vehicle. The ECU uses this input to adjust air/fuel ratio and ignition timing for changing altitude conditions (and thus density of the air entering the engine).





So for altitude compensation. On higher altitude the air contains also less oxygen. I know that the Audi S2/S4's run more boost at higher altitude to be able to deliver the same power as on low altitude. Kind of comfort thing, you don't require on a racer.

Share this post


Link to post
Share on other sites
B1ack_Mi16

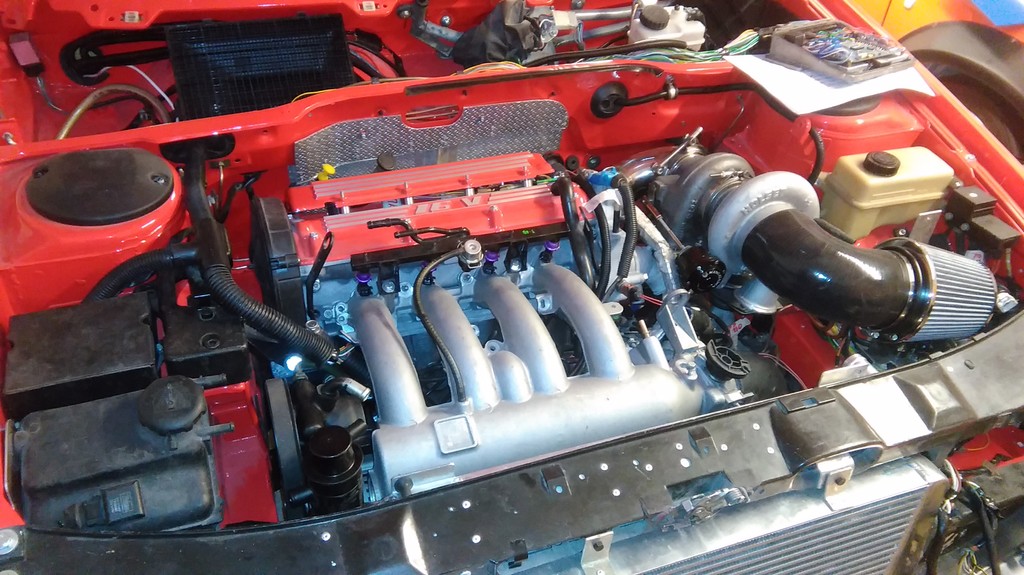

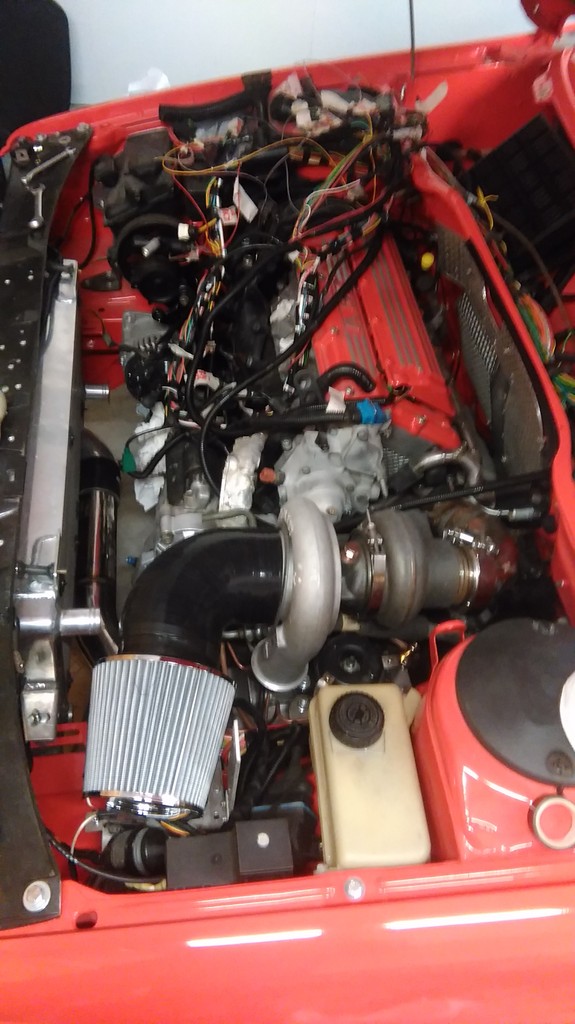

Air filter and 4" 90 deg silicone bend arrived today.



Working on adapting the cooling fan and lightning harness as the routing is a bit modified compared to orginal.

Some cut and splice of wiring required.




Share this post


Link to post
Share on other sites
johniban

Looks like its going to go some by the size of that turbo!

  • Like 1

Share this post


Link to post
Share on other sites
B1ack_Mi16

It's a Holset though, they are large for their capacity.

Don't think it'll provide to more than 400bhp max.



Some slow progress going on, nothing too interesting though.

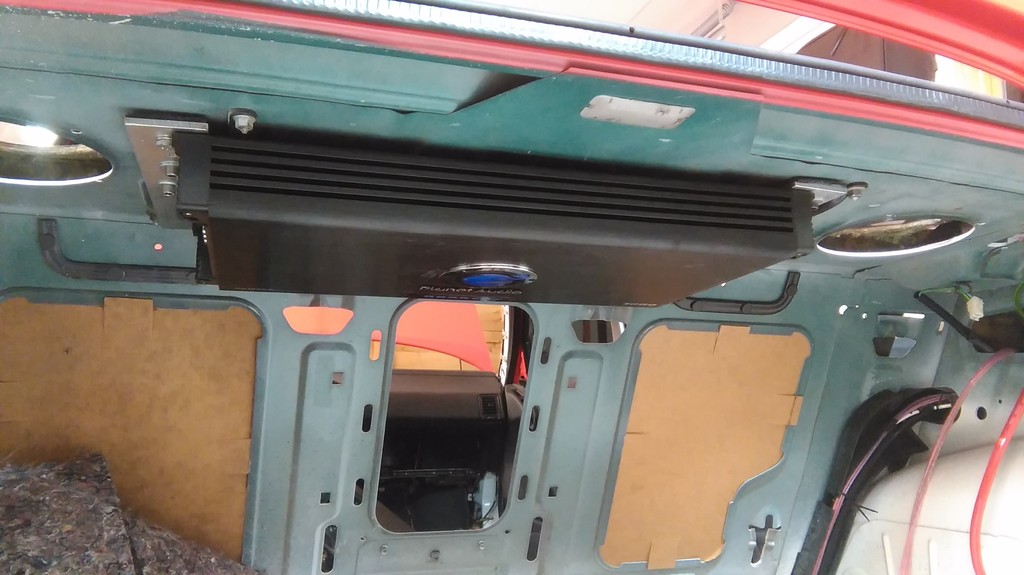

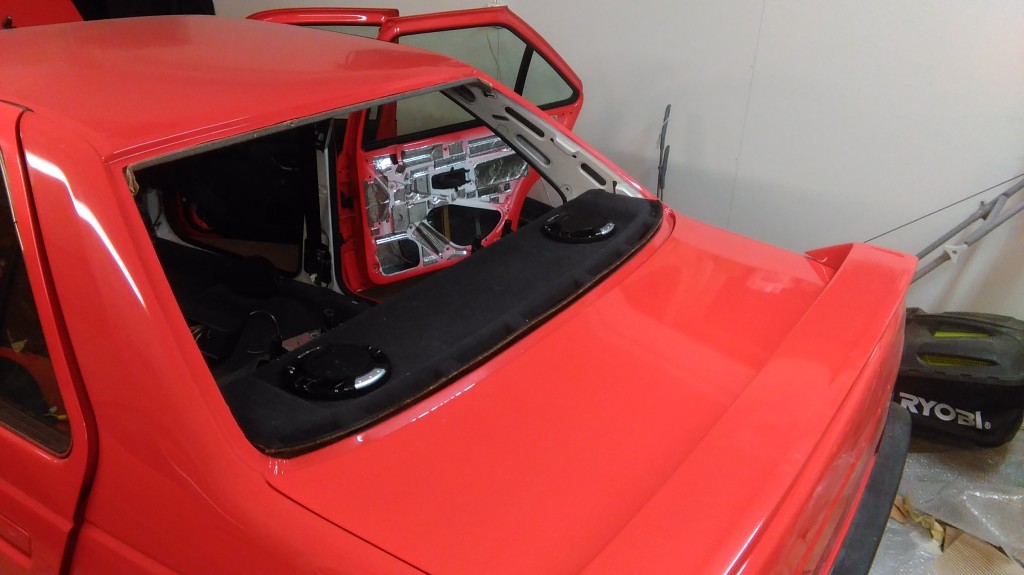

Mounted 5 channel amplifier.

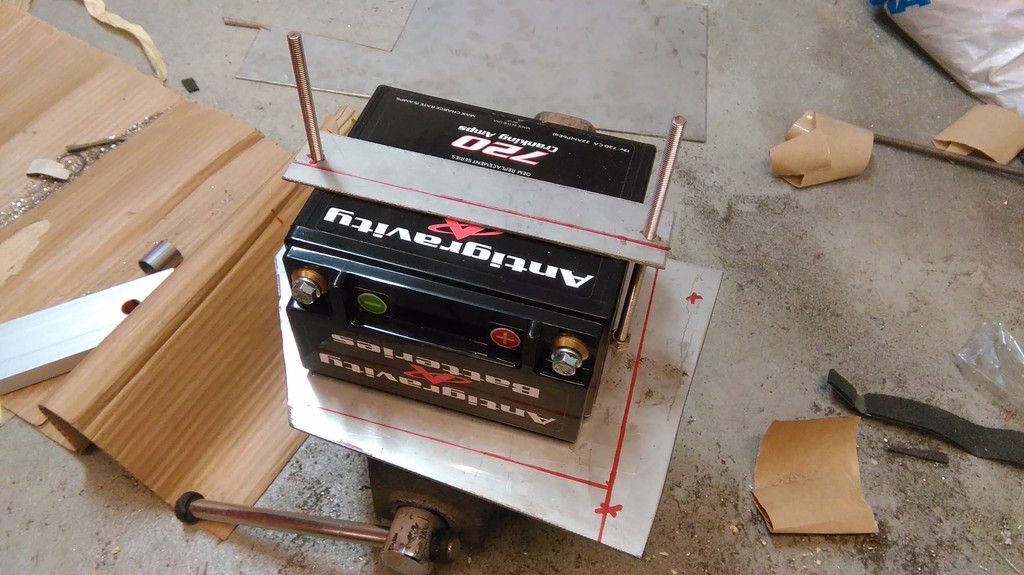

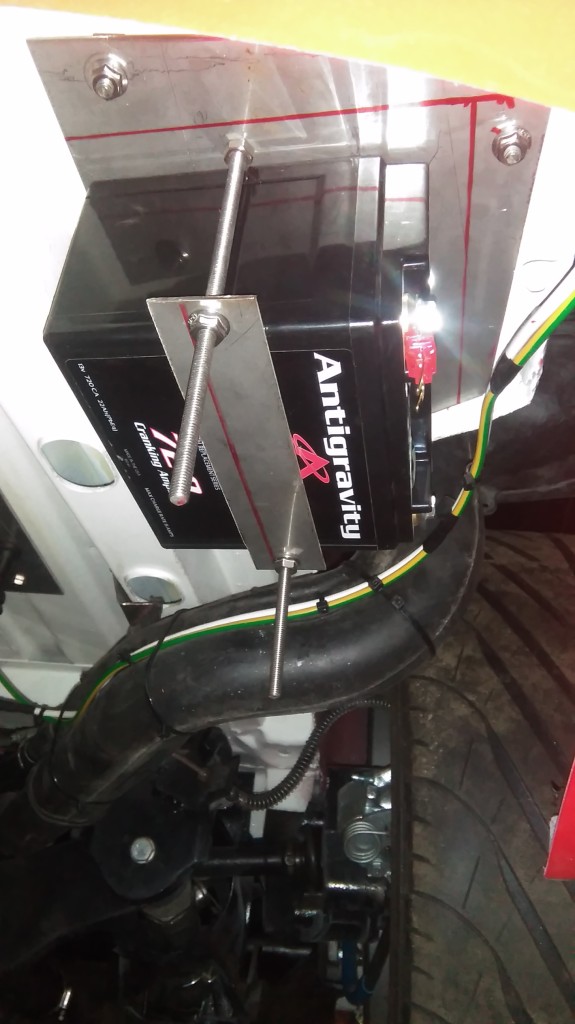

Making battery box, still unfinished, moving battery to under the boot.









Mounting rear speakers




And need to make a bracket for the USB / Minijack input for the CD-Player next to the wideband gauge.


Share this post


Link to post
Share on other sites
B1ack_Mi16

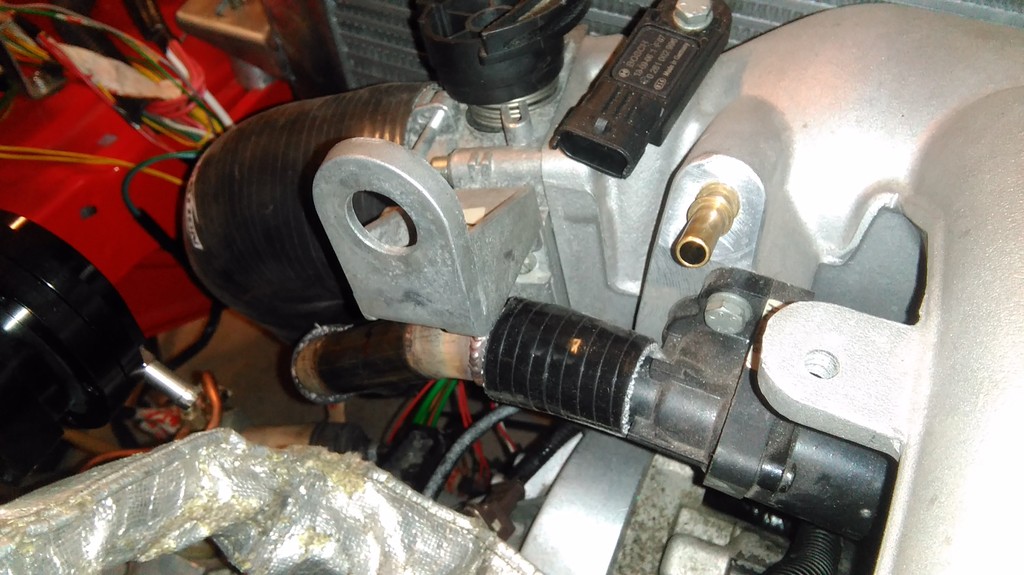

Welded on outputs to idle valve and dump valve on the 3" pipe to the throttlebody.



Dummyfitted piping to idle valve.

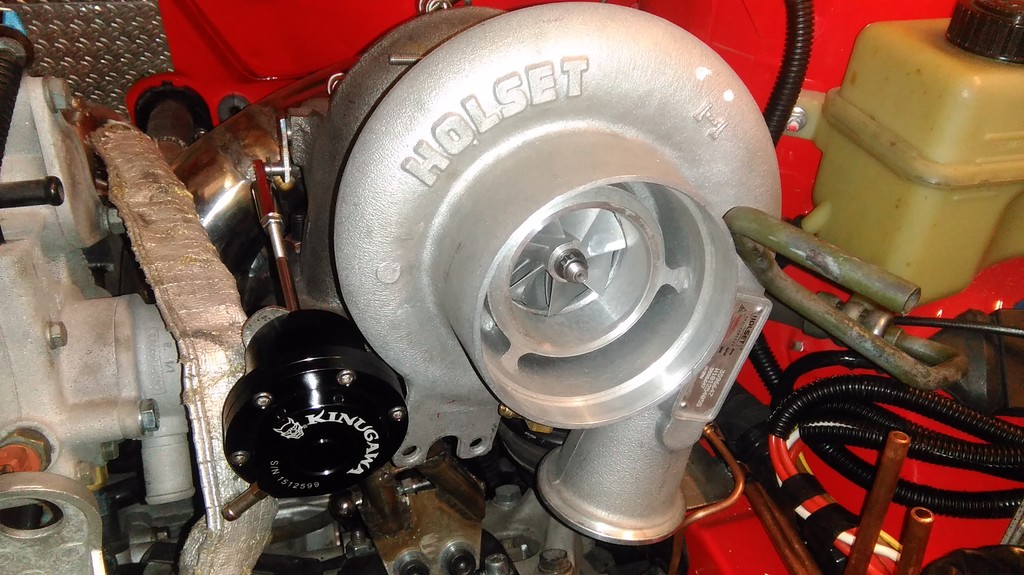

Also got an adjustable wastegate actuator for the Holset, hopefully this can control the boost pressure. If not I will have to change to an external wastegate solution.

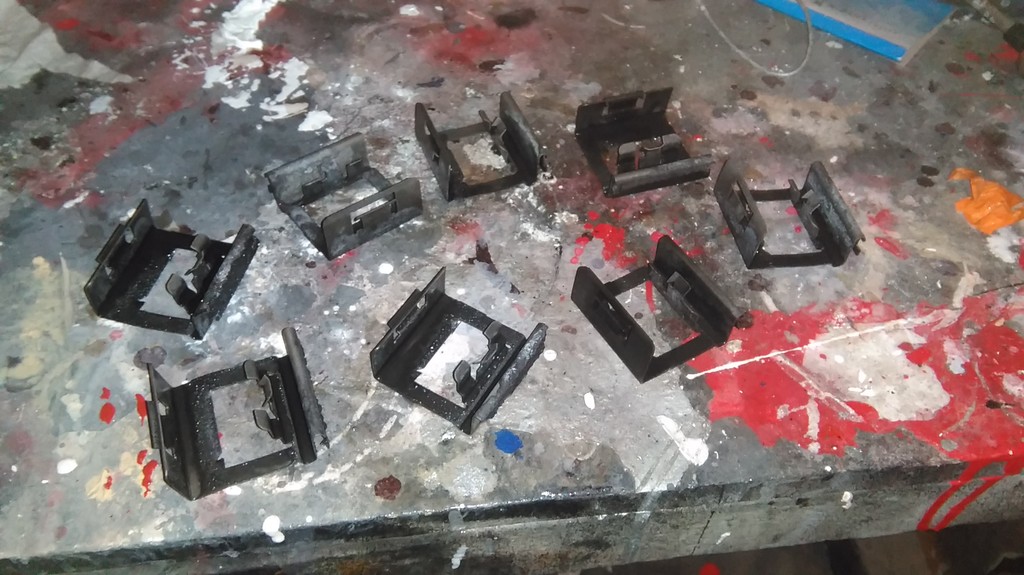

Sadly the carpet clips are NFP, so had to sandblast some rusty ones, quite bad condition some of them, have sprayed them in acid here, will add zink primer and paint afterwards.






Here's a small vid of testing of the stepper motor from the Megasquirt 3 Pro.



http://vid428.photobucket.com/albums/qq3/B1ackMi16/405T16/Wiring/VID_20160208_225616_zpsmzsynggq.mp4



I've also managed to get MAP and Baro sensors configured ok, and air and coolant temp and TPS works as they should.



Now I'm just struggling a bit with getting response from the flex fuel sensor. Might have wired it wrong... have to do some investigation.

Edited by B1ack_Mi16

Share this post


Link to post
Share on other sites
B1ack_Mi16

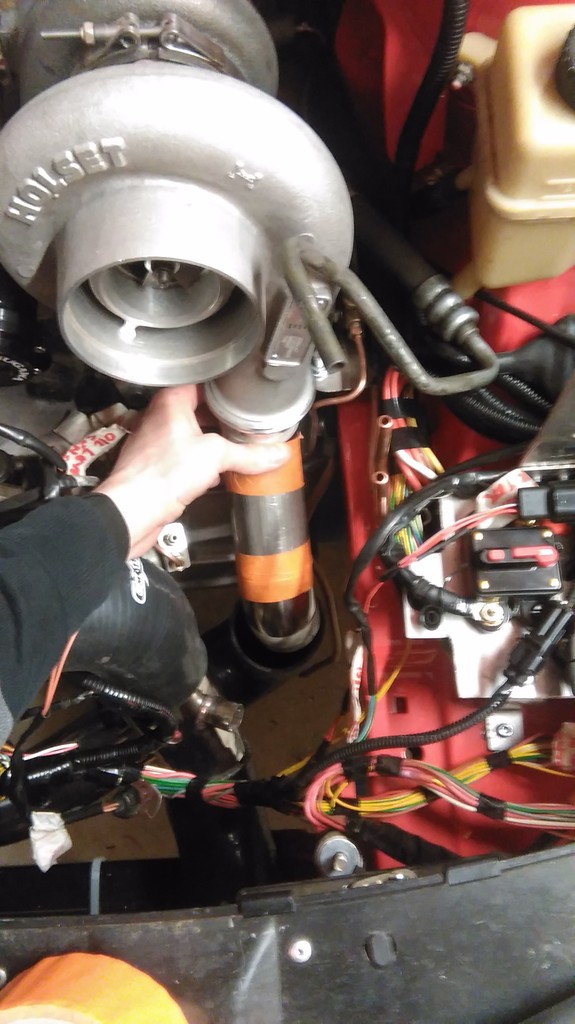

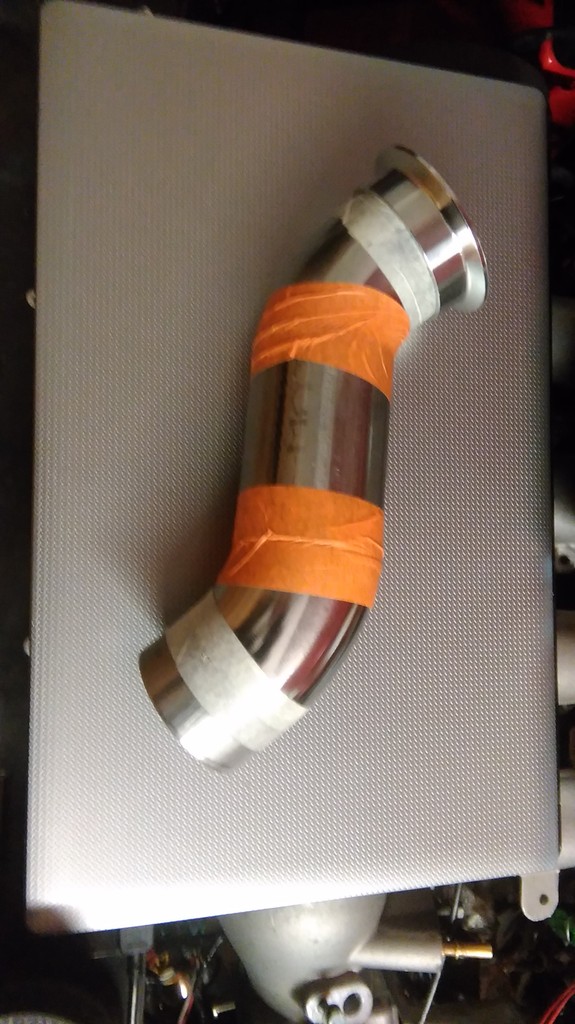

Got the stainless 45 deg bends and a straight section so mocked up the turbo outlet pipe today.



Need to get it to my mate for welding next.









Will also try to glue in the rear windscreen this weekend. Not sure how hard it can be... wink.png

Share this post


Link to post
Share on other sites
wicked

Are your hands that tiny or is that turbo so big...?? :blink:

Share this post


Link to post
Share on other sites
B1ack_Mi16

4" / 10cm inlet for the turbo. It is a bit big.



However I don't have particulary large hands.. rather small so might be a combination of both :)

Share this post


Link to post
Share on other sites
B1ack_Mi16

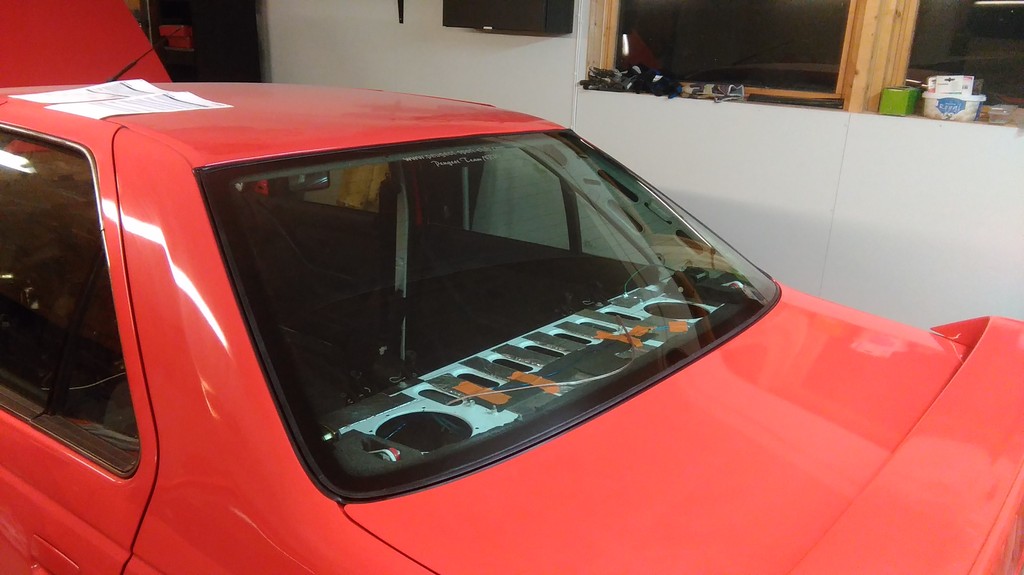

Managed to glue the rear windscreen into place this weekend. Now I just can pray it has a proper seal all way round, I got a bit short on the glue in the end :/




Share this post


Link to post
Share on other sites
B1ack_Mi16

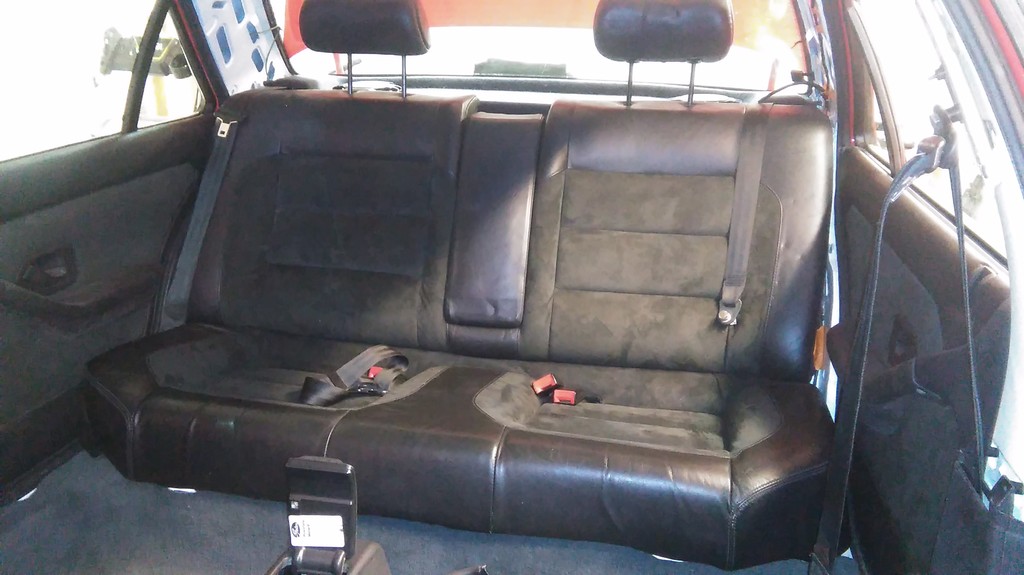

Mounted the oil-filler / breather tank yesterday, bottom left close to radiator.






Also put the rear seats in to clear some floor space, still missing plastic part around central arm rest, couldn't find it....




Share this post


Link to post
Share on other sites
B1ack_Mi16

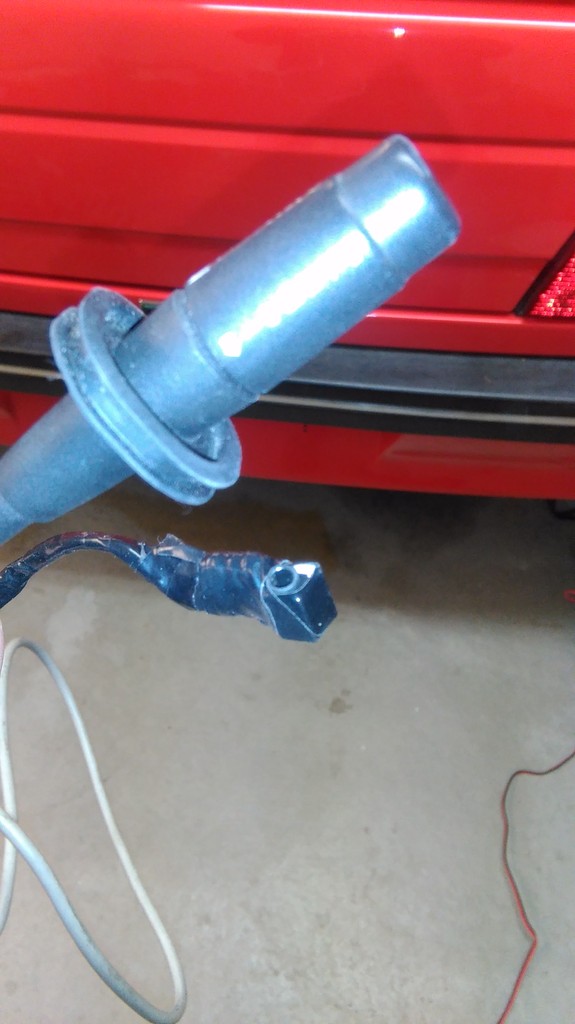

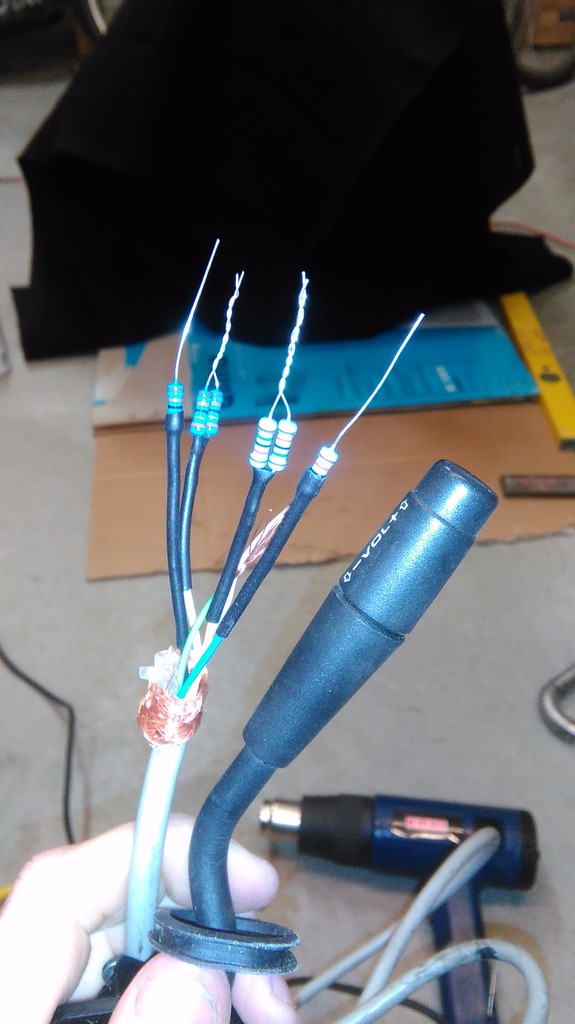

Managed to get the volume control stick working today as some resistors arrived in my mailbox :)




Finished with phono jack outlet.




Does anyone know if there exists more variants of this style radio remote stick? I would really like one with 1 extra function, to change source when pressing the stick in, like on the newer Peugeots.

Share this post


Link to post
Share on other sites
imaS

That looks quite similar than I have in 406. The functions are: volume = up/down, track change/radio search = front/back and lastly source/radio memory/CD change = twisting motions. Could you utilize that switch?

Edited by imaS

Share this post


Link to post
Share on other sites
B1ack_Mi16

Hm. Haven't tried to twist it. Maybe it activates two wires at the same time then?

Share this post


Link to post
Share on other sites
